NC325‐XD 2.8mm

NC325‐XD 2.8mm

New product

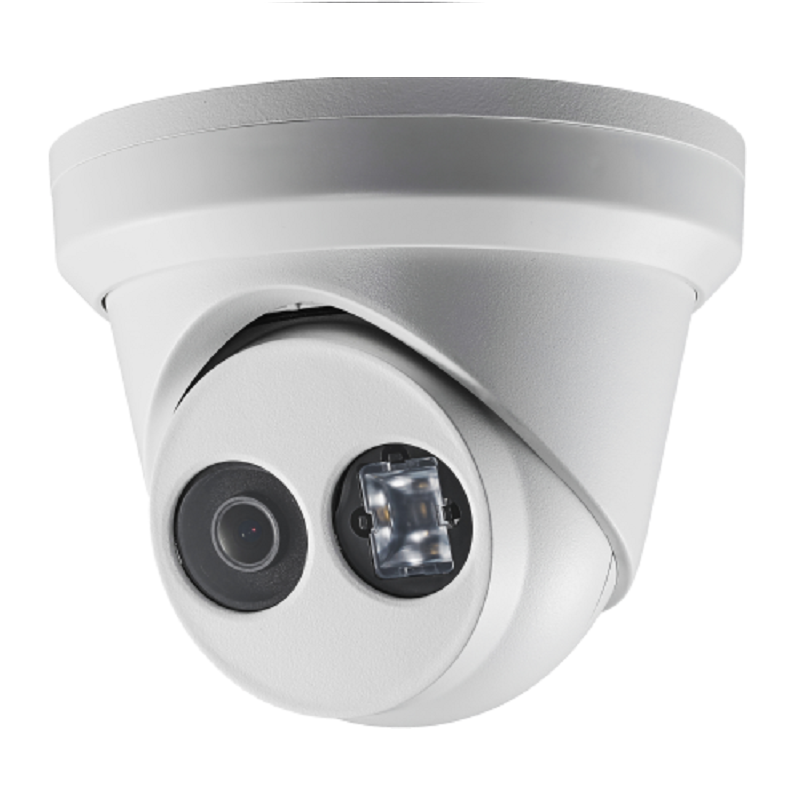

5 MP Network Turret Camera

  • Up to 5 megapixel high resolution
  • Max. 2560 × 1920 @20fps
  • 2.8 mm fixed
  • lens, optional
  • H.265, H.265+, H.264+, H.264
  • 120dB Wide Dynamic Range
  • 3D Digital Noise Reduction
  • 12 VDC & PoE (802.3af)
  • IR range: up to 30 m
  • Support on‐board storage, up to 128 GB
  • 3‐Axis Adjustment
  • IP67

Data sheet

NC325‐XD 2.8mm
Image Sensor 1/2.9" Progressive Scan CMOS
Electronic Shutter Speed 1/3 s to 1/100,000 s
Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
Video Bit Rate 32 Kbps to 16 Mbps
Power Supply 12 VDC ± 25%, 5.5 W PoE(802.3af, 42.5 – 57V, class 3), 7.5 W
Protection (General) IP67
Dimensions Camera: Φ 127.3 × 95.9 mm (5.01″ × 3.78″) Package: 150 × 150 × 141 mm (5.91″ × 5.91″ × 5.55″)
Weight Camera: 620 g (1.37 lb.)
Network Standards ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Network Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Lens 2.8 mm, horizontal field of view: 81°
Lens Mount M12
Day & Night IR cut filter
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
IR Range Up to 30 m
Max. Resolution 2560 × 1920
Digital Noise Reduction 3D DNR
Wide Dynamic Range 120dB
Image Settings Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
Day/night Switch Auto/Scheduled
Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
Video Compression Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
ROI Support 1 fixed region for mainstream and sub stream separately
Auto iris F2.0
Slow Shutter Support
General Function One-key Reset, Dual-VCA, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
3‐Axis Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
H.264+ Support
H.265 Type Main Profile
H.265+ Support
Behavior Analysis Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face Detection Human face appears in the image can be detected and trigger linkage method
Main Stream 50Hz: 20 fps (2560 × 1920), 25 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 ×720) 60Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 ×720)
Sub‐Stream 50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240)
Third Stream 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR
Line Crossing Detection Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported
Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal Detection Objects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage Detection Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
