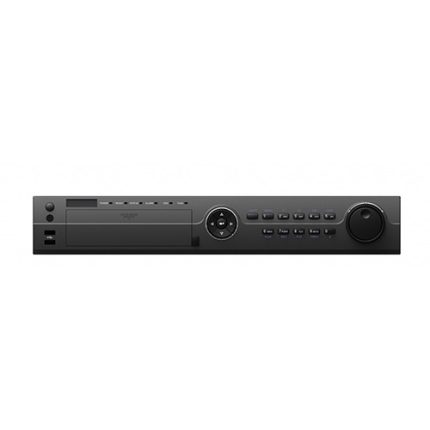

16 Channel NVR
16 Channel NVR
- 4K Network Video Recorder
- 16CH IP Video
- 16 Independent PoE Network Interfaces
- H.265, H.264+, H.264 Video Formats
- 3rd Party Network Cameras Supported
- Up To 12MP Resolution Recording
- Up To 160 Mbps Incoming Bandwidth
- 4 SATA Interfaces Up To 6TB Each HDD
- HDMI, VGA Outputs
| Alarm in/out |
4/16 channel |
|---|---|
| Audio output(video recorder) |
1-ch ,RCA (Linear ,1 KΩ) |
| Capability |
4-ch @ 4K ,or 16-ch @ 1080p |
| Capacity |
Up to 6TB capacity for each HDD |
| Chassis |
19-inch rack-mounted 1.5U chassis |
| Consumption (without hard disks) |
≤20 W (without enabling PoE) |
| CVBS Output |
1 BNC |
| Decoding format |
H.265/H.264/MPEG4 |
| Dimensions |
445 × 390 ×70 mm ( 17.5"× 15.3" × 2.8") |
| eSATA (optional) |
1 eSATA interface |
| HDMI output resolution |
4K (3840 × 2160)/60Hz ,4K (3840 × 2160)/30Hz ,1920 × 1080p/60Hz ,1600 × 1200/60Hz ,1280 × 1024/60Hz ,1280 × 720/60Hz ,1024 × 768/60Hz |
| Incoming bandwidth |
160 Mbps |
| Interface |
16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| IP Video Input |
16-ch Up to 12 MP resolution |
| Live View / Playback Resolution |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Network interface (video recorder) |
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Outgoing bandwidth |
256 Mbps |
| POE supported standard |
IEEE 802.3 af/at |
| Power |
≤300 W |
| Power (POE) |
≤200W |
| Power Supply |
100 to 240 VAC |
| Recording resolution |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Remote Connections |
128 |
| SATA |
4 SATA interfaces for 4HDDs |
| Serial Interface |
1 RS-485 (half-duplex) ,1 RS-232 |
| Synchronous Playback |
16-ch |
| Two-way audio |
1-ch ,RCA (2.0 Vp-p ,1kΩ) |
| USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| VGA output resolution |
1920 × 1080p/60Hz ,1280 × 1024/60Hz ,1280 × 720/60Hz ,1024 × 768/60Hz |
| Weight (without hard disks) |
≤ 5 Kg (11 lb) |
| Working humidity (video recorder) |
10 to 90 % |
| Working temperature (video recorder) |
-10 to +55ºC (14 to 131ºF) |
