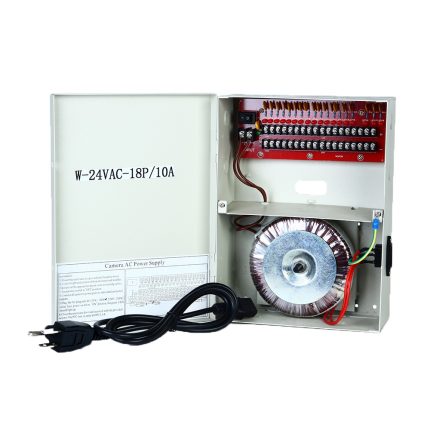

W-24VAC-18P10A 24VAC 10 Amps 18 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY
SKU:
W-24VAC-18P10A
Product Overview
The W-24VAC-18P10A is a robust distributed power solution designed to supply 24VDC to multiple surveillance cameras or CCTV devices. Featuring 18 independent channels, it delivers a total of 10A current while protecting each channel individually with PTC fuses. The unit includes surge protection and LED indicators for monitoring each channel’s status. Efficient heat dissipation and stable voltage output ensure reliable performance under continuous operation. Its input supports standard 110/120VAC, making it compatible with common power sources, while its terminal-based output allows flexible connection to multiple devices. This system is ideal for large-scale installations where reliability and channel-specific protection are critical.Key Features
- Multi-Channel Distribution: 18 separate channels with individual current control
- Overload & Surge Protection: Integral safeguards prevent damage to connected devices
- LED Status Indicators: Visual monitoring of power delivery for each channel
- Stable Voltage Output: 24VAC ±5% ensures consistent device performance
- High Current Capacity: 10A total output, 1.1A per channel
- Efficient Heat Dissipation: Natural cooling supports long-term operation
- Flexible Connections: Three-pin input socket with multi-channel screw terminal output
- Input Voltage: 110–120VAC, 60Hz
- Output Voltage: 24VAC ±5%
- Output Current: 10A total, 1.1A per channel
- Number of Channels: 18 independent channels
- Fuse Type: PTC 1.1A/60V per channel

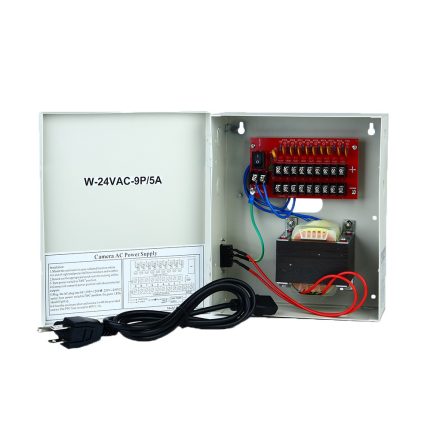

W-24VAC-9P5A 24VAC 5 Amps 9 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY
SKU:
W-24VAC-9P5A
Product Overview
The W-24VAC-9P5A is designed to supply stable 24VDC power across 9 independent channels for CCTV and surveillance systems. Each channel delivers 1.1A, protected by PTC fuses to prevent overload or short-circuit events. The system features integral surge protection and LED indicators to monitor channel status in real-time. Its input supports standard 110/120VAC power, and output connections use screw terminals for flexible deployment. With natural heat dissipation and robust overcurrent safeguards, it ensures continuous operation for small to medium-scale security installations. This solution is ideal where reliable multi-channel power distribution is required.Key Features
- Multi-Channel Power Delivery: 9 channels with individual current handling
- PTC Fuse Protection: Automatic recovery after short-circuit or overload
- Surge Protection: Guards sensitive CCTV equipment from voltage spikes
- LED Power Indicators: Quick visual check of channel status
- Stable 24VAC Output: Maintains ±5% voltage regulation under load
- Overcurrent & Short-Circuit Safety: Individual channel protection ensures continuity
- Flexible Connection Options: Three-pin input and 9-channel output terminals
- Input Voltage: 110–120VAC, 60Hz
- Output Voltage: 24VAC ±5%
- Output Current: 5A total, 1.1A per channel
- Number of Channels: 9 independent channels
- Fuse Type: PTC 1.1A/60V per channel

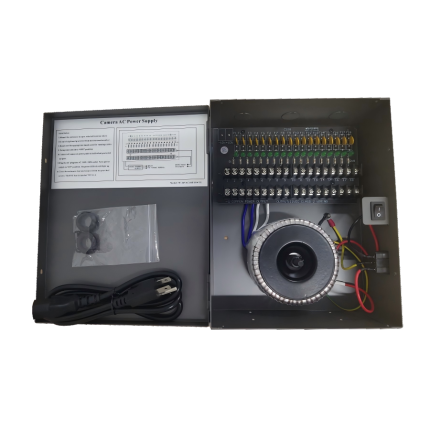

W-24VAC18P-10A UL 24V AC 10Amps 18-Channel Ul-Listed Power Supply
SKU:
W-24VAC18P-10A UL
Product Overview
The W-24VAC18P-10A is a high-performance UL-listed power supply designed for demanding CCTV installations. It converts standard 110–120V AC input into stable 24V AC output across 18 independent channels, each delivering up to 0.55A. Built with advanced surge and overload protection, it ensures continuous operation even in challenging conditions. Automatic short-circuit shutdown and restart protect both the power supply and connected devices. With efficiency greater than 80% and precise voltage regulation, this unit is perfect for large-scale surveillance setups that require consistent and reliable power distribution.Key Features
- Multi-Channel Distribution: 18 independent channels for versatile CCTV setups
- High Efficiency: >80% efficiency reduces energy loss
- Protection System: Short-circuit, overload, and surge protection
- Automatic Restart: Restores operation after fault conditions
- Stable Output: Voltage regulation ±5% under full load
- Professional Reliability: UL-listed for safety and compliance
- Optimized for CCTV: Supports long-term continuous surveillance operation
- Input Voltage: 110–120V AC
- Output Voltage: 24V AC ±5%
- Total Output Current: 10A (0.55A per channel)
- Channels: 18 independent channels
- Fuse Type: 1.1A PTC for safe operation

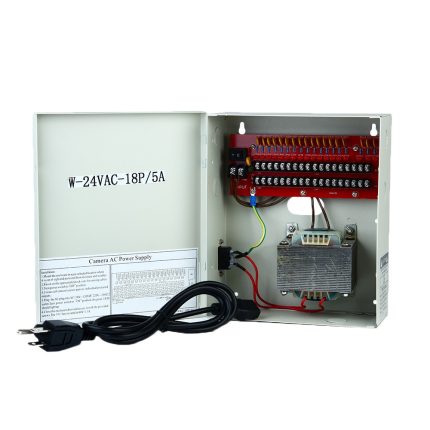

W-24VAC18P/5A 24VAC 5Amps 18 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY
SKU:
W-24VAC18P/5A
Product Overview
The W-24VAC18P/5A is a robust 18-channel power supply designed for professional CCTV networks. It converts standard 110–120V AC input into regulated 24V AC output, supporting a total current of 5A with a maximum of 1.1A per channel. Each channel features individual PTC protection and LED power indicators, ensuring safe operation under variable load conditions. With integrated surge protection and automatic response to faults, this unit maintains uninterrupted surveillance performance. Its natural heat dissipation design, combined with a three-pin socket input and multi-channel output, guarantees reliable operation for long-term deployments. Ideal for medium-scale surveillance systems requiring consistent and secure power distribution.Key Features
- Multi-Channel Support: 18 separate outputs for flexible CCTV setups
- Channel Protection: PTC fuse on each channel prevents overcurrent damage
- Surge & Short-Circuit Safeguards: Protects connected devices
- LED Power Indicators: Instant visual status for each channel
- Stable Output: Voltage regulation ±5% across all channels
- Reliable Operation: Natural heat dissipation for continuous performance
- Optimized for Surveillance: Ensures consistent power for 24/7 camera operation
- Input Voltage: 110–120V AC, 60Hz
- Output Voltage: 24V AC ±5%
- Total Output Current: 5A (1.1A per channel)
- Channels: 18 independent channels
- Fuse Type: 1.1A PTC per channel

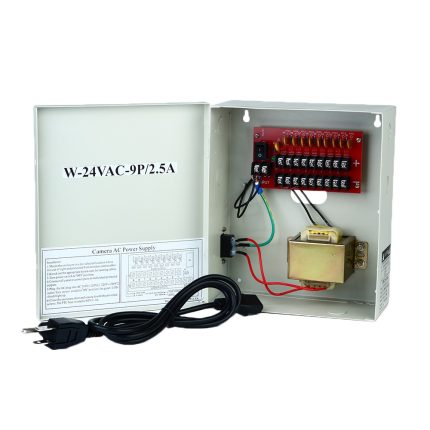

W-24VAC9P/2.5A 24VAC 2.5Amps 9 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY
SKU:
W-24VAC9P/2.5A
Product Overview
The W-24VAC9P/2.5A is a high-efficiency 9-channel power supply engineered for professional CCTV installations. Operating from standard 110–120V AC input, it provides a regulated 24V AC output with 2.5A total current, supporting up to 1.1A per channel. Each channel is individually protected with PTC fuses and includes LED indicators for quick visual monitoring. Integrated surge and short-circuit protection ensures connected devices remain safe under varying loads. With natural heat dissipation and a three-pin input socket, this power supply guarantees reliable performance for long-term surveillance operation. It is ideally suited for small to mid-scale security camera networks requiring consistent and safe power distribution.Key Features
- Multi-Channel Output: 9 separate channels for flexible CCTV deployment
- Channel Safety: PTC fuse per channel prevents overcurrent damage
- Surge & Short-Circuit Protection: Safeguards connected cameras
- LED Indicators: Real-time status display for each channel
- Stable Voltage: Maintains 24V AC ±5% under load
- Continuous Reliability: Natural heat dissipation for extended operation
- Optimized for Surveillance: Delivers steady power for uninterrupted camera function
- Input 110/120 VAC
- Output 24V DC，9channels
- 2.5 Amp Supply Current
- Integral Surge Protection
- Individual LED Power Indication
- Individual PTC Output Protection
- Max. Amp: 1.1Amp/ch
