NETWORK CAMERAS

Product Overview

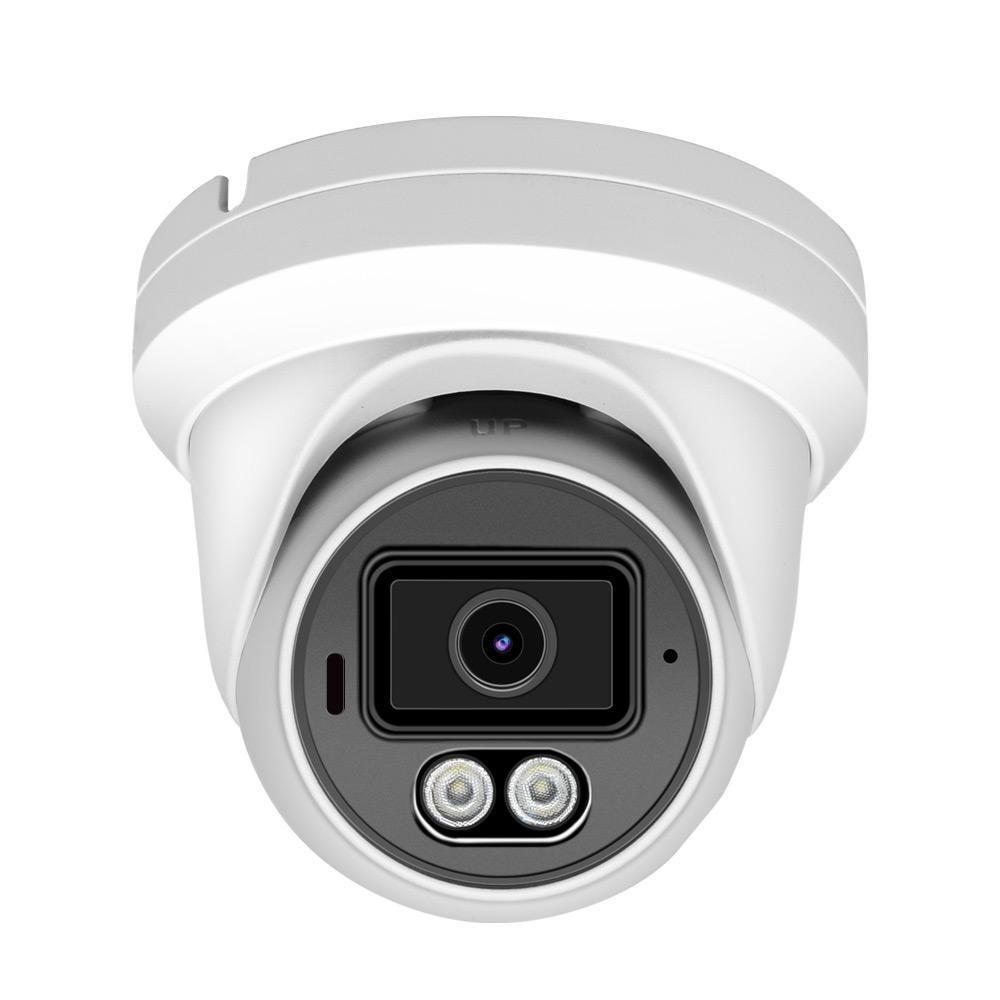

The WNC4118-XD/LIU is an 8MP dual-light full-color turret network camera designed for high-resolution surveillance and reliable outdoor monitoring. Powered by a 1/2.7" high-sensitivity CMOS sensor, the camera captures detailed 4K video up to 3840 × 2160 at 20fps. Its dual-light system combines infrared and warm light illumination, enabling clear night imaging with improved visibility in low-light environments. Advanced image processing technologies including 3D-DNR, D-WDR, BLC, and AWB help deliver balanced and noise-reduced images in challenging lighting conditions. The camera also integrates a built-in microphone for real-time audio capture. With RTSP and ONVIF Profile S support, it easily integrates with many third-party NVRs and CMS platforms. Remote monitoring is simplified through P2P cloud services and multi-browser access. The rugged IP66 housing and PoE capability make it suitable for stable outdoor deployment.

Key Features

• 8MP Ultra HD Surveillance: Delivers high-resolution 3840 × 2160 video for detailed monitoring
• Dual-Light Night Imaging: Combines IR and warm light to maintain visibility in low-light environments
• Efficient Video Compression: H.265/H.264 encoding reduces bandwidth and storage requirement
• Integrated Audio Recording: Built-in microphone captures synchronized sound with video
• Smart Image Processing: 3D-DNR, D-WDR, BLC and IR-CUT improve clarity in complex lighting scenes
• Flexible System Compatibility: ONVIF Profile S and RTSP support integration with many NVR systems
• Remote Access & Alerts: P2P cloud service with alarm snapshot upload to Email or FTP

Key Specifications

• Image Sensor: 1/2.7" High-Sensitivity CMOS
• Max Resolution: 3840 × 2160 (8MP) @ 20fps
• Lens: 2.8mm F1.6 fixed lens
• Night Lighting: Dual light (IR 25m / Warm light 20m)
• Power Supply: 12V DC ±10% / PoE, Max consumption < 8W
