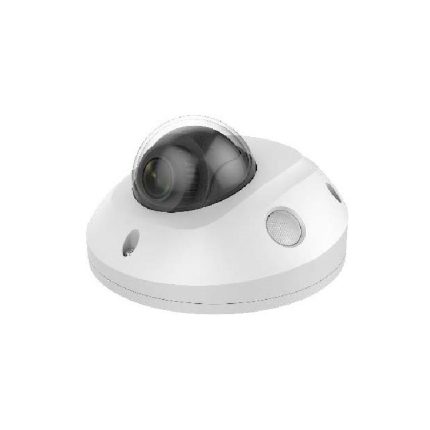

6 MP IR Fixed Mini Dome Network Camera

SKU: NC326-WDC 2.8mm Categories: NETWORK CAMERAS, WINIC

3072 × 2048@20fps
IR: Up to 10 m
H.265+. H.265
120dB WDR
Built-in MicroSD/SDHC/SDXC slot, up to 128G
PoE
Wi-Fi
BLC/3D DNR/HLC/ROI
Color: 0.01 Lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR

3‐Axis Adjustment	Pan: -30° to +30° , tilt: 0° to 75° , rotate: 0° to 360°
Alarm	1 Input: Alarm in , 1 Output: Alarm out (max. 12 VDC , 30 mA) , terminal block
Alarm Trigger	Motion detection , video tampering , network disconnected , IP address conflict , HDD full , HDD error , illegal login
API	ONVIF (PROFILE S , PROFILE G) , ISAPI
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Audio Compression	G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Interface	2 Inputs: line in or mic in (built-in microphone) , 1 output: line out , mono sound , terminal block
Audio Sampling Rate	16 kHz , 32kHz , 44.1kHz , 48kHz
Behavior Analysis	Line crossing detection , intrusion detection
Channel Bandwidth	20M/40M
Client	CMS , Guarding vision
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Day & Night	IR Cut Filter
Day/night Switch	Auto/Schedule/Day/Night/Triggered by Alarm In (-S)
Digital Noise Reduction	3D DNR
Dimensions	Φ110 mm × 56.4 mm (Φ4. 3" × 2.2")
Electronic Shutter Speed	1/3 s to 1/100 , 000 s
Environment Noise Filtering	Yes
Face Detection	Yes
Focal Length	Pan: -30° to +30° , tilt: 0° to 75° , rotate: 0° to 360°
FOV	2.8 mm , Horizontal field of view: 97° , Vertical field of view: 67° , Diagonal field of view: 121°
Frequency Range	2.412 GHz to 2.4835 GHz
General Function	One-key reset , anti-flicker , three streams , heartbeat , mirror , password protection , privacy mask , watermark , IP address filter
H.264 Type	Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Image Enhancement	BLC/3D DNR/HLC
Image Sensor	1/2.9" Progressive Scan CMOS
Image Settings	Rotate mode , saturation , brightness , contrast , sharpness adjustable by client software or web browser
IR Range	Up to 10 m
Lens Mount	M12
Main Stream	50Hz: 20 fps (3072 × 2048 , 3072 × 1728 , 2944 × 1656) , 25 fps (2560 × 1440 , 1920 × 1080 , 1280 × 720) 60Hz: 20 fps (3072 × 2048 , 3072 × 1728 , 2944 × 1656) , 30fps (2560 × 1440 , 1920 × 1080 , 1280 × 720)
Material	Front cover: plastic , Bottom base: metal
Max Aperture	F2.0
Max. Resolution	3072 × 2048
Min. Illumination	Color: 0.01 Lux @ (F1.2 , AGC ON) , 0.028 lux @(F2.0 , AGC ON) , 0 lux with IR
Network Protocols	TCP/IP , ICMP , HTTP , HTTPS , FTP , DHCP , DNS , DDNS , RTP , RTSP , RTCP , PPPoE , NTP , UPnP™ , SMTP , SNMP , IGMP , QoS , IPv6
Network Storage	Support Micro SD/SDHC/SDXC card (128G) , local storage and NAS (NFS , SMB/CIFS) , ANR
On-Board Storage	Built-in Micro SD/SDHC/SDXC slot , up to 128G
Operating Conditions	-30 °C to +60 °C (-22 °F to +140 °F) , Humidity 95% or less (non-condensing)
Power Consumption	12 VDC , 0.7A , max. 8.5W , Φ 5.5mm coaxial plug power PoE (802.3af , 36V to 57V) , 0.3 A to 0.1 A , max. 10W
Power Supply	12 VDC ± 25% , PoE (802.3af , class 3)
Protection	IK08 , IP66
Protocols (Wireless)	802.11b: DQPSK , DBPSK , CCK 802.11g/n: OFDM /64-QAM , 16-QAM , QPSK , BPSK
Region of Interest	Support 1 fixed region for main stream and sub-stream separately
Security (Wireless)	WPA , WPA2
Simultaneous Live View	Up to 6 channels
Slow Shutter	Yes
Sub‐Stream	50Hz: 25fps (640 × 480 , 640 × 360 , 320 × 240) 60Hz: 30fps (640 × 480 , 640 × 360 , 320 × 240)
SVC	Support H.264 and H.265 encoding
Third Stream	50Hz: 25fps (1280 × 720 , 640 × 360 , 352 × 288) 60Hz: 30fps (1280 × 720 , 640 × 360 , 352 × 240)
Transfer Rates	11b: 11Mbps , 11g: 54Mbps , 11n: up to 150Mbps
User/Host Level	Up to 32 users 3 levels: Administrator , Operator and User
Video Bit Rate	256 Kbps to 16 Mbps
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Wavelength	850nm
Web Browser	IE8+ , Chrome 31.0-44 , Firefox 30.0-51 , Safari 8.0+
Weight	Camera: Approx. 400 g (0.9 lb.)
Wide Dynamic Range	120dB
Wireless Range	50 m
Wireless Standards	IEEE 802.11b/g/n
Camera Style	Dome
