Product Overview

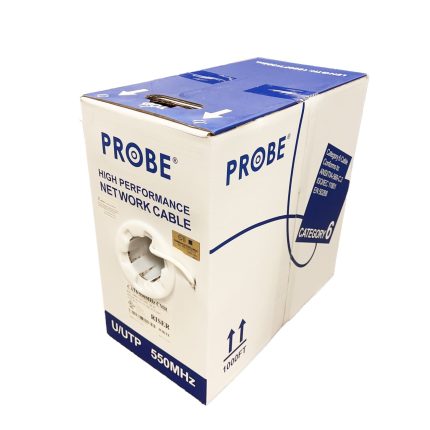

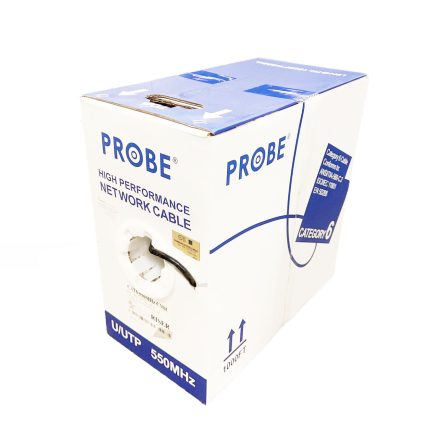

The C6BC1000UL-CMP is a premium Cat6 plenum-rated network cable engineered for high-performance Ethernet and telecommunication applications. Featuring 4 unshielded twisted pairs of solid 23AWG copper, it delivers consistent signal quality with low attenuation. The CMP-rated plenum jacket makes it safe for installation in air-handling spaces, reducing fire risk and smoke generation. FEP insulation maintains signal integrity even in high-frequency data transmissions, supporting up to 550 MHz bandwidth. Fully UL listed and compliant with international standards, this cable is suitable for structured cabling in commercial buildings. Its durable construction ensures long-term reliability in demanding indoor environments. Packaged in a 1000ft pull box, it is convenient for large-scale installations and network expansion.

Key Features

• Plenum-Rated CMP Jacket: Fire-resistant and safe for air-handling spaces
• High-Frequency Support: Up to 550 MHz for fast, reliable data transmission
• Solid 23AWG Copper Conductors: Ensures minimal signal loss and high performance
• Unshielded Twisted Pair Design: Standard Cat6 connectivity
• FEP Insulation: Maintains signal integrity and reduces cross-talk
• UL Listed: Certified for commercial and office building installations
• 1000ft Pull Box Packaging: Streamlines deployment for large cabling projects

  Key Specifications

• Category Type: Cat6, unshielded twisted pair (U/UTP)
• Conductor Material: Solid bare copper, 23AWG
• Jacket Rating: Plenum (CMP)
• Insulation Material / Sheath Thickness: FEP, 0.4 ± 0.05 mm
• Compliance & Standards: UL Listed, ISO/IEC11801, TIA-568-C.2, YD/T1019
