Product Overview

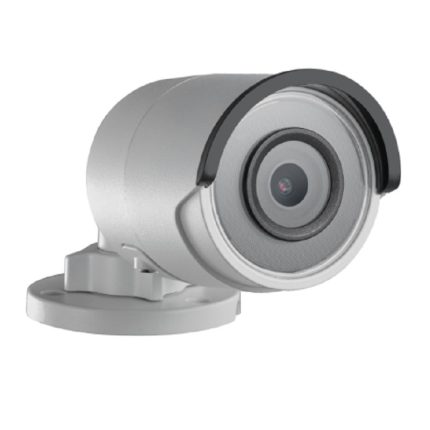

The NC326-MB is a 6 MP IR fixed bullet network camera designed for high-definition surveillance in challenging environments. With 3072 × 2048 resolution, 120 dB WDR, and built-in audio, it delivers clear video and reliable monitoring. Advanced analytics including line crossing and intrusion detection enhance security management.

Key Features

• 6 MP High-Definition Imaging: Provides sharp video with 3072 × 2048 resolution at 20 fps for detailed monitoring.
• 120 dB WDR Technology: Ensures clear imaging in high-contrast and backlit environments.
• IR Night Monitoring: Infrared illumination with up to 30 m range for low-light surveillance.
• Smart Behavior Analysis: Supports line crossing and intrusion detection to identify security events accurately.
• Built-in Storage Support: Includes a microSD/SDHC/SDXC card slot, up to 128 GB for local recording.
• Advanced Image Enhancement: BLC, 3D DNR, and ROI improve video quality in various lighting conditions.
• Flexible Installation: 3-axis adjustment (pan, tilt, rotate) allows precise camera positioning.

Key Specifications

• Image Sensor: 1/2.9" Progressive Scan CMOS
• Max. Resolution: 3072 × 2048
• Lens: 4 mm Fixed Lens, M12 Mount
• Protection: IP67
• Power Supply: 12 VDC ±25% or PoE (802.3af, max. 7.5 W)

Product Overview

The 6MP IR Fixed Dome Network Camera NC326-TD combines high-resolution imaging with intelligent analytics to deliver reliable surveillance for indoor and outdoor environments. Featuring a 1/2.9" progressive scan CMOS sensor, it records 3072 × 2048 video at 20 fps with exceptional clarity, even in low-light conditions thanks to 0.01 lux color sensitivity and built-in IR up to 30 m. The camera supports H.265+/H.265/H.264+ compression for efficient storage and bandwidth, and 120 dB WDR ensures balanced images in high-contrast scenes. Advanced smart detection includes line crossing, intrusion detection, and face detection, while BLC, 3D DNR, and ROI optimize image quality. With edge storage support up to 128 GB and ONVIF compatibility, this dome camera is ideal for professional IP surveillance deployments.

Key Features

• 6 MP High-Definition Imaging: Captures detailed 3072 × 2048 video, providing clear identification of people and objects.
• Smart Analytics: Supports line crossing detection, intrusion detection, and face detection for proactive security alerts.
• Enhanced Low-Light Performance: Color visibility at 0.01 lux, with IR illumination up to 30 m for reliable night-time monitoring.
• Wide Dynamic Range: 120 dB WDR ensures balanced exposure in areas with strong lighting contrasts.
• Advanced Video Compression: H.265+ / H.265 / H.264+ / H.264 reduces storage needs while maintaining high image quality.
• Edge Storage and Compatibility: Built-in MicroSD/SDHC/SDXC slot up to 128 GB, with ONVIF support for flexible integration.
• Image Optimization: Features BLC, 3D DNR, and ROI to minimize noise and enhance clarity in challenging conditions.

  Key Specifications

• Image Sensor: 1/2.9" Progressive Scan CMOS
• Maximum Resolution: 3072 × 2048 @ 20 fps
• Video Compression: H.265+, H.265, H.264+, H.264
• Storage: MicroSD/SDHC/SDXC slot, up to 128 GB
• Protection: IP67, IK10
