HD-TVI SOLUTIONS

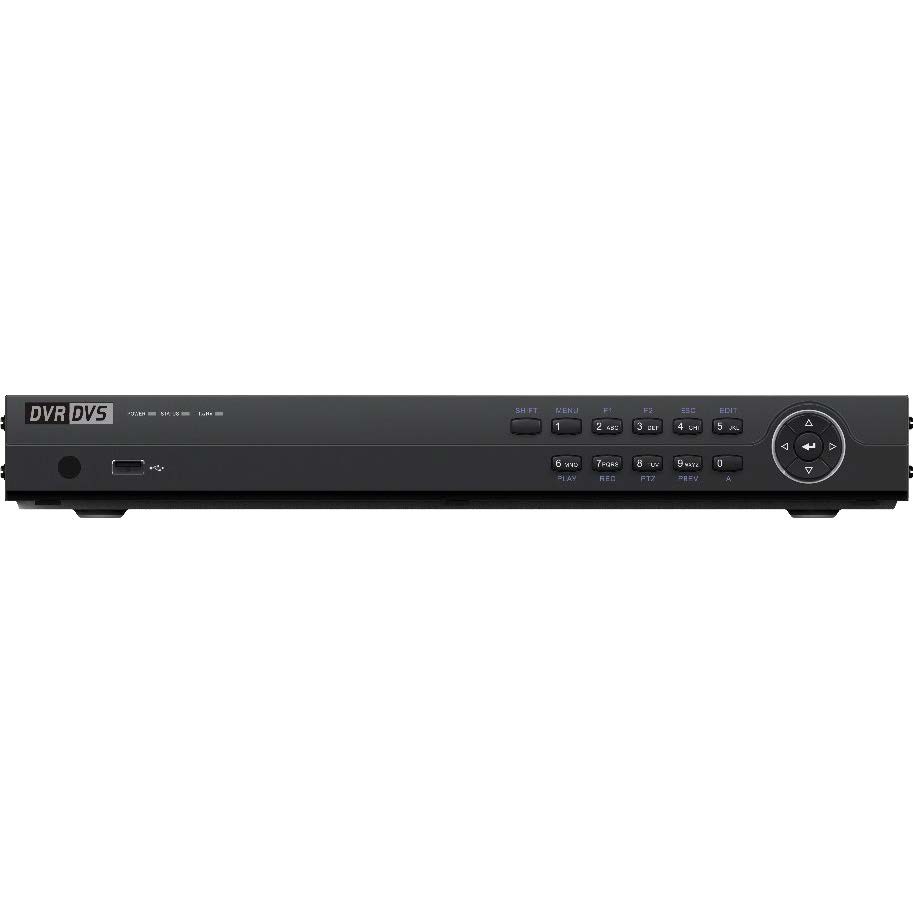

Video Input and Transmission

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 2‐ch 8 MP IP cameras input
• 8 MP/5 MP/4 MP HDTVI video input and live view
• Defogging function enabled for the supported analog cameras
• Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Compression and Recording

• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub‐stream of analog cameras
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Full channel recording at up to 8 MP resolution

Video Output

• Simultaneous HDMI/VGA output
• HDMI output at up to 4K (3840 × 2160) resolution
• Separate CVBS output

Storage and Playback

• 1 SATA interfaces (up to 8 TB capacity per HDD)
• 8‐ch synchronous playback
• Smart search for efficient playback
• Support the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Support line crossing detection and intrusion detection of all channels, and 2‐ch sudden scene change detection
• VCA information overlay in live view and smart playback
• VQD (Video Quality Diagnostics)
• Support PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

• GuardingVision & DDNS (Dynamic Domain Name System) for easy network management
• 1 RJ45 10M/100M/1000M self‐adaptive Ethernet interface
• Output bandwidth limit configurable

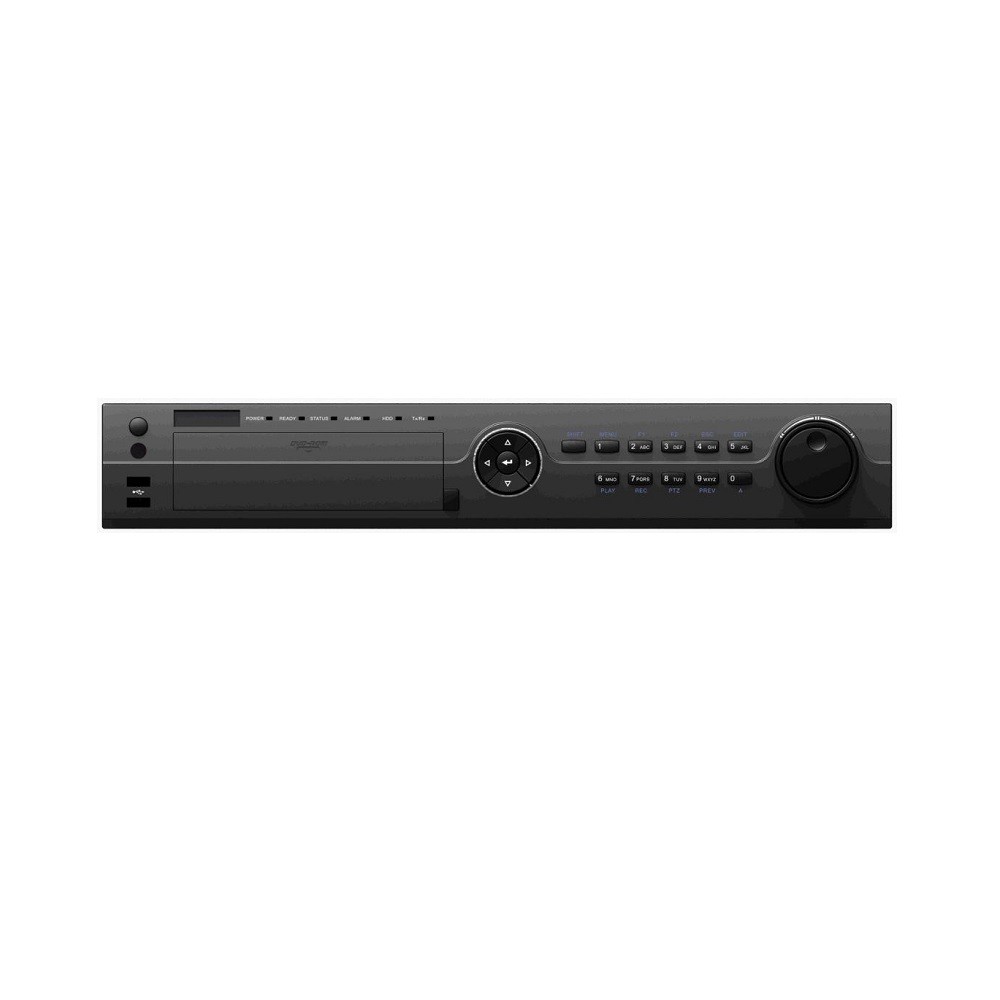

• Up to 32-ch analog camera inputs and 4 SATA interfaces
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
• Up to 8 MP@8 fps/5 MP@12 fps encoding capability
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Up to 64-ch network camera inputs
• POS triggered recording and POS information overlay
• RAID 0, 1, 5, 6, 10 for even more reliable data storage, effectively avoids data loss risks
