INTERCOM AND ACCESS CONTROL

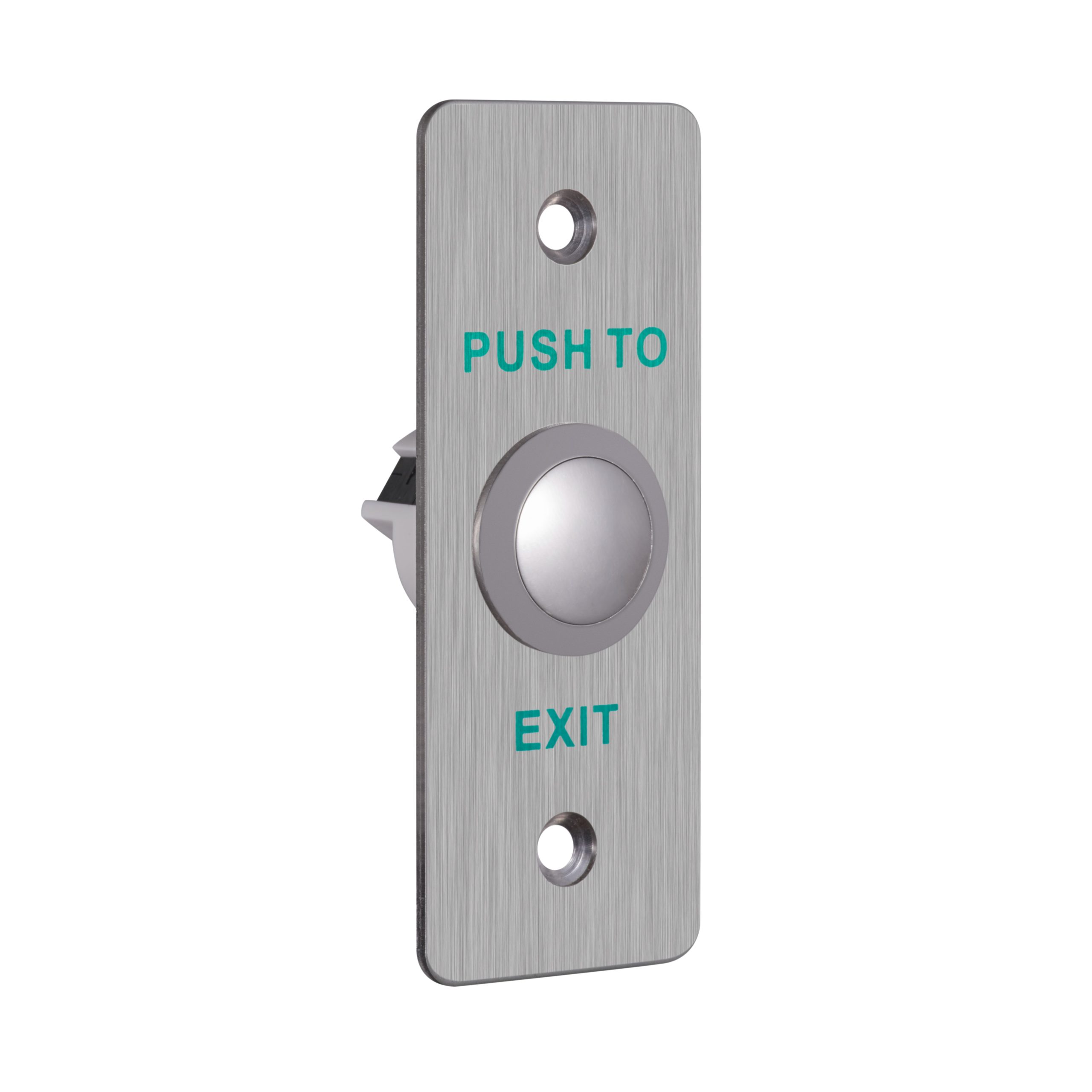

Aluminum Alloy Panel metal Exit Button

SKU: AC100-P2
  • Dimension (L×W×H): 90 mm × 35 mm × 28.9 mm (3.54" × 1.38" × 1.14").
  • Structure: Aluminum alloy panel, metal button.
  • Current Rating: Max. 3 A@36 VDC.
  • Output Contact: NO/NC/COM contact.
  • Aging Test: Already passed 500 thousand times aging test.
  • Suitable Doors: Hollow doorframe and embedded-electric box.
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F).
  • Working Humidity: 0 to 95% (relative humidity).
  • Panel: aluminum panel with sandblast.
  • Product Weight: 0.20 kg (0.44 lb).

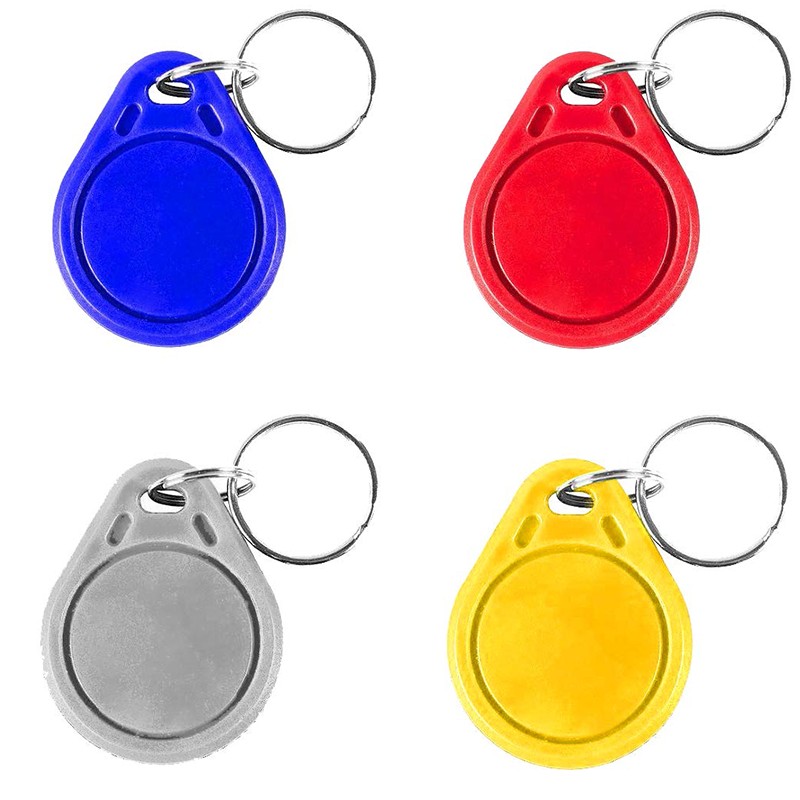

Contactless Smart Card Fob Key For Intercom

SKU: AC100-Y3
  • Material ABS and PVC, ultrasonic welding
  • Compact and durable
  • Reading and writing distance: 5 - 10 cm
  • Operating frequency 13.56 MHz
  • Dimensions: 41 × 32 × 3.5 mm
  • Working temperature: -10 ° C to + 50 ° C
  • IP67

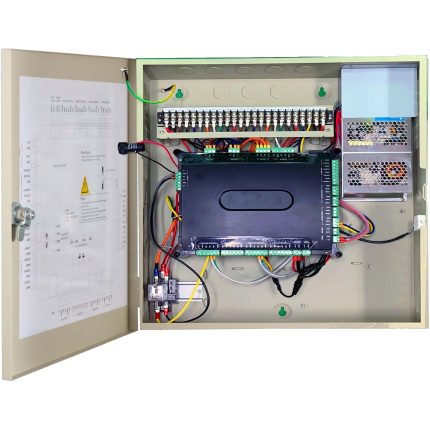

Double-door Access Controller

SKU: AC602-DAC
  • AC602-DAC access controller is designed with latest structure with TCP/IP and RS485 communication interface.
  • The communication data is encrypted to improve the security of system.
  • The controller also supports offline operation and is designed with tamper-proof switch.

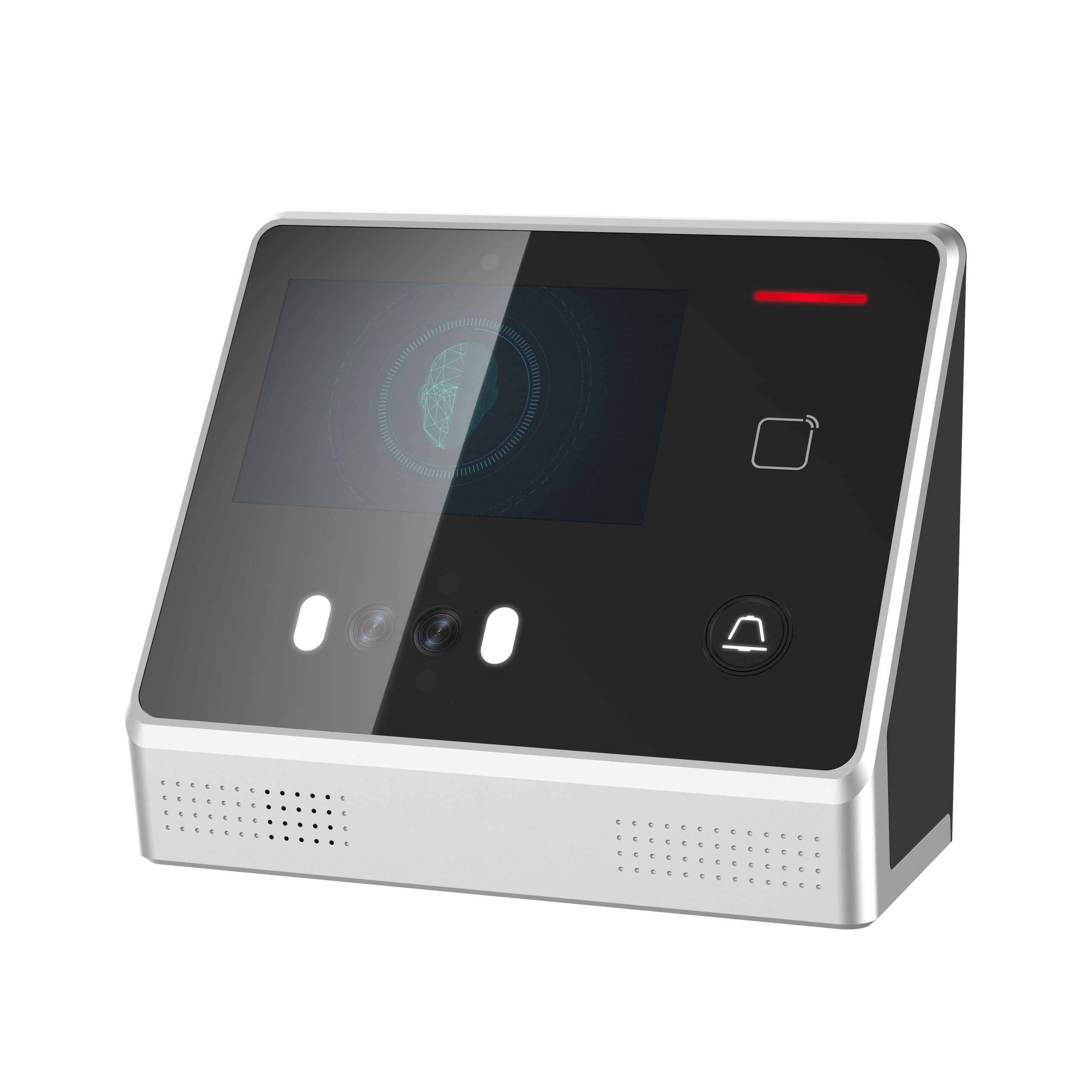

Face Recognition Terminal

SKU: AC605M-FRT
  • Wall mounting and base mounting
  • 5-inch LCD touch screen to display operation interface, etc.
  • 0.3 MP wide-angle lens
  • Standard definition
  • Face recognition distance: 0.3 m to 1 m
  • Live face detection
  • High performance processor with deep learning algorithm
  • 3200 face capacity and 5000 fingerprint capacity
  • Multiple authentication modes
  • Accurate and fast face recognition function. The face recognition duration is no more than 1 s per person and the face recognition accuracy rate is more than 99%
  • Applies data to the device via TCP/IP or uploading data to the device via the USB flash drive
  • Stand-alone operation
  • Multiple languages supported: English, Thai, Spanish, and Arabic

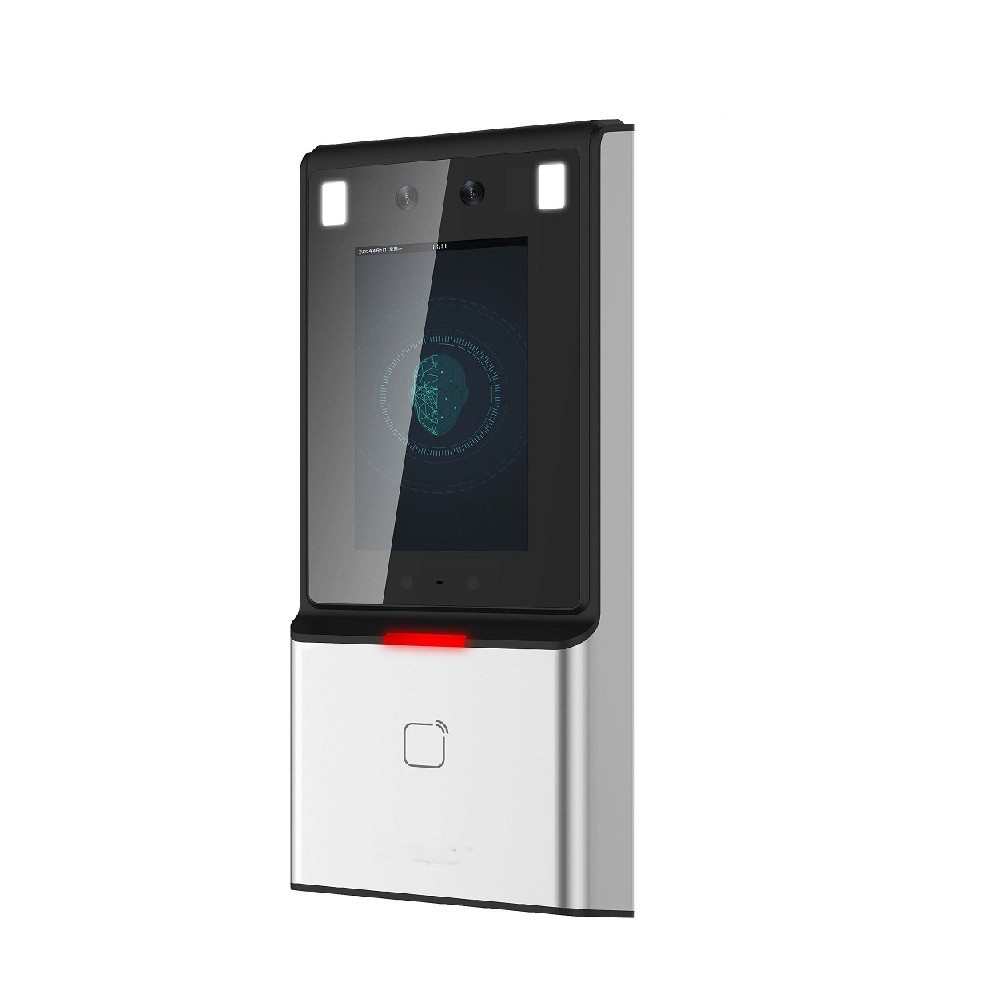

Face Recognition Terminal

SKU: AC606S-FRT
  • Wall mounting
  • 5-inch LCD touch screen to display operation interface, etc.
  • 2 MP wide-angle lens
  • Wide dynamic range (WDR)
  • Face recognition distance: 0.3 m to 1 m
  • High performance processor with deep learning algorithm
  • 3200 face capacity
  • Multiple authentication modes
  • Accurate and fast face recognition function. The face recognition duration is no more than 1s per person and the face recognition accuracy rate is more than 99%
  • Applies data to the device via TCP/IP or uploading data to the device via the USB flash drive Stand-alone operation
  • Multiple languages supported: English, Thai, Spanish, and Arabic
  • Supported attendance status: check in, check out, break out, break in, overtime in, and overtime out

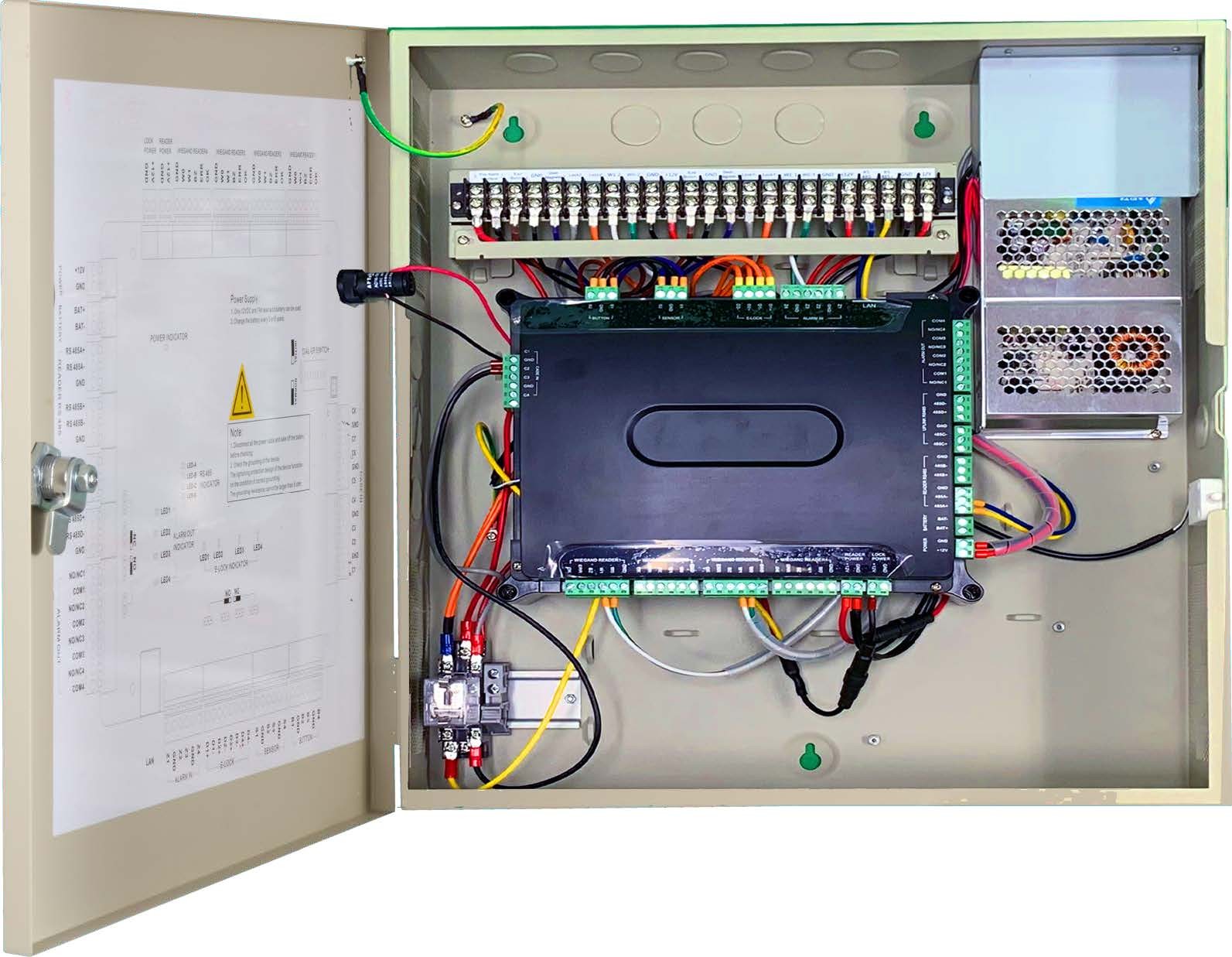

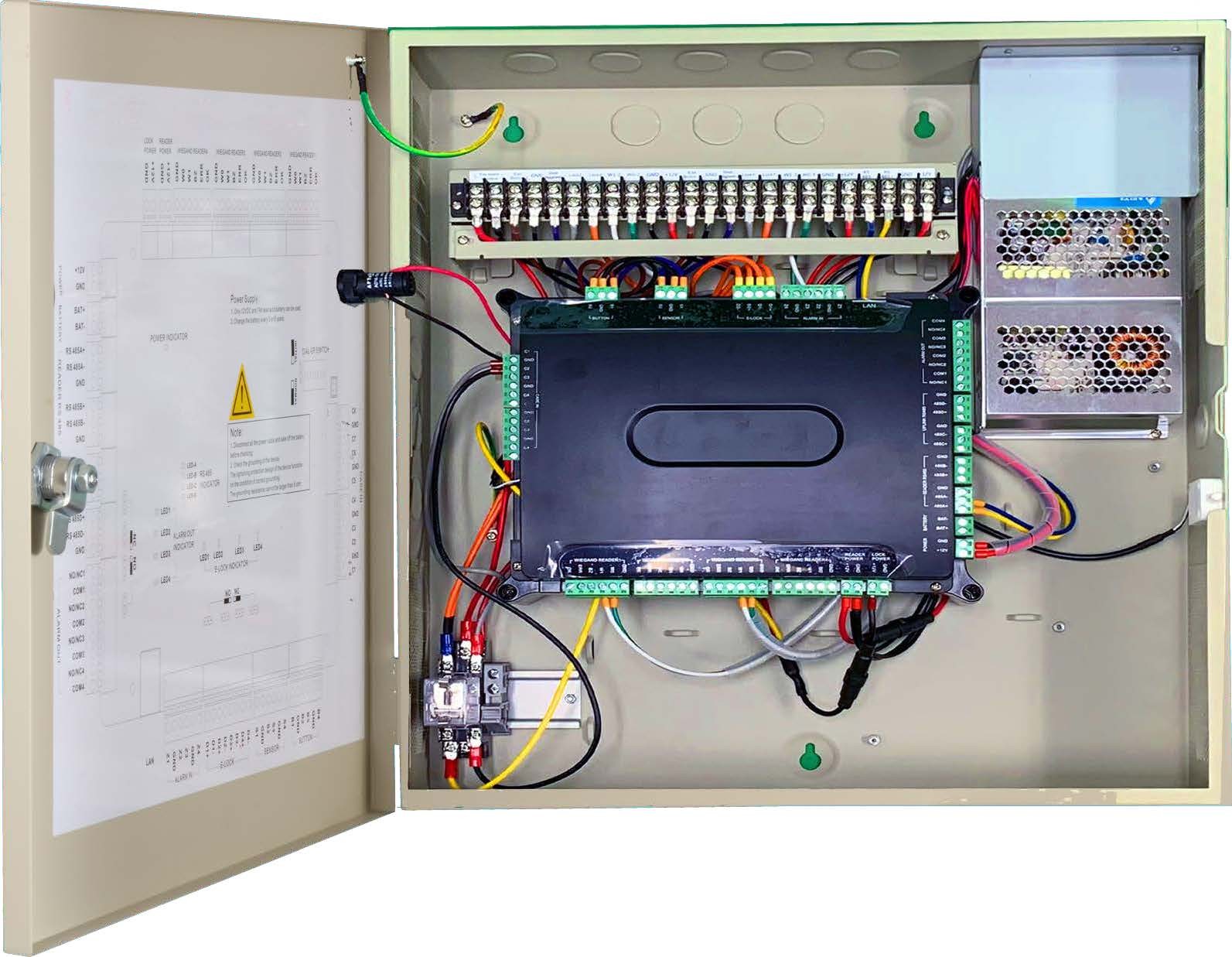

Four-door Access Controller

SKU: AC604-DAC
  • AC604-DAC access controller is designed with latest structure with TCP/IP and RS485 communication interface.
  • The communication data is encrypted to improve the security of system.
  • The controller also supports off line operation and is designed with tamper-proof switch.

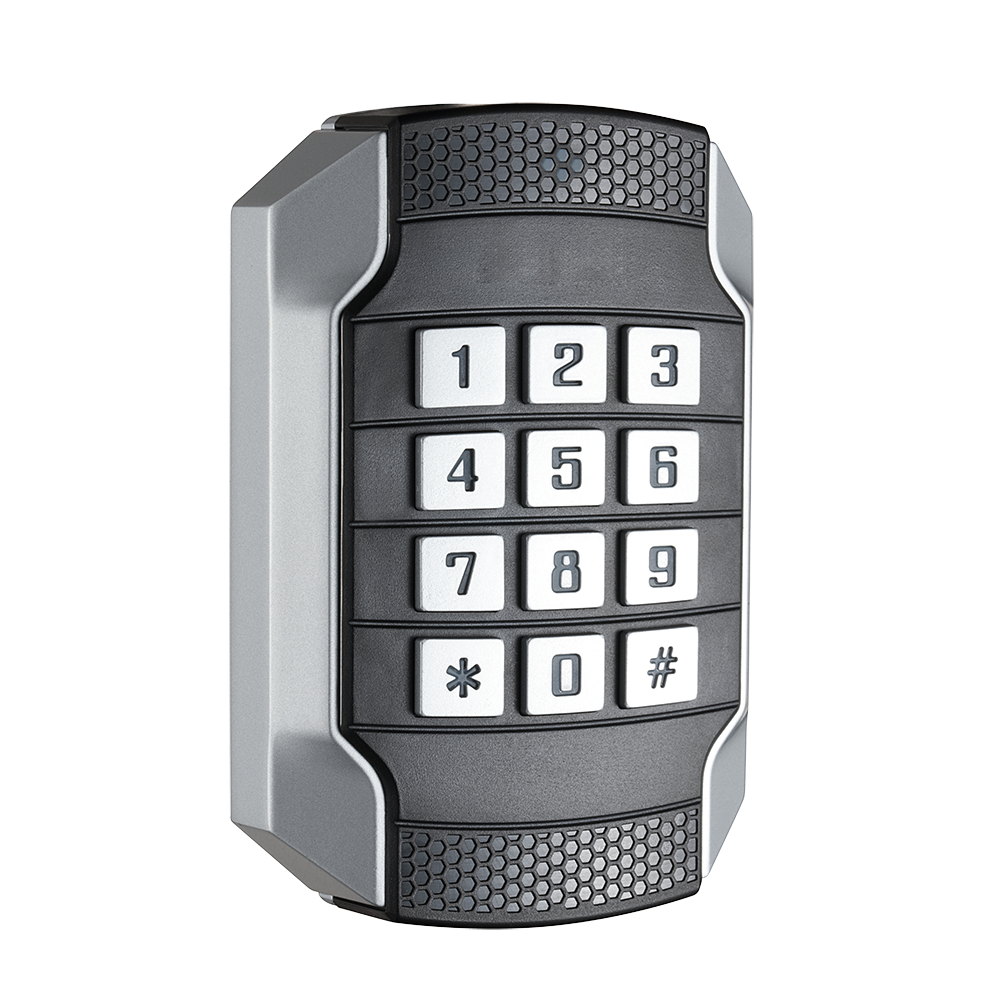

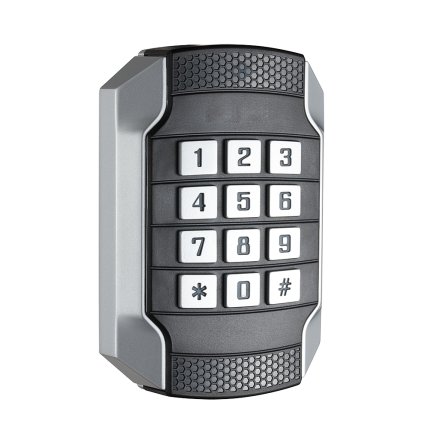

Mifare Card Reader Vandal-proof Card Reader with Keypad

SKU: AC104K-CRV
  • PC + zinc-alloy material shell (material protec on level is IK 10)
  • Equipped with the 32-bit high-speed processor
  • Built-in audible beeper
  • Display the reader status with LED indicator
  • DIP switch
  • RS485 and Wiegand(W26/W34) protocol
  • Tamper-proof alarm
  • Online upgrade func on (under the 485 communica on mode), and card reader can degrade to pre-upgrade status in case of upgrading failed
  • Watchdog design for repairing itself in case that excep on occurs, to ensure the long service life of the reader
  • Dust-proof and water-proof design
  • Read Mifare card and obtain the card No.

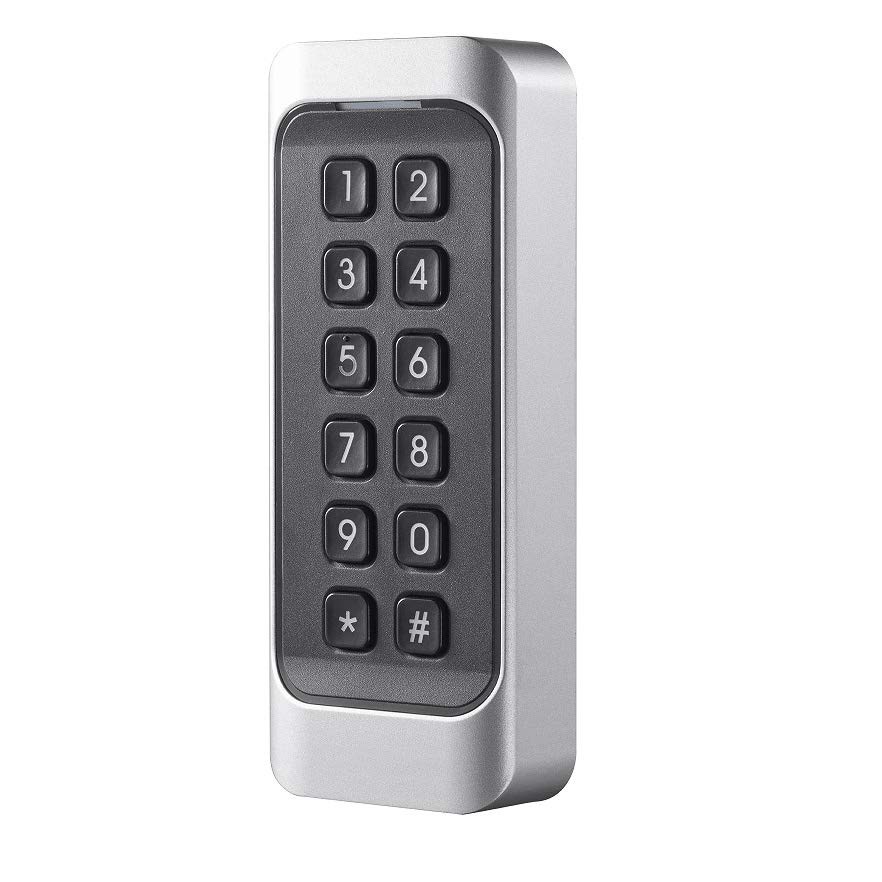

Mifare Card Reader with Keypad

SKU: AC102K-CR
  • PC+ABS material shell with PMMA panel design and alloy decoration;
  • Equipped with the 32-bit high-speed processor;
  • Built-in audible beeper;
  • Display the reader status with LED indicator;
  • DIP switch;
  • RS485 and Wiegand(W26/W34) protocol;
  • Tamper-proof alarm;
  • Online upgrade function (under the 485 communication mode). Card reader can degrade to pre-upgrade status in case of upgrading failed;
  • Watchdog design for repairing itself in case that exception occurs, to ensure the longservice life of the reader;
  • Dust-proof and water-proof design;
  • Read Mifare card and obtain the card No.;

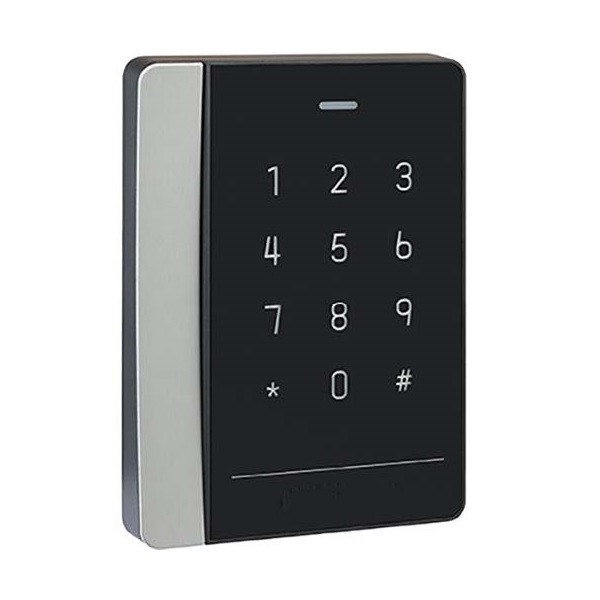

Mifare Card Reader With keypad

SKU: AC107K-CR
  • Equipped with the 32-bit high-speed processor
  • RS-485 and Wiegand (W26/W34) protocol
  • Build-in EM card reading module (Frequency:125KHz).
  • Supports reading ID card
  • Build-in Mifare card reading module (Frequency: 13.56MHz).
  • Meets the standard of ISO 14443-A. Supports reading Mifare cardS
  • Supports tampering alarm
  • Built-in buzzer for identifying the reading status
  • Online upgrade function
  • Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader

Two-Wire Door Station

SKU: TIC802-DS
  • Video intercom function
  • Access control function
  • HD video surveillance with high performance CMOS
  • Low illumination 2MP HD colorful 155° fish-eye camera
  • Self-adaptive IR supplement
  • Tampering alarm and door magnetic alarm supported
  • Noise suppression and echo cancellation
  • Remote upgrade via client and batch configuration
    function
  • Supports surface mounting and flush mounting

Two-Wire Indoor Station with 7-inch Touch Screen

SKU: TIC807-TS
  • Hands-free audiovisual communication with the door station and the master station in the intercom system
  • Supports monitoring door stations and external cameras
  • Supports auto-answering and do not disturb mode
  • Noise suppression and echo cancellation
  • Community notice supported
  • Convenient installation and easy operation

Two-Wire Video/Audio Distributor

SKU: TIC709-VAD
  • Nine two-wire interface to support nine two-wire indoor stations
  • One 10/100M self-adaptive network interface to support external switch
  • 24 VDC power supply and communications between door stations and indoor station
  • Industrial design and DIN rail mount supported
