OTHER ACCESSORIES

Add to compare

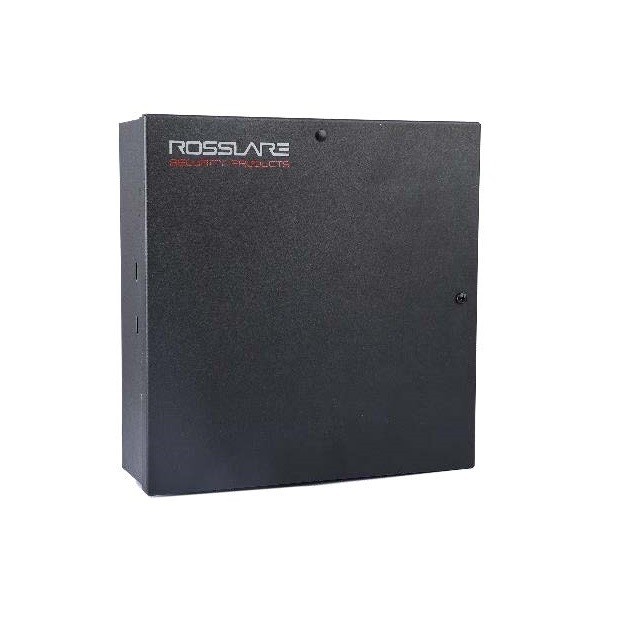

Power Management Enclosure with built in Secure Relay I/O Module

SKU: PS-C25TB
  • Relay for secure door operation using Rosslare AYC series of convertible controllers
  • Global input voltage – 110 VAC to 240 VAC 50/60Hz auto select.
  • Delivers two isolated 14.5VDC @2 Amp
  • Universal C14 power plug for standard power cable connection (order option).
  • Rosslare PowerLock C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket
Add to wishlist
Quick view
Add to compare

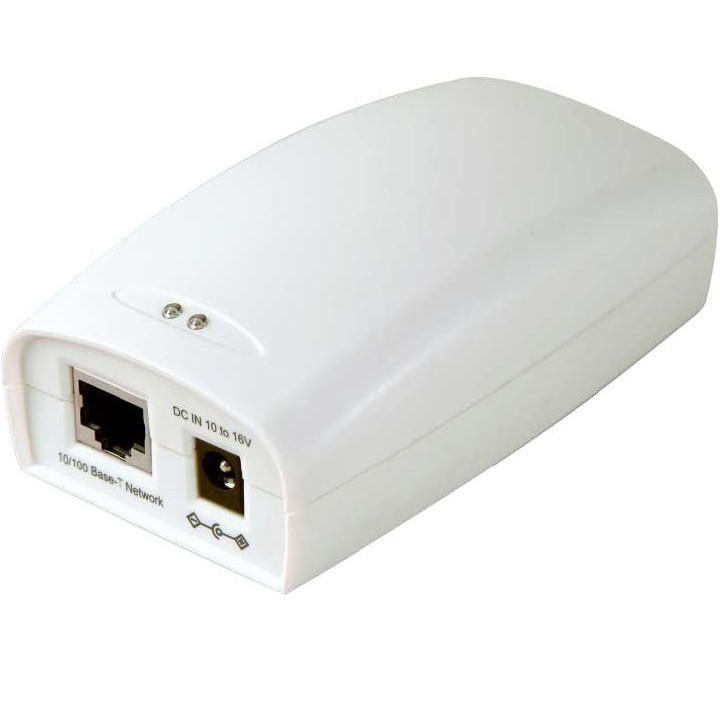

RS-232 to TCP/IP Gateway

SKU: MD-N32
MAIN FEATURES
  • Universal RS-232 to TCP/IP gateway for general use
  • Supports DHCP dynamic IP addressing
  • +12 VDC jack power input connector
  • RS-232 speed from 1200 bps to 230.4 Kbps
  • Bi-directional conversion of RS-232 to TCP/IP
  • Powered by external 12 V wall adapter type power supply
PROFESSIONAL GRADE FEATURES
  • Enables Ethernet networking for AC-115 and AC-215, AC-225, or AC-425 panels
  • Configurable using dedicated software utility or directly using AxTraxNG software, AYC-W6500 as well as intrusion alarm panels AuraSys and HomeLogiX.
Add to wishlist
Quick view
Add to compare

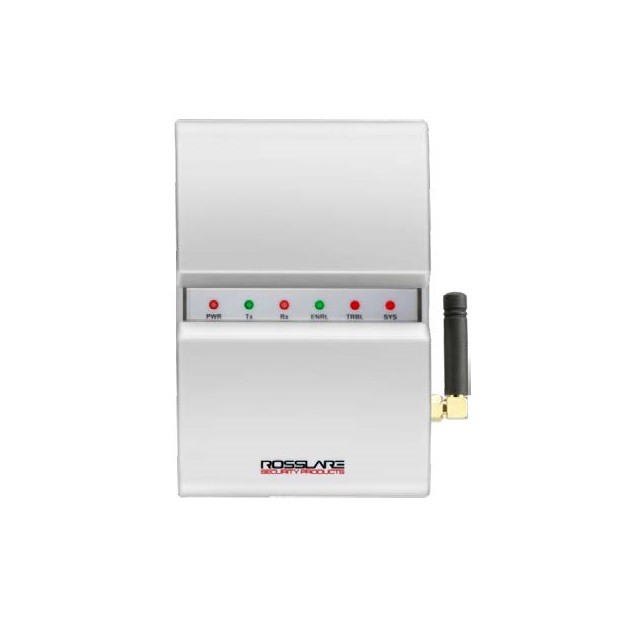

Wireless Access Control Door Interface

SKU: MD-W11
MAIN FEATURES
  • Maximum range of 70 meters (230 ft) indoors and up to 300 meters (985 ft) outdoors with an external fixed antenna, depending on RF related environmental conditions
  • Overall response time of 500 ms when used with Rosslare’s AC-225 controller and readers. Response time depends on RF link quality, the number of doors used, and the controller and reader’s response time.
  • Built-in charger for up to 7 Ah backup battery on the remote unit
  • Compatible with all of Rosslare’s readers and with many third-party standard Wiegand readers
  • Separate sets of terminals for door and controller connections
  • Case and wall tamper protection. Tamper events from either Near or Far sides are reported using a tamper output on the Near unit
PROFESSIONAL GRADE FEATURES
  • Transfers proximity card information as well as LED control, reader tamper, lock relay commands, and REX and Door Monitor events between the coupled units
  • The Near unit is powered using the controller’s power supply. The Far unit is powered by a local wall transformer. A built-in charger provides a power backup option
  • Protected housing with space for Rosslare’s BT- 04, 12 VDC 800 mAh, Sealed Lead-Acid battery. Suitable for Indoor use
  • Available in HR-869 MHz and GR-433 MHz bands
Add to wishlist
Quick view
