AC-425-PCBA 4 DOOR SCALABLE NETWORKED ACCESS CONTROLLER
SKU: AC-425-PCBA
- Full online and offline operation
- Supports 30,000 active credentials, 30,000 PIN codes, 128 access groups, 128 access areas, 128-time zones, 64 holidays and 64 Smart Links for automation.
- 20,000 non-volatile, FIFO, records the event log while offline
- Expandable with MD-IO84B I/O expansion for additional 8 inputs, 4 outputs OR the MD-D04B 4-reader expansion for additional 4 readers with 4 inputs, 4 outputs
- Real-time clock with super-cap holds power and keeps RTC real-time clock for up to 24 hours when total power loss (no batteries to replace)
- Supports a wide range of Wiegand reader formats, PIN keypad formats, and logic options to support a wide range of locks, deadbolts, electric strikes, maglocks, and sliding doors
AC-425IP-BU B SERIES 4 DOOR EXPANDABLE CONTROL PANEL
SKU: AC-425IP-BU
- Full online and offline operation
- Supports 30,000 active credentials, 30,000 PIN codes, 128 access groups, 128 access areas, 128-time zones, 64 holidays and 64 Smart Links for automation.
- 20,000 non-volatile, FIFO, records the event log while offline
- Expandable with MD-IO84B I/O expansion for additional 8 inputs, 4 outputs OR the MD-D04B 4-reader expansion for additional 4 readers with 4 inputs, 4 outputs
- Real-time clock with super-cap holds power and keeps RTC real-time clock for up to 24 hours when total power loss (no batteries to replace)
- Supports a wide range of Wiegand reader formats, PIN keypad formats, and logic options to support a wide range of locks, deadbolts, electric strikes, maglocks, and sliding doors
AC-425IP-DIN (PCBA) B SERIES TWO DOOR PCBA
SKU: AC-425IP-DIN (PCBA)
- Full online and offline operation
- Supports 30,000 active credentials, 30,000 PIN codes, 128 access groups, 128 access areas, 128-time zones, 64 holidays and 64 Smart Links for automation.
- 20,000 non-volatile, FIFO, records the event log while offline
- Expandable with MD-IO84B I/O expansion for additional 8 inputs, 4 outputs OR the MD-D04B 4-reader expansion for additional 4 readers with 4 inputs, 4 outputs
- Real-time clock with super-cap holds power and keeps RTC real-time clock for up to 24 hours when total power loss (no batteries to replace)
- Supports a wide range of Wiegand reader formats, PIN keypad formats, and logic options to support a wide range of locks, deadbolts, electric strikes, maglocks, and sliding doors
AC-425IP-PCBA 4 DOOR IP SCALABLE NETWORKED ACCESS
SKU: AC-425IP-PCBA
- Full online and offline operation
- Supports 30,000 active credentials, 30,000 PIN codes, 128 access groups, 128 access areas, 128-time zones, 64 holidays and 64 Smart Links for automation.
- 20,000 non-volatile, FIFO, records the event log while offline
- Expandable with MD-IO84B I/O expansion for additional 8 inputs, 4 outputs OR the MD-D04B 4-reader expansion for additional 4 readers with 4 inputs, 4 outputs
- Real-time clock with super-cap holds power and keeps RTC real-time clock for up to 24 hours when total power loss (no batteries to replace)
- Supports a wide range of Wiegand reader formats, PIN keypad formats, and logic options to support a wide range of locks, deadbolts, electric strikes, maglocks, and sliding doors
AC-825IP-PCBA PCBA BOARD FOR AC-825IP
SKU: AC-825IP-PCBA
- Up to 58 doors, 100,000 users, and 500,000 history log entries (FIFO) per ACU
- Onboard TCP/IP networking to the AxTraxNG or AxTraxPro server, bidirectional push communication for enhanced data transmission speed and reliability
- Supports SIA Open Supervised Device Protocol (OSDP V2) including OSDP Secured Channel Protocol to let the AC-825IP controller connect to any peripheral device that supports OSDP1
- AES 256-bit symmetric data encryption to the AxTraxPro server to make sure the data is secure
- 4 auxiliary inputs and 2 auxiliary outputs
- One onboard expansion slot and an additional 12 expansion boards via OSDP V2 including secure channel protocol (R/S/D/P-805)
- R-805 – 16 outputs
- S-805 – 16 inputs
- D-805 – 4-door expansion
- P-805 – 16 inputs and 8 outputs
- AC-825IP can be installed in a ME-1515 metal enclosure
- Holds 2 expansion boards or an AC-825IP board
- C14 power plug and supports Pull-Safe cable locks for secured wiring
- Built-in tamper and light bar
- DIN rail mounting option for space saving with no additional enclosure needed
- Power management board indicates battery and power status
AC-825IP-U PCBA BOARD FOR AC-825IP
SKU: AC-825IP-U
- Up to 58 doors, 100,000 users, and 500,000 history log entries (FIFO) per ACU
- Onboard TCP/IP networking to the AxTraxNG or AxTraxPro server, bidirectional push communication for enhanced data transmission speed and reliability
- Supports SIA Open Supervised Device Protocol (OSDP V2) including OSDP Secured Channel Protocol to let the AC-825IP controller connect to any peripheral device that supports OSDP1
- AES 256-bit symmetric data encryption to the AxTraxPro server to make sure the data is secure
- 4 auxiliary inputs and 2 auxiliary outputs
- One onboard expansion slot and an additional 12 expansion boards via OSDP V2 including secure channel protocol (R/S/D/P-805)
- R-805 – 16 outputs
- S-805 – 16 inputs
- D-805 – 4-door expansion
- P-805 – 16 inputs and 8 outputs
- AC-825IP can be installed in a ME-1515 metal enclosure
- Holds 2 expansion boards or an AC-825IP board
- C14 power plug and supports Pull-Safe cable locks for secured wiring
- Built-in tamper and light bar
- DIN rail mounting option for space saving with no additional enclosure needed
- Power management board indicates battery and power status

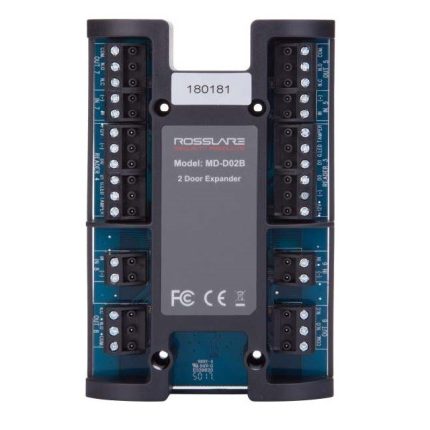

MD-D02B 2-READER EXPANSION MODULE FOR AC-225X-B CONTROL PANEL
SKU: MD-D02B
- Additional two proximity readers or keypads
- Four relay outputs and four supervised inputs to the access control panel
- Wiegand or Clock-and-Data transmission keypad or biometric reader compatibility
- LED status feedback for 12 V power and relay activation
- Cost effective and modular installation
- Input and output configurability using Rosslare’s AxTraxNG or AxTraxPro Access

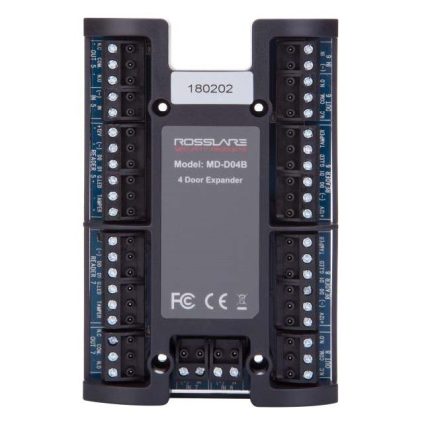

MD-D04B 4-Reader Expansion Module for AC-425x-B Networked Access Control Panels
SKU: MD-D04B
- Additional four proximity readers or keypads
- Four relay outputs and four supervised inputs to the access control panel
- Wiegand or Clock-and-Data transmission keypad or biometric reader compatibility
- LED status feedback for 12 V power and relay activation
- Cost effective and modular installation
- Compatible with Rosslare’s AC-425 networked controller
- Input and output configurability using Rosslare’s AxTraxNG or AxTraxPro Access Control Management software

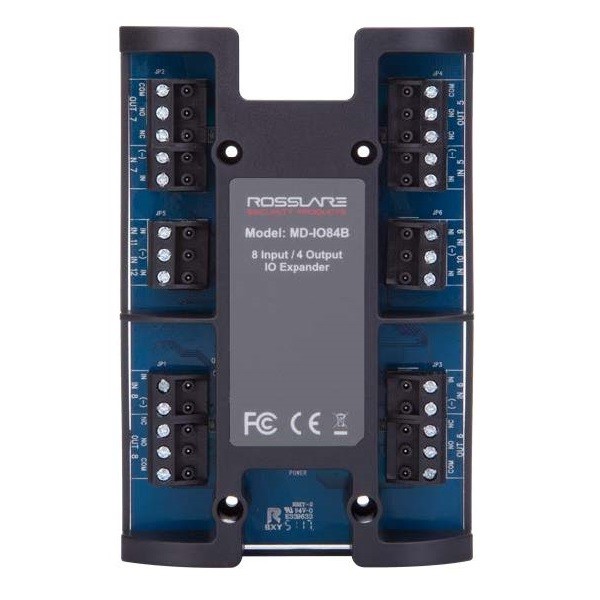

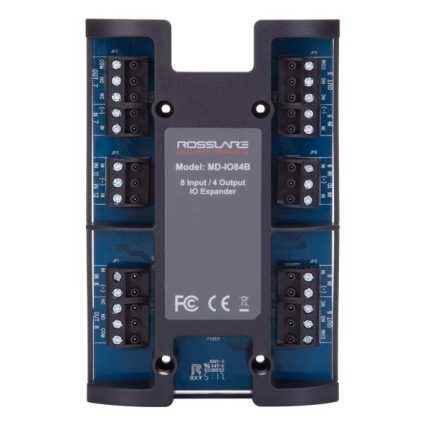

MD-IO84B I/O Expansion Module for AC-225x-B and AC-425x-B Access Control Panels
SKU: MD-IO84B
- Eight additional supervised inputs
- Four additional fully programmable relay outputs
- LED status feedback for 12 V power and relay activation
- Cost effective and simple installation
- Compatible with Rosslare’s AC-225x-B, AC-425x-B networked access control panels
- Input and output configurability using Rosslare’s AxTraxNG or AxTraxPro Access Control Management Software

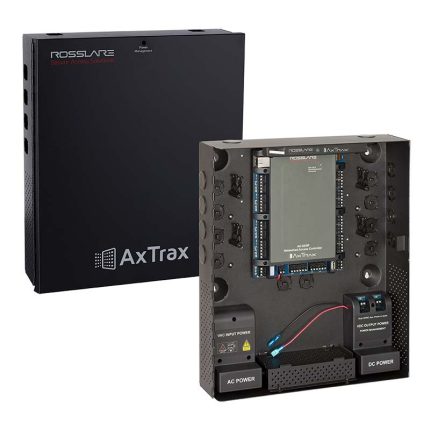

ME-1515-U AC-825IP Series Controller Enclosure with Integrated Power Supply
SKU: ME-1515-U
- Global input voltage-100 to 240 VAC, 1.6 A, 50/60Hz auto select.
- Power module delivers isolated 13.8 VDC power @ 2 Amp output channels with PTC resettable fuse and LED indications.
- Built-in power event generation to let the control panels receive power supply and UPS events.
- Built-in Rosslare LightBar for lighting the way during maintenance and installation.
- Full system hinge and key lock unit (including 2 keys), thick high-quality oven baked black matte coating.
- Silk screen of all the connections on inside of door.
- Rosslare PowerLock C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket. Can be supplied with various C14 power plugs per country requirements.
- Supplied with removable terminal blocks and special key for ease of installation.
