Top rated products
PROGRAM READER VANDAL/ PIEZO PIN ONLY MULLION
SKU:
AY-S55
- Supports 4-digit to 8-digit PIN credentials
- Smooth, attractive design, with all-weather indoor and outdoor operation
- Large metallic piezoelectric keypad with highly sensitive keys
- 2 tri-colored LEDs and an integral sounder for programming and operation
- User-friendly menu system based on keypad, LED and sounder indicators
- Back optical tamper detection output
- Door bell feature (‘*’ key), when operated with Rosslare controllers
PROGRAM READER VANDAL/PIEZO PIN ONLY US GANG
SKU:
AY-T55
- Supports 4-digit to 8-digit PIN credentials
- Smooth, attractive design, with all-weather indoor and outdoor operation
- Large metallic piezoelectric keypad with highly sensitive keys
- 2 tri-colored LEDs and an integral sounder for programming and operation
- User-friendly menu system based on keypad, LED, and sounder indicators
- Back Optical tamper detection output
- Door bell feature (‘*’ key), when operated with Rosslare controllers
REPROGRMABLE CLAMSHELL EACH CARD REPLACES AT-T14
SKU:
AT-TUC-000-0001
RS-232 to TCP/IP Gateway
SKU:
MD-N32
MAIN FEATURES
- Universal RS-232 to TCP/IP gateway for general use
- Supports DHCP dynamic IP addressing
- +12 VDC jack power input connector
- RS-232 speed from 1200 bps to 230.4 Kbps
- Bi-directional conversion of RS-232 to TCP/IP
- Powered by external 12 V wall adapter type power supply
- Enables Ethernet networking for AC-115 and AC-215, AC-225, or AC-425 panels
- Configurable using dedicated software utility or directly using AxTraxNG software, AYC-W6500 as well as intrusion alarm panels AuraSys and HomeLogiX.

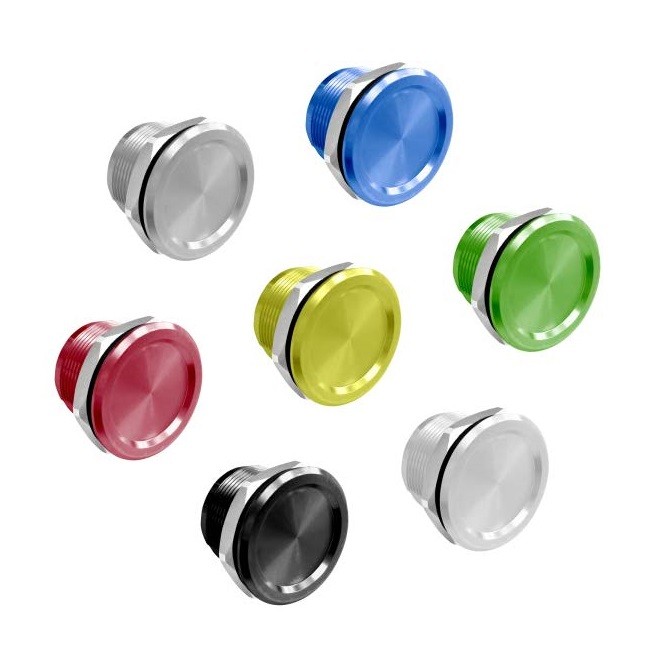

Rugged Piezoelectric Switches
SKU:
PX-13
MAIN FEATURES
- Easy to install and use
- Supports a wide range of switch voltages from 0 to 30 VDC
- Piezoelectric technology allows sensing actuation within a solid metal enclosure, making the devices rugged and waterproof; meets IP68
- Fully-potted design prevents penetration of dirt, dust and water
- Require no operating power, capable of actuating a dry contact input
- Available in a range of seven attractive anodized aluminum colors – black , natural (mat) , gold, green, red, blue, and silver
- SMT designed electronics for higher quality, superior performance, and reduced cost
- Compatible with Rosslare’s access controllers as a REX or a system input (alarm or event)
- No polarity considerations for the switch
- Meets RoHS requirements

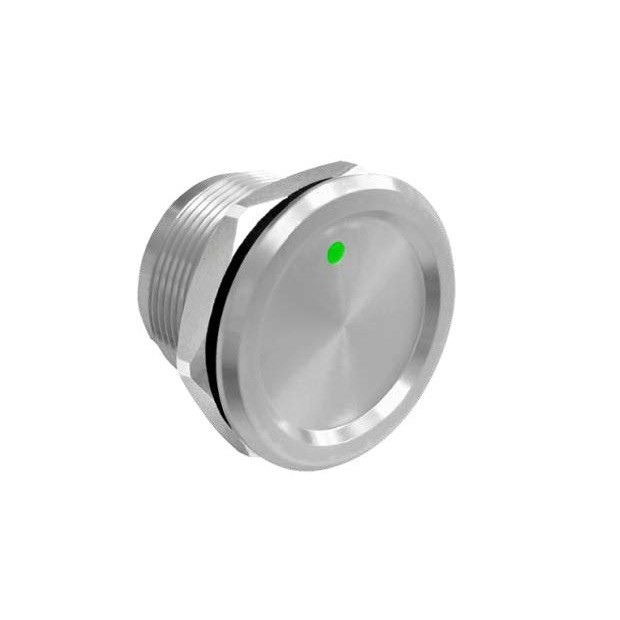

Rugged Piezoelectric Switches
SKU:
PX-23
MAIN FEATURES
- Easy to install and use
- Light indicator switch colors between red and green when the button is pressed
- Wide range of input voltage from 5V to 12V DC
- Piezoelectric technology can sense actuation within a solid metal enclosure
- Low temperature operation down to -40 degrees Celsius
- Meets IP68, fully potted design resists penetration of dirt and dust and water
- Available in a range of seven attractive anodized Aluminum colors – Black , Natural (Mat) , Gold, Green, Red, Blue, White (silver)
- SMT designed electronics for higher quality, superior performance, and reduced cost
- Compatible with Rosslare’s Access Controllers as a REX or a system input (Alarm or Event)
- No polarity considerations for Switch wiring

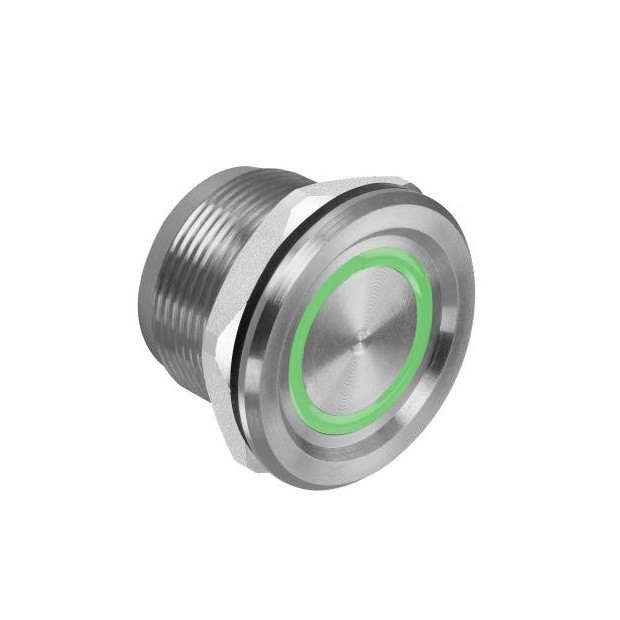

Rugged Piezoelectric Switches
SKU:
PX-34
MAIN FEATURES
- Easy to install and use
- Light indicator switch colors between red and green when the button is pressed
- Wide range of input voltage from 5 to 30 VDC
- Piezoelectric technology can sense actuation within a solid metal enclosure
- Low temperature operation down to -40°C
- Meets IP68, fully potted design resists penetration of dirt and dust and water
- Available in a range of seven attractive anodized Aluminum colors – Black , Natural (Mat) , Gold, Green, Red, Blue, White (silver)
- SMT designed electronics for higher quality, superior performance, and reduced cost
- Compatible with Rosslare’s access controllers as a REX or a system input (Alarm or Event)
- No polarity considerations for toggle switch wiring

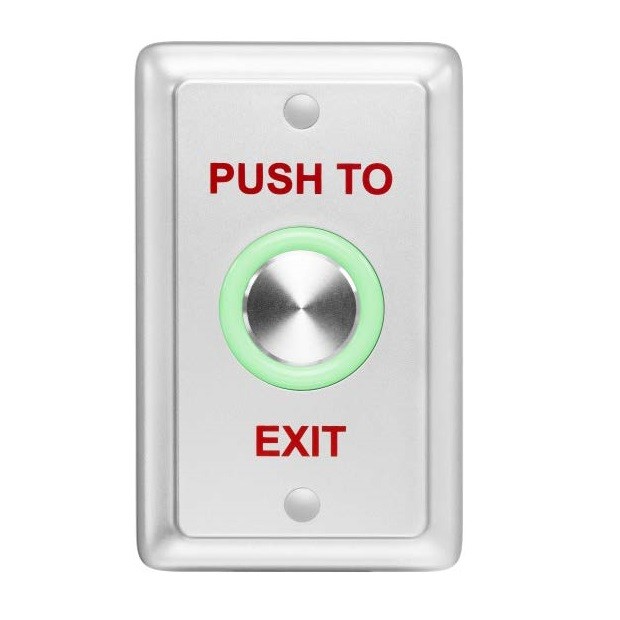

Sensitive Piezoelectric Button Switches
SKU:
EX-H04/M04
MAIN FEATURES
- Advanced soft touch piezoelectric switch
- New weatherproof design – water and dust proof
- Circuit assembly encapsulation
- No moving parts
- Mounting Method – Single Gang: Mounts directly to a US (EX-H04) or UK (EX-M04) gang switchbox
- Light ring status indicator and accidental activation hindrance
- External LED control wire
UHF 900 MHZ LONG RANGE READER
SKU:
AY-U920BT-US
- MD-81 functionality built-in
- Wide range of UHF credential form factors available
- UHF read range up to 12 m (39 ft) UHF credential cannot be installed in RF-proof vehicles.
- Supports Bluetooth communication for Rosslare BLE-ID smartphone apps for Android and iOS
- Can read up to 10 credentials per second or down to 1 credential per second (programmable)
- IP67 water and dust resistant, IK10 vandal resistant
- RGB LED used for operational indication
UHF 900 MHZ MEDIUM RANGE READER
SKU:
AY-U915BT-US
- MD-81 functionality built-in
- Wide range of UHF credential form factors available
- UHF read range up to 6 m (19 ft) UHF credential cannot be installed in RF-proof vehicles.
- Supports Bluetooth communication for Rosslare BLE-ID smartphone apps for Android and iOS
- Can read up to 10 credentials per second or down to 1 credential per second (programmable)
- IP67 water and dust resistant, IK10 vandal resistant
- RGB LED used for operational indication
ULTRA SLIM PROX READER
SKU:
AY-E20
- Ultra-slim flush-mount design on flat surface
- Reading distance: 3.5 cm (1.37 in.)
- Built-In 125 kHz ASK EM proximity card reader
- Internal buzzer provides audible interface feedback
- Bi-colored ultra bright LED indicator
- Fully-potted, waterproof construction for outdoor use
- Mounting template for easier installation
ULTRA-SLIM PIEZO MULLION BACKLIT GOPROX & PIN READER CONVERTIBLE BLACK
SKU:
AYC-E60B
- Advanced, secure, multi-application functionality for intelligent installations
- Smooth, attractive design, with all-weather indoor and outdoor operation
- 2 tri-colored LEDs and an integral sounder for programming and operation
- Unique backlit piezoelectric keys
- User-friendly menu based on keypad, LED, and sounder indicators
- Back and cover optical tamper detection and output
- Default operation as a multi-format reader (Rosslare PROX and HID Genuine Technology™ formats, Wiegand 26-Bit, Clock & Data)
- Automatically recognizes Rosslare's PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays
- 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)
