PROX and goPROX

26 BIT WEIGAND READER WEATHERPRF PROX MULLION

SKU: AY-K12C
  • Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data
  • Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)
  • Wide range operating voltage: 5 to 16 VDC
  • 45 cm (18 in.) pigtail cable

26 BIT WEIGAND READER WEATHERPRF PROX US GANG

SKU: AY-H12C
  • Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data
  • Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)
  • Wide range operating voltage: 5 to 16 VDC
  • 45 cm (18 in.) pigtail cable

26 BIT WEIGAND REALER WEATHEPRF PROX MULLION L

SKU: AY-L12C
  • Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data
  • Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)
  • Wide range operating voltage: 5 to 16 VDC
  • 45 cm (18 in.) pigtail cable

26-BIT WEIGAND READER VANDAL PROX US GANG

SKU: AY-Q12
  • Selectable output formats: Wiegand 26-Bit, RS-232, or Clock & Data
  • Excellent RFID card read range: 8 cm (3.2 in.) to 10 cm (3.9 in.)
  • Wide range operating voltage: 5 to 16 VDC
  • 45 cm (18 in.) pigtail cable

ANTI VANDAL US SINGLE GANG BACKLIT GOPROX & PIN RDR-CONVERTIBLE

SKU: AYC-Q60
  • Advanced, secure, multi-application functionality for intelligent installations
  • Smooth, attractive design, with all-weather indoor and outdoor operation
  • 2 tri-colored LEDs and an integral sounder for programming and operation
  • Unique backlit piezoelectric keys
  • User-friendly menu based on keypad, LED, and sounder indicators
  • Back and cover optical tamper detection and output
  • Default operation as a multi-format reader (Rosslare PROX and HID Genuine Technology formats, Wiegand 26-Bit, Clock & Data)
  • Automatically recognizes Rosslare’s PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays
  • 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)

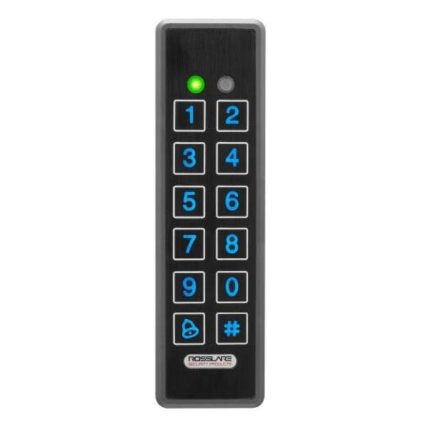

CONVERTIBLE 2X6 ULTRA-SLIM BACKLIT PIN

SKU: AYC-E65BB
  • Supports 4- to 8-Digit PIN credentials and 125 KHz EM type RFID cards and tags
  • Smooth, attractive design, with all-weather indoor and outdoor operation
  • Large, high-visibility unique illuminated piezoelectric keypad
  • Optical back tamper detection output
  • 2 tri-colored LEDs and an integral sounder for programming and operation
  • User-friendly menu system based on keypad, LED, and sounder indicators
  • Automatically recognizes a connection to PS-x25T intelligent power supplies and converts into a 500- user standalone controller with secure relays
  • Available in three models: AYC-E65BG with gray antenna, AYC-E65BW with white antenna, and AYC-E65BB in black

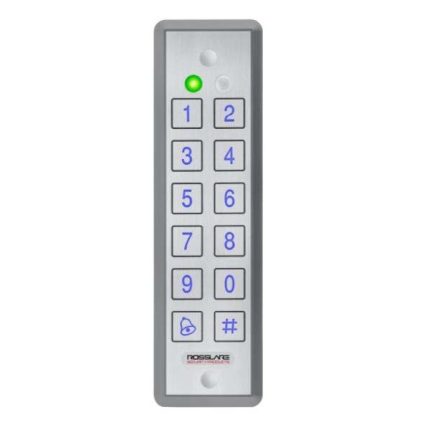

CONVERTIBLE, ULTRA THIN PIN/PROX, BACKLIT, MULLION

SKU: AYC-E65BG
  • Supports 4- to 8-Digit PIN credentials and 125 KHz EM type RFID cards and tags
  • Smooth, attractive design, with all-weather indoor and outdoor operation
  • Large, high-visibility unique illuminated piezoelectric keypad
  • Optical back tamper detection output
  • 2 tri-colored LEDs and an integral sounder for programming and operation
  • User-friendly menu system based on keypad, LED, and sounder indicators
  • Automatically recognizes a connection to PS-x25T intelligent power supplies and converts into a 500- user standalone controller with secure relays
  • Available in three models: AYC-E65BG with gray antenna, AYC-E65BW with white antenna, and AYC-E65BB in black

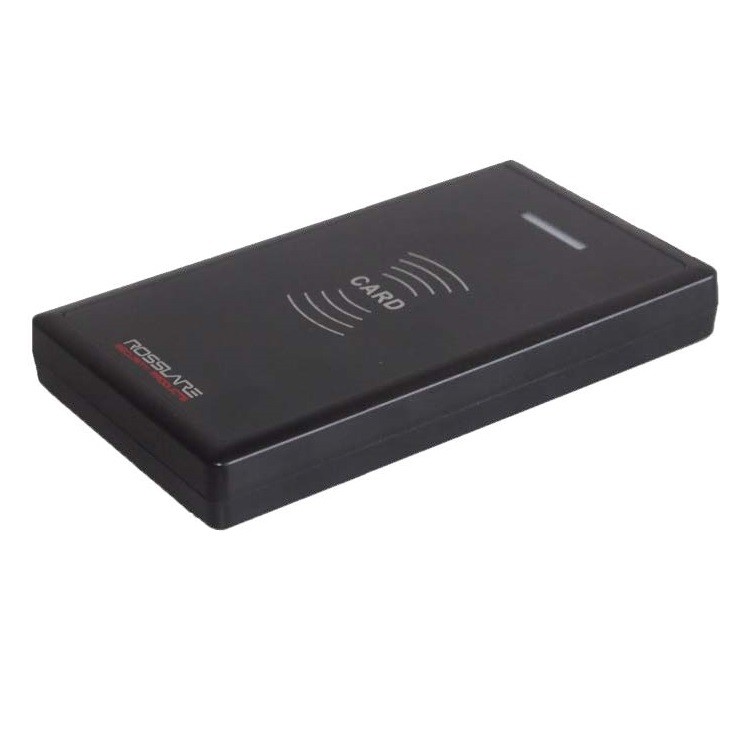

EM CARD DESKTOP READER

SKU: DR-12C
  • Reads EM cards ID
  • Bi-Colored LED
  • Supports USB 2.0 standard (compatible with USB 1.1), meets the EIA standard
  • Driver supports the following Operating Systems: Windows 7, 8, 8.1 and 10 32- and 64-Bit, Windows Vista, and Vista 64-Bit, Windows XP and XP 64-Bit, Server 2003, XP and Server 2008

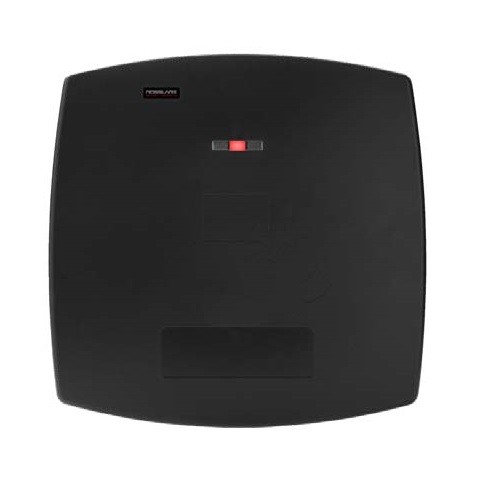

LONG RANGE PROX READER

SKU: AY-Z12
  • Wiegand 26 Bit output format
  • RFID read range:
  • Up to 60 cm (23.6 in.) in single mode
  • Up to 45 cm (17.7 in.) in multiple mode
  • Operating voltage range of 10 to 16 VDC
  • 60 cm (23.6 in.) shielded interface cable

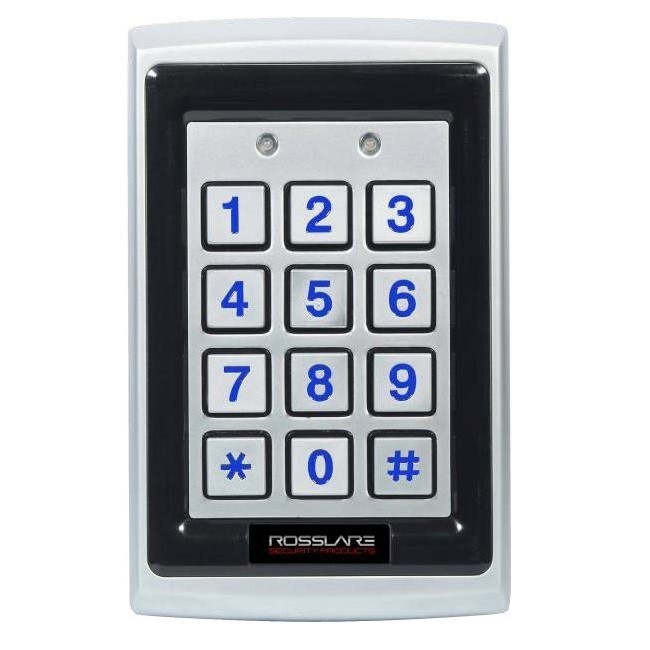

METAL PIN/PROX GANG BOX SECURED CTRL AND 26 BIT RDR BACKLIT

SKU: AYC-Q64B
  • Supports 4- to 8-digit PIN credentials and 125 kHz EM type RFID cards and tags
  • Smooth, attractive design, with all-weather indoor and outdoor operation
  • Large, highly-visible blue backlit keypad
  • 2 tri-colored LEDs and an integral sounder for programming and operation
  • User friendly menu, based on keypad, LED and sounder indicators
  • Back and cover optical tamper detection and output
  • Default operation as a multi-format reader (Wiegand 26-Bit/Clock & Data)
  • Automatically recognizes Rosslare’s PS-x25T intelligent power supply family converting it into a 500-user standalone controller with secure relays

MULLION BACKLIT GOPROX & PIN READER CONVERTIBLE

SKU: AYC-G60
  • Advanced, secure, multi-application functionality for intelligent installations
  • Smooth, attractive design, with all-weather indoor and outdoor operation
  • 2 tri-colored LEDs and an integral sounder for programming and operation
  • Unique backlit piezoelectric keys
  • User-friendly menu based on keypad, LED, and sounder indicators
  • Back and cover optical tamper detection and output
  • Default operation as a multi-format reader (Rosslare PROX and HID Genuine Technology formats, Wiegand 26-Bit, Clock & Data)
  • Automatically recognizes Rosslare’s PS-x5 intelligent power supply family, converting into a 500-user standalone controller with secure relays
  • 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or Secure (card + PIN)

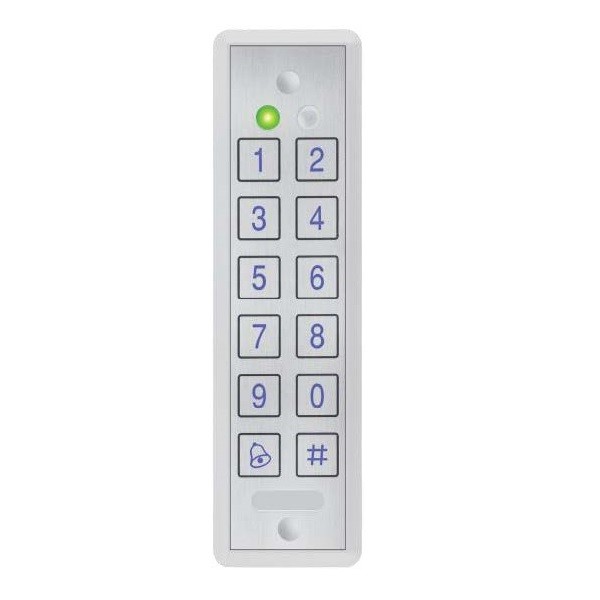

NATURAL COLOUR ANODIZED HOUSING WITH WHITE ANTENNA FRAME

SKU: AYC-E65BW
  • Supports 4- to 8-Digit PIN credentials and 125 KHz EM type RFID cards and tags
  • Smooth, attractive design, with all-weather indoor and outdoor operation
  • Large, high-visibility unique illuminated piezoelectric keypad
  • Optical back tamper detection output
  • 2 tri-colored LEDs and an integral sounder for programming and operation
  • User-friendly menu system based on keypad, LED, and sounder indicators
  • Automatically recognizes a connection to PS-x25T intelligent power supplies and converts into a 500- user standalone controller with secure relays
  • Available in three models: AYC-E65BG with gray antenna, AYC-E65BW with white antenna, and AYC-E65BB in black
