VMS

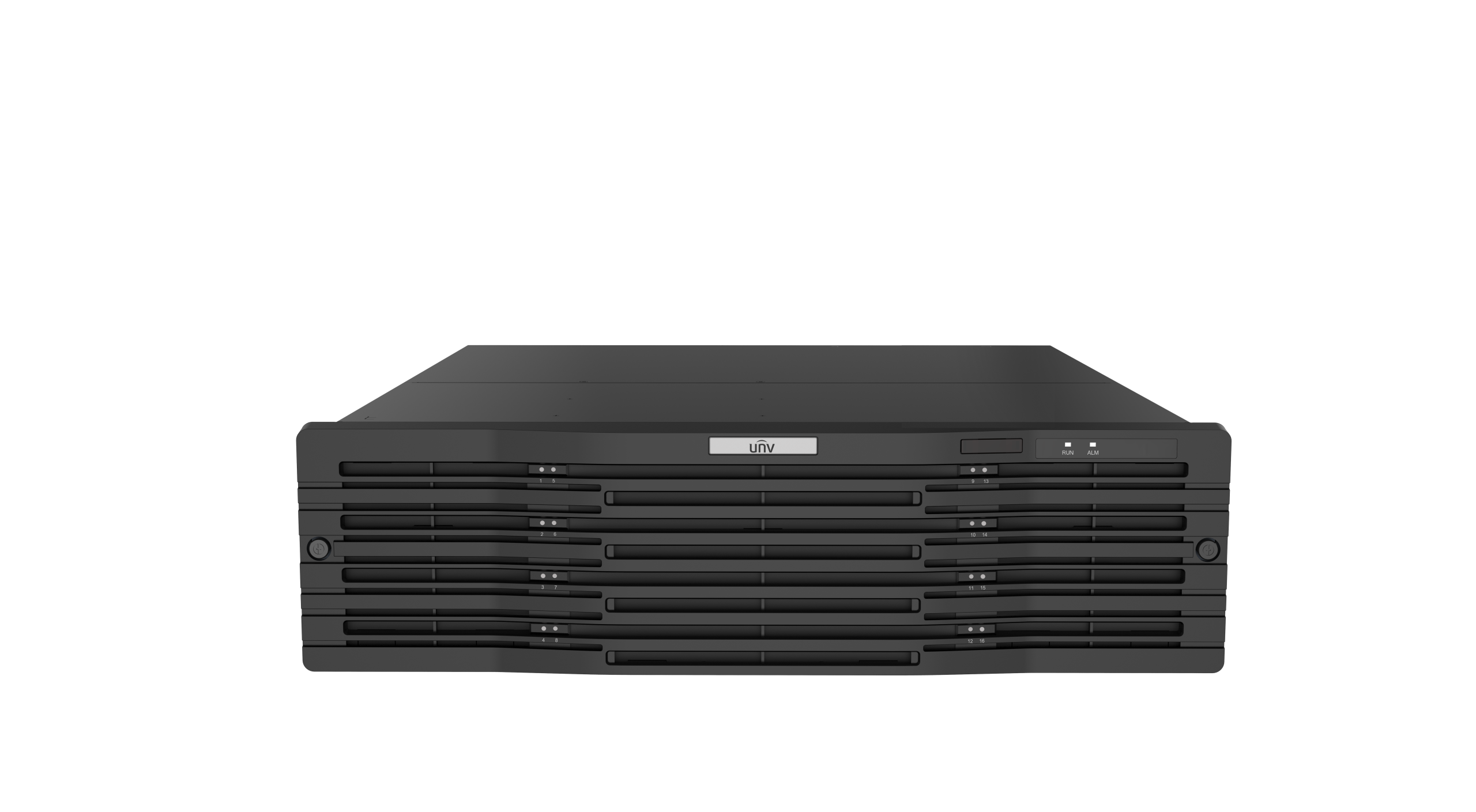

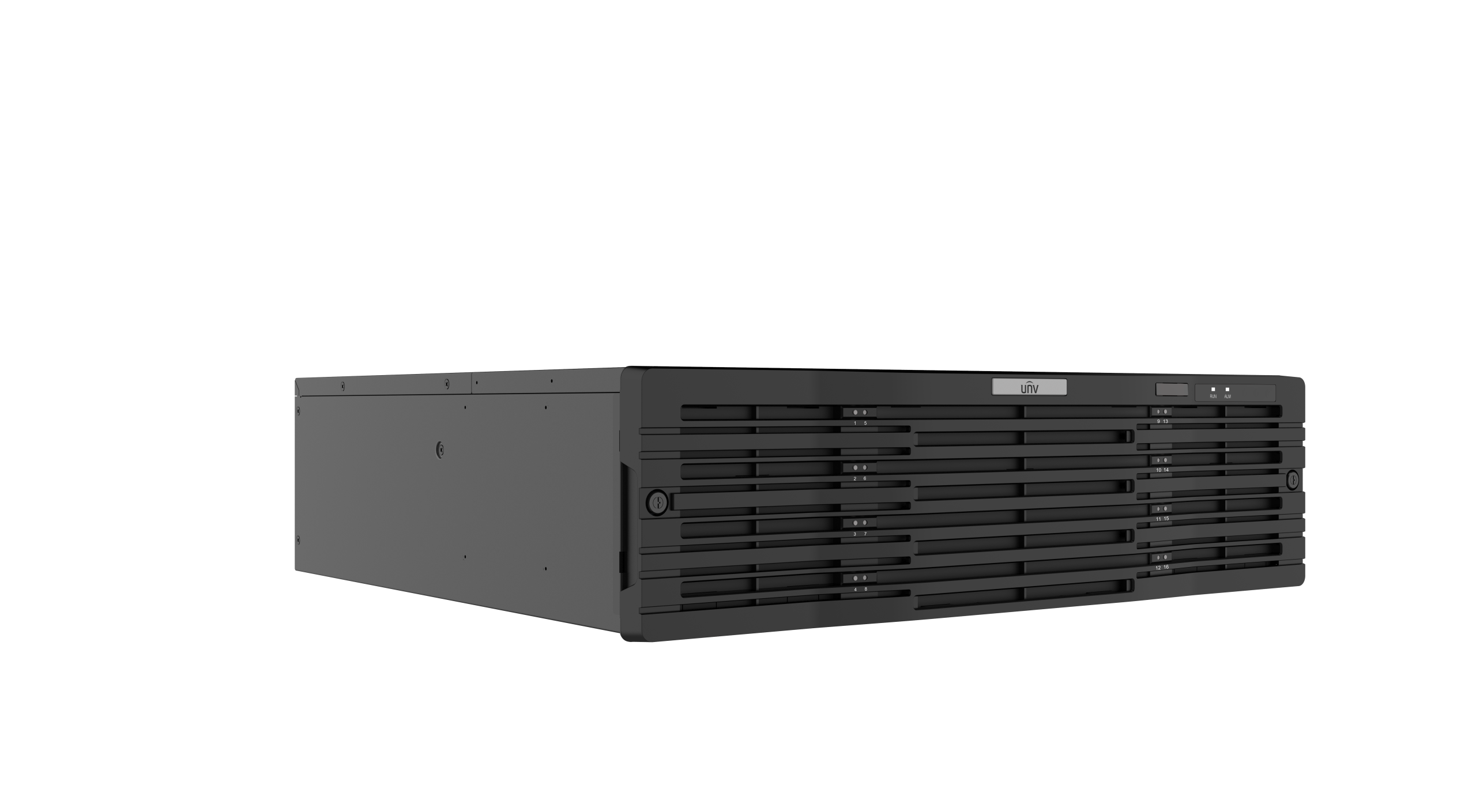

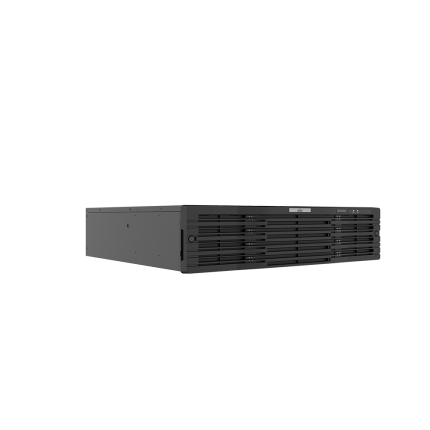

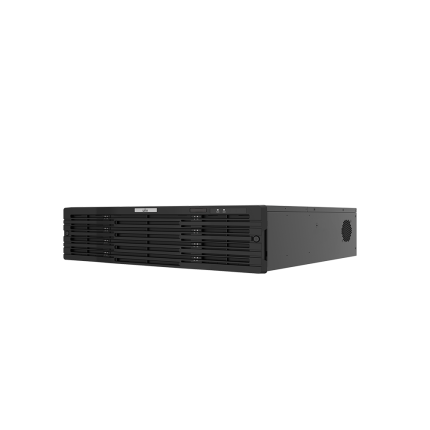

High density. The innovative enclosure with 477mm depth and 3U height that holds up to 16 disks, is space-saving and applicable to the standard rack-mounted scenarios. Power protection. Disk powered on sequentially during system startup, protection from impulse current.

Powerful connection: 1,000 devices, 2000 channels in stand-alone mode; 2,000 devices, 4,000 channels in primary/replica mode Unified management: IPC, NVR, smart device, smart recognition access control device, entrance & exit device, cloud device, decoder, network keyboard, access control, alarm control, expansion disk enclosure, etc. Huge storage: Max 16 SATA HDDs, and two 16-slot disk enclosures via miniSAS interfaces; expandable up to 48 disks for recording storage Powerful decoding: Outputs 16x1080P videos to three screens (2xHDMI, 1xVGA) High bandwidths: 512Mbps incoming bandwidth, 512Mbps storage bandwidth, and 384Mbps forwarding bandwidth Strong compatibility: Standard ONVIF, VSS, VIID, and RTSP High scalability: Primary/replica expansion for enhanced forwarding performance and storage capacity Rich functionality: Basic functions including live view, playback, sequence, view, video wall, e-map, two-way audio, broadcast, alarm linkage; smart functions including perimeter protection, person detection, person recognition, LPR, entrance & exit management, access control, attendance management, mixed-traffic detection, people counting, and data search Flexible access: PC client (C/S and B/S), mobile client (iOS and Android) Stability: Embedded Linux OS, dual-BIOS, redundant power, and 1+1 hot standby Security and reliability: 802.1x authentication, ARP protection, HTTPS, SSH enabling/disabling, network fault tolerance, load balancing, multi-IP configuration, secure password, and IP address filtering Operation and maintenance: Provide a comprehensive management dashboard, server status, device/channel online status, HDD status, online users, bandwidth usage, packet loss rate, log search, etc. Abundant interfaces: 4 Gigabit copper interfaces, 2 Gigabit optical interfaces, 24 alarm inputs, 8 alarm outputs, 4 USB3.0 interfaces, 2 HDMI interfaces, and 1 VGA interface
