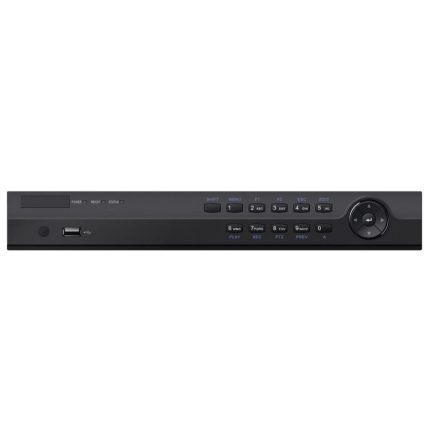

16 Channel 4K 160M 1U Network Video Recorder

SKU: NR320-16 Categories: NETWORK VIDEO RECORDER, WINIC

Alarm in/out	4/1 channel
Audio output(video recorder)	1-ch , RCA (Linear , 1 KΩ)
Capability	2-ch @ 4K , or 8-ch @ 1080p
Capacity	Up to 6TB capacity for each HDD
Chassis	385 mm chassis
Consumption (without hard disks)	≤15 W
Decoding format	H.265/H.265+/H.264/H.264+/MPEG4
Dimensions	385 × 315× 52 mm (15.2" × 12.4" × 2.0")
HDMI output resolution	4K (3840 × 2160)/30Hz , 2K (2560 × 1440)/60Hz , 1920 × 1080/60Hz , 1600 × 1200/60Hz , 1280 × 1024/60Hz , 1280 × 720/60Hz , 1024 × 768/60Hz
Incoming bandwidth	160 Mbps
IP Video Input	16-ch
Network interface (video recorder)	1 , RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Network Protocols	TCP/IP , DHCP , Cloud P2P , DNS , DDNS , NTP , SADP , SMTP , NFS , iSCSI , UPnP™ , HTTPS
Outgoing bandwidth	160 Mbps
Power	≤ 40 W
Power Supply	12 VDC
Recording resolution	8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
SATA	2 SATA interfaces
Synchronous Playback	16-ch
Two-way audio	1-ch , RCA (2.0 Vp-p , 1kΩ)
USB Interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
VGA output resolution	1920 × 1080/60Hz , 1280 × 1024/60Hz , 1280 × 720/60Hz , 1024 × 768/60Hz
Weight	≤ 1 kg (2.2 lb)
Working humidity (video recorder)	10 to 90 %
Working temperature (video recorder)	-10 to +55ºC (14 to 131ºF )

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Firmware	Description	File	Download
NR320-16		NR32P8-8,P6-16_DZ_K51_ML_NEU_V4.71.005_220801_OEM3	Download
