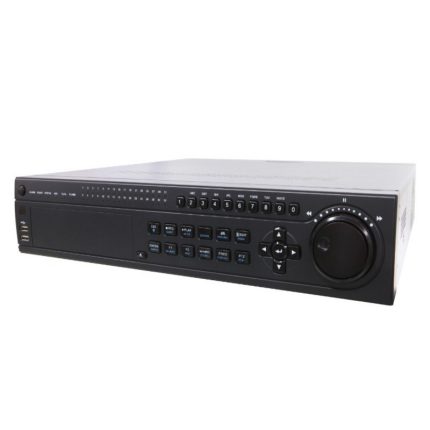

16 Channel Full3MP2U 8HDD TVI Tribrid DVR
16 Channel Full3MP2U 8HDD TVI Tribrid DVR
- H.264 ,H.264+& Dual-stream video compression
- Support HD-TVI, IPC,AHD and analog cameras withadaptive access
- Support Cloud storage(One Drive, Google Drive or Drop Box)
- Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
- Long transmission distance over coax cable
- Up to 4/8/16-ch synchronous playback at 3MP resolution
- playback at up to 256X speed.
- Support POS functions.
- Raid 1/0/5/10
- Dual network ports
| AHD input |
720p25 ,720p30 ,1080p25 ,1080p30 |
|---|---|
| Alarm in/out |
4/16 channel |
| Analog Video Input |
16-ch BNC interface (1.0 Vp-p ,75 Ω) ,supporting coaxitron connection |
| Array type |
RAID 0 ,RAID 1 ,RAID 5 ,RAID 6 ,RAID 10 |
| Audio bit rate(DVR) |
64 Kbps |
| Audio Compression |
G.711u |
| Audio Input |
16-ch RCA (2.0 Vp-p ,1 KΩ) |
| Audio output(video recorder) |
2-ch ,RCA (Linear ,1 KΩ) |
| Capacity |
Up to 6 TB capacity for each disk. |
| Consumption (without hard disks) |
≤ 65 W |
| CVBS input |
Support |
| CVBS Output |
1-ch ,BNC (1.0 Vp-p ,75 Ω) ,resolution: PAL: 704 × 576 ,NTSC: 704 × 480 |
| Dimensions |
445 × 470 × 90 mm (17.5 × 18.5 × 3.5 inch) |
| Dual stream(DVR) |
Support |
| Encoding Resolution |
3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| eSATA (optional) |
Support |
| Frame rate(video recorder) |
Main stream: 3 MP@15fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N) |
| HDMI/VGA Output |
HDMI1: 1-ch ,1920 × 1080/60Hz ,1280 × 1024/60Hz ,1280 × 720/60Hz ,1024 × 768/60Hz HDMI2: 1-ch ,4K (3840 × 2160)/30Hz ,2K (2560 × 1440)/60Hz ,1920 × 1080/60Hz ,1280 × 1024/60Hz ,1280 × 720/60Hz ,1024 × 768/60Hz |
| HDTVI input |
3 MP ,1080p25 ,1080p30 ,720p25 ,720p30 ,720p50 ,720p60 |
| IP Video Input |
2-ch (up to 18-ch) Up to 8 MP resolution H.265/H.264+/H.264 |
| Network bandwidth (Video recorder) |
260 Mbps |
| Network interface (video recorder) |
2 ,RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Network Protocols |
TCP/IP ,PPPoE ,DHCP ,Hik Cloud P2P ,DNS ,DDNS ,NTP ,SADP ,NFS ,iSCSI ,UPnP™ ,HTTPS ,ONVIF ,SNMP |
| Power Supply |
100 to 240 VAC |
| Remote Connections |
128 |
| SATA |
8 SATA interfaces |
| Serial Interface |
RS-232 ,RS-485 (full-duplex) ,Keyboard |
| Stream Type |
Video ,Video & Audio |
| Synchronous Playback |
16-ch |
| Two-way audio |
1-ch ,RCA (2.0 Vp-p ,1 KΩ) (independent) |
| USB Interface |
Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
| Video bit rate(DVR) |
32 Kbps to 10 Mbps |
| Video Compression |
H.264+/H.264 |
| Weight (without hard disks) |
≤ 8 kg (17.6 lb) |
| Working humidity (video recorder) |
10% to 90% |
| Working temperature (video recorder) |
-10 ºC to +55 ºC (14 ºF to 131 ºF) |
