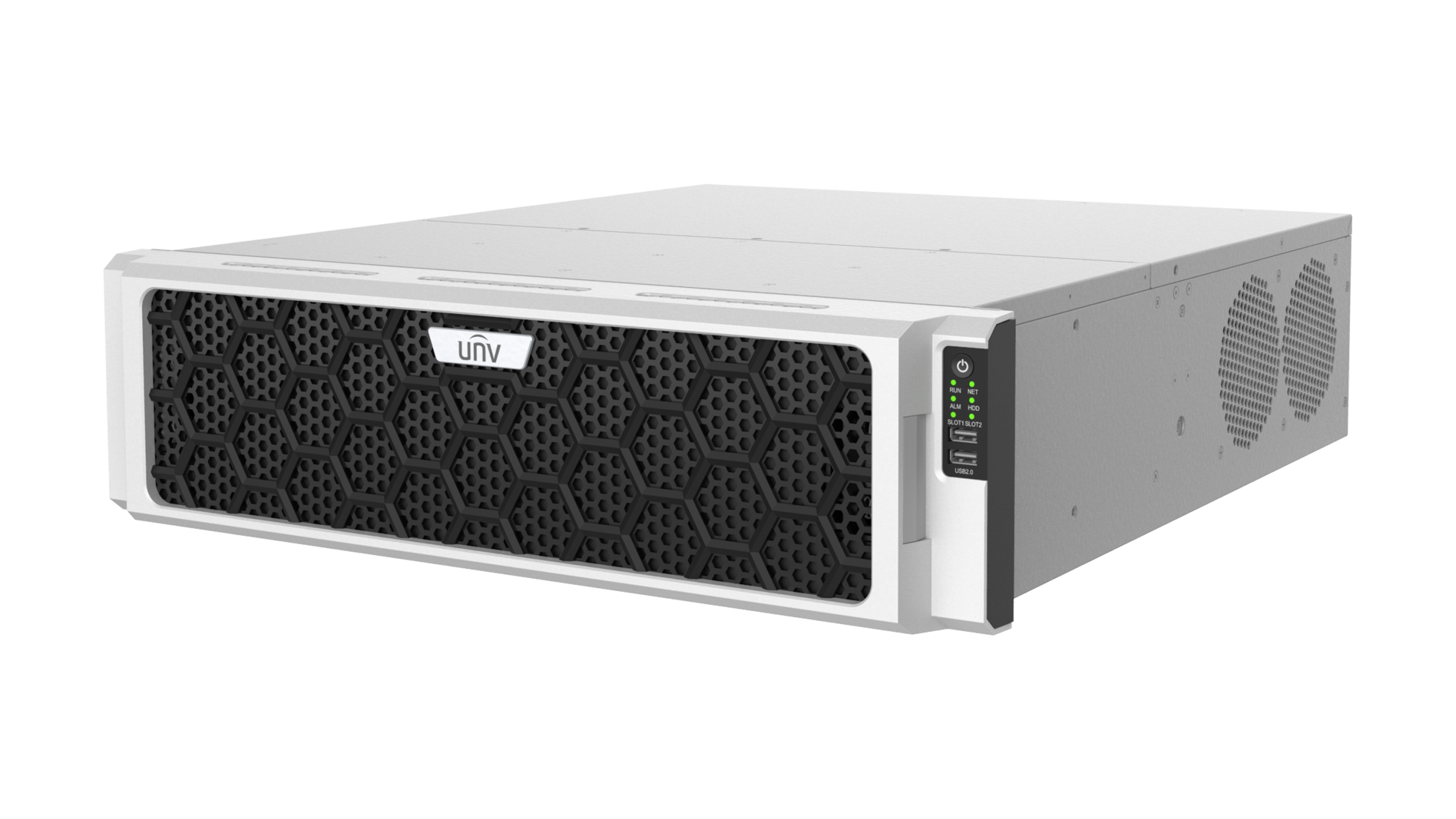

16 HDDs 64-ch 3U Network Video Recorder

SKU: NVR816-64 Category: 16 SATA Series

Support Ultra 265/H.265/H.264 video formats
64/128-channel input
Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
HDMI1, HDMI2 and VGA independent outputs provided
Up to 12 Megapixels resolution recording
Redundant power supply optional
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
Support 2 miniSAS Interfaces
Support 12V power output
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Support N+1 Hot spare

Channel	64 Channel
SATA	16 SATA Interfaces
PoE	N/A
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	3 x 12MP@25 , 4 x 4K@30 , 16 x 1080P@30 , 32 x 960P@25 , 36 x 720P@30 , 64 x D1
Decoding Capability Description	The resolution of each channel cannot exceed 4096 pixels in length or width , For VGA/HDMI independent output , the VGA live video is output by default. To output the highest resolution video from the HDMI port , please clear the VGA video on the preview page.
Incoming Bandwidth	512 Mbps
Outgoing Bandwidth	512 Mbps
Remote Users	128
Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 2 × USB2.0 , Rear panel: 2 × USB3.0
Power Supply	AC 100 to 240 V
RS485	1
RS232	1
Alarm In	24-ch
Power Consumption (without HDD)	≤ 65W
Weight (without HDD)	≤ 12.5Kg (27.56lb)
Dimensions	482mm × 533mm × 131.0mm (19.0"×21.0"×5.1")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
