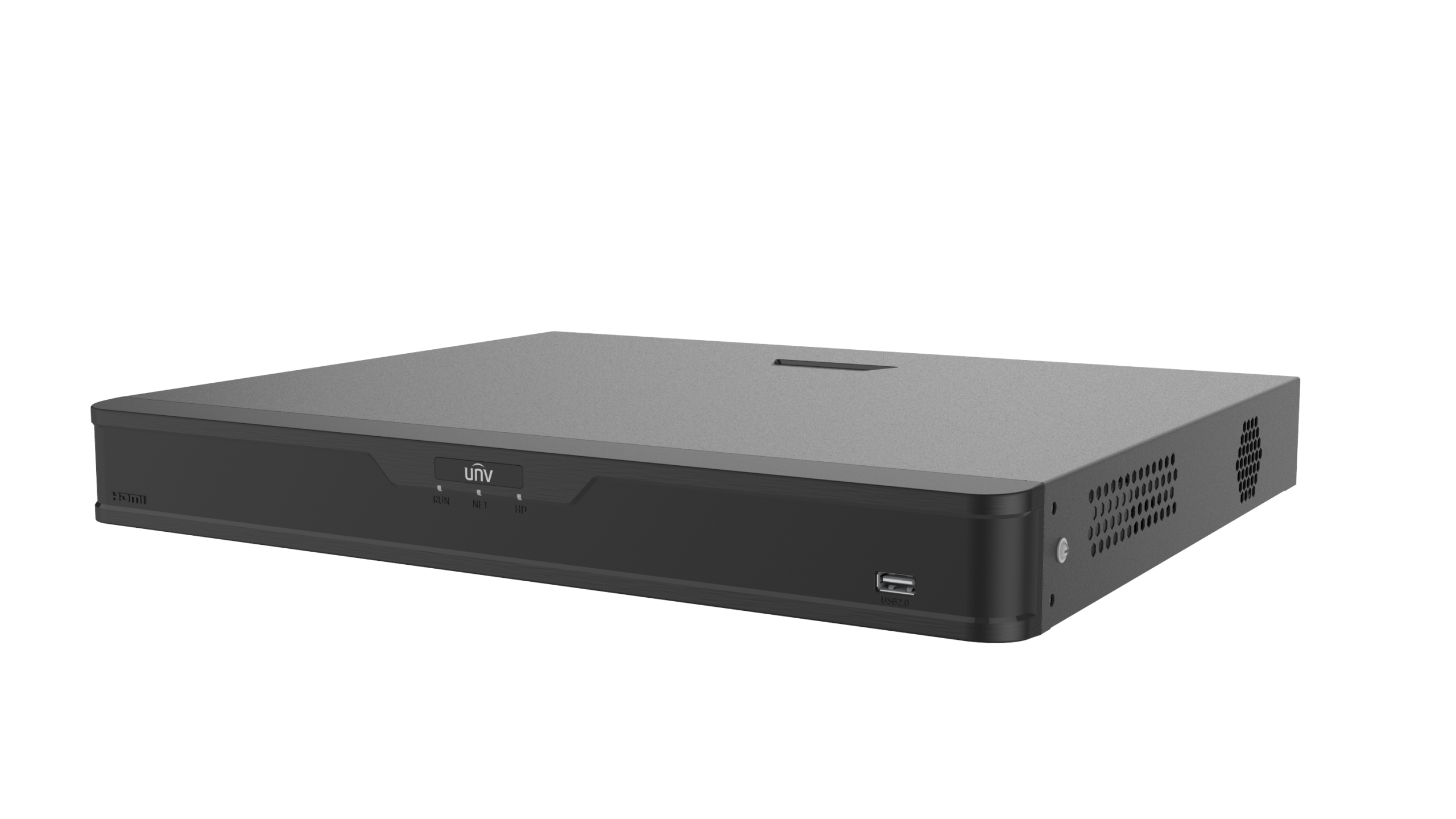

2 HDDs 16-Ch Digital Video Recorder

SKU: XVR302-16U3 Category: 2 SATA Series

Support H.265/H.264 video formats
Support audio over coaxial cable(TVI cameras)
Control the dual-light of UNV analog cameras under TVI
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
16-channel BNC input
Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
HDMI and VGA simultaneous output
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols

Channels	16 Channel
SATA	2 SATA Interfaces
PoE	N/A
IP Video Input	16-ch
Analog Video Input	16-ch , BNC
Max IP Video Input	32-ch
HDMI Output	HDMI: 4K (3840 × 2160)/30 Hz , 1920 × 1080/60 Hz , 1920 × 1080/50 Hz , 1600 × 1200/60 Hz , 1280 × 1024/60 Hz , 1280 × 720/60 Hz , 1024 × 768/60 Hz
VGA Output	VGA: 1920 × 1080/60 Hz , 1920 × 1080/50 Hz , 1600 × 1200/60 Hz , 1280 × 1024/60 Hz , 1280 × 720/60 Hz , 1024 × 768/60 Hz
Live View Display	HDMI/VGA: 1/4/6/8/9/25/32
Recording Resolution	8MP/5MP/4MP/1080P/720P/D1
Decoding Capability	Analog: 8 x 8MP@8 , 8 x 5MP@12 , 8 x 4MP@15 , 8 x 1080P@25 , 16 x 720@30 IP: 2 x 8MP@30 , 4 x 4MP@30 , 8 x 1080P@30 , 16 x 720P@30
Two-way Audio	1-ch , RCA (Using the audio input and output)
Incoming Bandwidth	80Mbps (Up to 112Mbps after all analog channel conversion)
Outgoing Bandwidth	160Mbps
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Rear panel: 1 × USB3.0 , Front panel: 1 × USB2.0
Power Supply	DC 12 V/5 A
Power Consumption (without HDD)	≤ 38W
Weight (without HDD)	≤2.3 Kg ( 5.07lb )
Dimensions	380mm × 326mm × 53mm (15.0" × 12.8"×2.1")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
