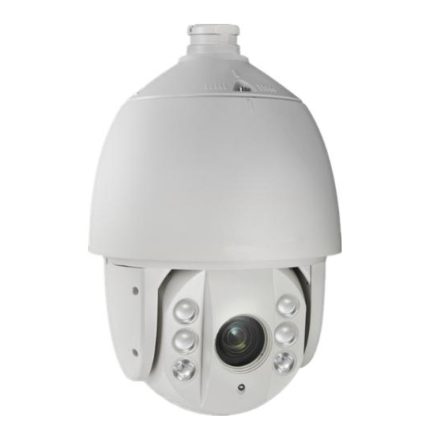

2 Megapixel Network Low Temperature IR Speed Dome

SKU: NP302A-IR/30X Category: NETWORK PTZS CAMERA

1/2.8″ progressive scan CMOS
30x optical zoom, 16x digital zoom
Smart tracking, defog, ROI encoding, HLC
Smart IR, 393.7′ IR distance 3-streams
True day/night, 3D DNR, digital WDR
3D intelligent positioning
24 VAC / High-PoE power supply

Alarm Input	7 inputs
Alarm Output	2 relay outputs , alarm response actions configurable
Alarm Trigger	Face detection , Intrusion detection , Line crossing detection , Region entrance , Region exiting , Audio exception detection , Motion detection , Audio Exception Detection , Dynamic analysis , Tampering alarm , Network disconnect , IP address conflict , Storage ex
Angle of view	65.5-2.11 degree (Wide-Tele)
Aperture range	F1.6-F5.0
Application programming	Open-ended API , support Onvif , PSIA and CGI
Audio Compression	G.711/G.726/MP2L2
Audio Input	1 Mic in/Line in interface , Line input: 2 ~ 2.4V[p-p]; output impedance: 1KΩ , ±10%
Audio Output	1 Audio output interface , Line level , impedance: 600Ω
Automatic Gain Control	Auto / Manual
Client	iVMS-4200
Communication Interface	Open-ended API , support ONVIF(Profile G) , ISAPI , and CGI Support Genetec
Day & Night	IR Cut Filter
Digital Noise Reduction	3D DNR
Dimensions	Φ245 × 399mm (Φ9.65” × 15.71”)
Effective Pixels	2230K pixels
Ethernet	10Base-T / 100Base-TX , RJ45 connector
Focal Length	4.3-129mm , 30x
Focus Control	Auto / Semiautomatic / Manual
Frame Rate	50Hz: 25fps(1920 × 1080) , 25fps (1280 × 960) , 25fps (1280 × 720) 60Hz: 30fps(1920 × 1080) , 30fps (1280 × 960) , 30fps (1280 × 720)
Image Sensor	1/2.8" Progressive Scan CMOS
Ingress Protection	IP66 (outdoor) , TVS 4 , 000V lightning protection , surge protection and voltage transient protection
IR Range	Up to 150 m
Max. Resolution	1920 × 1080
Min. Illumination	Color : 0.3 lux (F1.6 , 1/30 sec , 50 IRE , AGC On) B/W : 0.02 lux (F1.6 , 1/30 sec , 50 IRE , AGC On) 0 lux with IR Color : 0.02 lux (F1.6 , 1/1 sec , 50 IRE , AGC On) B/W : 0.002 lux (F1.6 , 1/1 sec , 50 IRE , AGC On) 0 lux with IR
Min. working distance	10-1500mm(Wide-Tele)
Number of preset	300
On-Board Storage	Built-in SD/SDHC Slot , up to 32GB , support manual / alarm / edge recording
Operating Conditions	-A: -30°C ~ 65°C(-22°F ~ 149°F) -AEL: 24 VAC: -40°C ~ 65°C (-40°F ~ 149°F) / High-PoE: -30°C ~ 65°C (-22°F ~ 149°F)
Operating Humidity	90% or less
Pan / Tilt range	Pan: 360° endless; Tilt: -2° ~ 90°(Auto Flip)
Pan / Tilt speed	Pan manual speed: 0.1° ~ 160°/s , Pan preset speed: 160°/s Tilt manual speed: 0.1° ~ 120°/s , Tilt preset speed: 120°/s
Park action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Patrol	8 patrols , up to 32 presets per patrol
Power Supply	AE: 24VAC/PoE+(802.3at) , Max18W; -AE3: 24VAC/PoE(802.3af) , Max 12W
Power-off memory	Support
Preset freezing	Support
Privacy Masking	24 privacy masks programmable , optional multiple colors and mosaics
Proportional zoom	Rotation speed can be adjusted automatically according to zoom multiples
Protocol	IPv4/IPv6 , HTTP , HTTPS , 802.1X , QoS , FTP , SMTP , UPnP , SNMP , DNS , DDNS , NTP , RTSP , RTP , TCP , UDP , IGMP , ICMP , DHCP , PPPoE
PTZ position display	Support
ROI	Support
S/N Ratio	≥ 50dB
Shutter Speed	50Hz: 1 ~ 1/30 , 000s , 60Hz: 1 ~1/30 , 000s
Simultaneous live view	Up to 20
Smart Tracking	Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger /Region exiting trigger
Video Output	BNC(1.0Vp-p/75Ω) , PAL / NTSC
Web Browser	IE 7+ , Chrome 18+ , Firefox 5.0+ , Safari 5.02+
Weight	Approx. 5.5kg(12.13Ibs
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Wide Dynamic Range	Digital WDR
Zoom speed	Approx.3s(Optical Wide-Tele)
Camera Style	Dome
