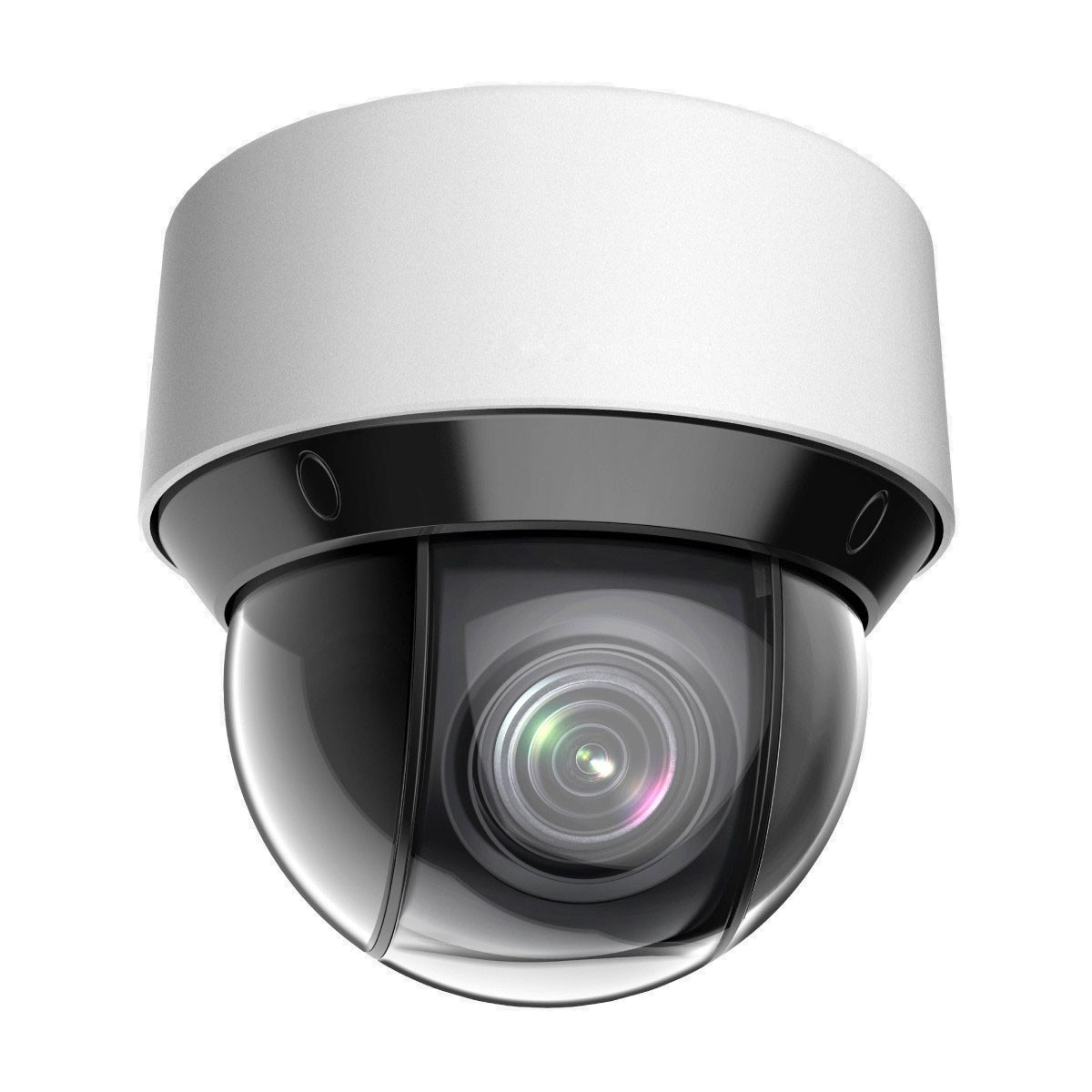

2 MP 20× Network IR PTZ Camera
2 MP 20× Network IR PTZ Camera
- 1/2.8″ progressive scan CMOS
- Up to 1920 × 1080 resolution
- Min. illumination:
- Color: 0.005 Lux @(F1.6, AGC ON)
- B/W: 0.001 Lux @(F1.6, AGC ON)
- 0 Lux with IR
- 20× optical zoom, 16× digital zoom
- 120 dB WDR, 3D DNR, HLC, BLC
- Up to 50 m IR distance
- 12 VDC & PoE+ (802.3 at, class4)
- Support H.265+/H.265 video compression
| AGC |
Auto/ Manual |
|---|---|
| Alarm Input (-A) |
2-ch alarm input |
| Alarm Output (-A) |
2-ch alarm output |
| Alarm Trigger |
Alarm actions ,such as Preset ,Patrol Scan ,Pattern Scan ,Memory Card Video Record ,Trigger Recording ,Notify Surveillance Center ,Upload to FTP/Memory Car/NAS ,Send Email ,etc. |
| Aperture range |
F1.6 to F3.5 |
| API |
Open-ended ,supporting ONVIF ,PSIA and CGI ,supporting HIKVISION SDK and Third-Party Management Platform ,supporting Hik Cloud P2P |
| Audio Compression |
G.711alaw/ G.711ulaw/ G.722.1/ G.726/ MP2L2/PCM |
| Audio Input |
1-ch audio input |
| Audio Output |
1-ch audio output |
| BLC |
Support |
| Client |
iVMS-4200 |
| Day & Night |
Auto ICR |
| Digital Zoom |
16× |
| Dimensions |
Φ169.39mm ×161mm (Φ6.67"×6.34") |
| Digital Noise Reduction |
3D DNR |
| Electronic Shutter Speed |
1/1 to 1/30 ,000s |
| Exposure Mode |
Regional Exposure |
| Focal Length |
4.7 to 94mm ,20× Optical |
| Focus Control |
Auto/ Semi-automatic/ Manual |
| FOV |
61.4° to 2.9° (wide-tele) |
| Image Sensor |
1/2.8" progressive scan CMOS |
| Installation |
Variable installation methods optional ,including ceiling mounting (default) ,in-ceiling mounting ,junction box installation and wall mounting |
| IR Distance |
Up to 50m |
| IR Intensity |
Automatically adjusted ,depending on the zoom ratio |
| Main Stream |
50Hz: 25fps (1920 × 1080 ,1280 × 960 ,1280 × 720) ,50fps (1920 × 1080 ,1280 × 960 ,1280 × 720); 60Hz: 30fps (1920 × 1080 ,1280 × 960 ,1280 × 720) ,60fps (1920 × 1080 ,1280 × 960 ,1280 × 720) |
| Max. Resolution |
1920 × 1080 |
| Memory |
Built-in memory card slot ,supporting Micro SD/SDHC/SDXC ,up to 128GB |
| Min. Illumination |
Color: 0.05 Lux @ (F1.6 ,AGC ON) B/W: 0.01 Lux @ (F1.6 ,AGC ON) 0 Lux with IR |
| Min. working distance |
10 to 1500mm (wide-tele) |
| Network Interface |
1 RJ45 10M/100M Ethernet Interface; POE (802.3at ,class4) |
| Network Protocols |
IPv4/IPv6 ,HTTP ,HTTPS ,802.1x ,Qos ,FTP ,SMTP ,UPnP ,SNMP ,DNS ,DDNS ,NTP ,RTSP ,RTCP ,RTP ,TCP/IP ,DHCP ,PPPoE ,Bonjour |
| Operating Humidity |
≤ 90% |
| Pan / Tilt range |
360° endless/From -5° to 90° |
| Pan / Tilt speed |
Configurable ,from 0.1°/s to 300°/s Preset Speed: 350°/s // Configurable ,from 0.1°/s to 160°/s Preset Speed: 200°/s |
| Park action |
Preset/ Pattern Scan/ Patrol Scan/ Auto Scan / Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan |
| Patrol |
8 patrols ,up to 32 presets for each patrol |
| Pattern |
4 pattern scans ,record time over 10 minutes for each scan |
| Power Supply |
DC 12V and PoE (802.3at ,class4) Max.: 18W (IR light 5W Max.) |
| Power-off memory |
Support |
| Preset |
300 |
| Preset freezing |
Support |
| Privacy Masking |
8 programmable privacy masks |
| Proportional zoom |
Support |
| Protection |
IP66 Standard; TVS 4000V Lightning Protection ,Surge Protection and Voltage Transient Protection |
| PTZ position display |
ON/ OFF |
| Scheduled Task |
Preset/ Pattern Scan/ Patrol Scan/ Auto Scan / Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/ Dome Reboot/ Dome Adjust |
| Security Measures |
User authentication (ID and PW) ,Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Simultaneous live view |
Up to 20 channels |
| Sub‐Stream |
50Hz:25fps (704×576 ,640×480 ,352 × 288); 60Hz:30fps (704×480 ,640×480 ,352 × 240) |
| Third Stream |
50Hz: 25fps (1920 × 1080 ,1280 × 960 ,1280 × 720 ,704 × 576 ,640×480 ,352 × 288); 60Hz: 30fps (1920 × 1080 ,1280 × 960 ,1280 × 720 ,704 × 480 ,640×480 ,352 × 240) |
| User/Host Level |
Up to 32 users 3 levels: Administrator ,Operator and User |
| Video Compression |
H.264/ MJPEG |
| WDR |
Support |
| Web Browser |
IE7+ ,Chrome18+ ,Firefox5.0+ ,Safari5.02+ |
| Weight |
Approx. 2.45kg (5.40lb) |
| White Balance |
Auto/ Manual/ ATW (Auto Tracing White Balance)/ Indoor/ Outdoor/ Fluorescent lamp/ Sodium lamp |
| Working Environment |
Outdoor: -30°C to 65°C (-22°F to 149°F) |
| Zoom speed |
Approx. 2.7s (optical lens ,wide-tele) |
Related Firmware
| Firmware | Description | File | Download |
|---|---|---|---|
| NP1A12-IR | 25X_R7_EN_NEU_5.5.3_180822 | Download |
