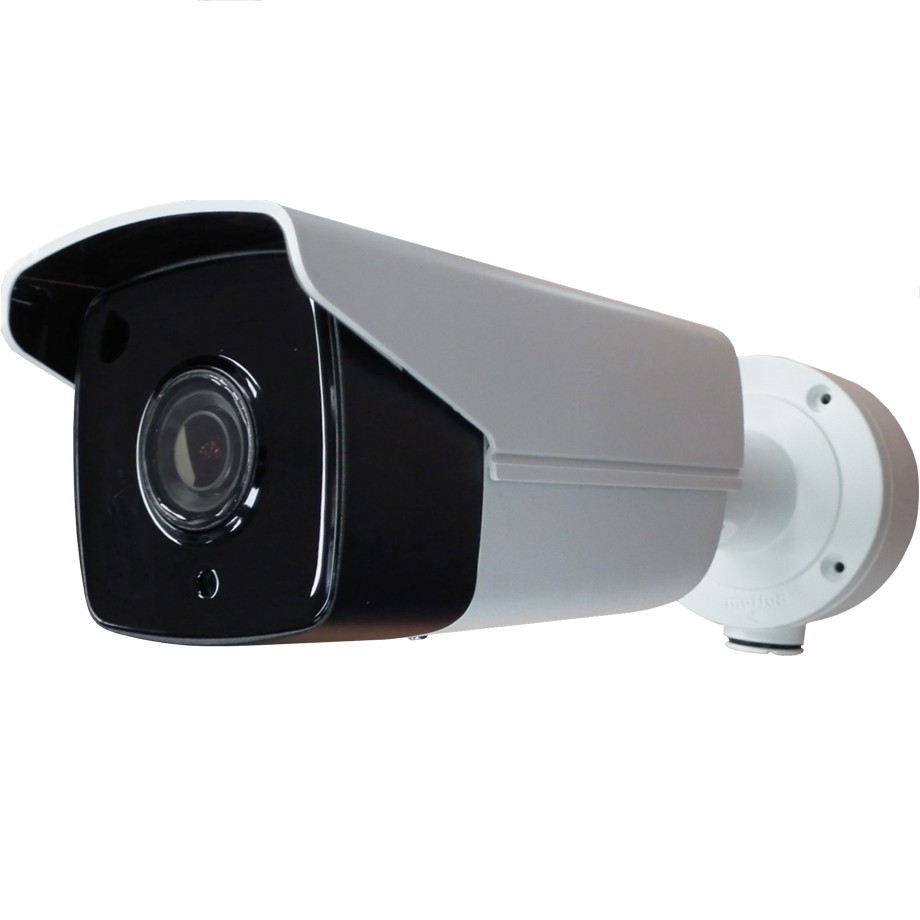

2MP Low Light Smart Bullet LPR Camera

WINIC

2MP Low Light Smart Bullet LPR Camera

Add to wishlist
Add to compare
SKU: NC512-VBA32-LPR Categories: , Tag:

Face detection recognition

  • 1/1.8” Progressive Scan
  • CMOS Full HD1080p video
  • Up to 60fps frame rate
  • Ultra-low light
  • Slow shutter
  • 3D DNR
  • Up to 50m IR Range
  • Motorized Lens With Smart Focus
  • H: Built-in Heater
  • S: Audio/Alarm IO
  • Support 128G on-board Storage DC12V/PoE IP67
  • Support ANR
Alarm Interface

1 input

,

1 output (up to DC24V 1A or AC110V 500mA )
Alarm Trigger

Motion detection

,

Tampering alarm

,

Network disconnect

,

IP address conflict

,

Storage exception
Audio Bit Rate

64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Audio input / output

Support dual audio track

,

stereo
Audio Interface

1-ch 3.5 mm audio in( Mic in/Line in)/out interface
Audio Sampling Rate

16kHz / 32kHz / 44.1kHz / 48kHz
Auto iris

DC drive
Behavior Analysis

Line crossing detection

,

Intrusion detection

,

Region entrance

,

Region exiting

,

Unattended baggage

,

Object removal
Communication Interface

1 RJ45 10M/100M Ethernet port
Compression (audio)

G.711/G.722.1/G.726/MP2L2
Day & Night

Auto/Schedule/Triggered by Alarm In
Dimensions

100×103.9×311.8 mm (3.94” × 4.09” × 12.28”)
Distortion Correction

Support
Electronic Shutter Speed

1s ~ 1/100

,

000s
Environment Noise Filtering

Support
Exception Detections

Scene change detection

,

Sudden audio increase/decrease detection

,

Audio loss detection

,

Defocus detection
Frame Rate

50Hz: 50fps(1920 × 1080

,

1280 × 960

,

1280 × 720) 60Hz: 60fps (1920 × 1080

,

1280 × 960

,

1280 × 720)
H.264 Type

Baseline Profile / Main Profile / High Profile
Image Enhancement

BLC/3D DNR/ROI/Defog/EIS
Image Sensor

1/2.8’’ Progressive Scan CMOS
Image Settings

Rotate Mode

,

Saturation

,

Brightness

,

Contrast

,

Sharpness adjustable by client software or web browser
Info. Overlay

Camera No.

,

camera info.

,

capture time

,

plate info.
Integration

ONVIF: Capture time & License plate info. accessible GENETEC: Capture time & License plate info. accessible SDK & ISAPI: Capture time

,

License plate info.

,

License plate & vehicle picture accessible
Intrusion Detection

Enter and loiter in a pre-de_x001F_ned virtual region
IR Distance

Up to 50m
Lens Size

8~32mm
Lens Mount

AF automatic focusing and motorized zoom lens
Line Crossing Detection

Cross a pre-de_x001F_ned virtual line
LPR Image Setting

Picture quality & size configurable
LPR Setting

Recognition area & Country configurable

,

recognition accuracy: 96% (Speed Support up to:70km/h)
Max. Resolution

1920 × 1080
Min. Illumination

0.002 Lux @ (F1.2

,

AGC ON)

,

0.0027 Lux @ (F1.4

,

AGC ON)

,

0 Lux with IR
Network Protocols

TCP/IP

,

UDP

,

ICMP

,

HTTP

,

HTTPS

,

FTP

,

DHCP

,

DNS

,

DDNS

,

RTP

,

RTSP

,

RTCP

,

PPPoE

,

NTP

,

UPnP

,

SMTP

,

SNMP

,

IGMP

,

802.1X

,

QoS

,

IPv6

,

Bonjour
Network Storage

NAS (Support NFS

,

SMB/CIFS)

,

ANR
Object Removal Detection

Objects removed from the pre-de_x001F_ned region

,

such as the exhibits on display.
On-Board Storage

Built-in Micro SD/SDHC/SDXC slot

,

up to 128 GB
Operating Conditions

-30°C – 60 °C (-22 °F – 140 °F)

,

Humidity 95% or less (non-condensing); -H: -40°C – 60 °C
OSD Setting

Font & Background color configurable
Picture Overlay

LOGO picture can be overlaid on video with 128×128 24bit bmp format
Power Consumption

Max. 12 W
Power Supply

12 V DC ± 10%

,

PoE (802.3af)
Protection

IP67
Recognition

Face detection recognition
Region Entrance

Enter a pre-de_x001F_ned virtual region from the outside place
Region Exiting

Exit from a pre-de_x001F_ned virtual region
Regional Cropping

Support
Reset Button

Yes
Security

User Authentication

,

Watermark

,

IP address filtering

,

Anonymous access
Slow Shutter

Support
Standard

ONVIF(PROFILE S

,

PROFILE G)

,

PSIA

,

CGI

,

ISAPI
Statistics

Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
Third Stream

Independent with Main Stream and Sub Stream

,

up to 50Hz: 25fps(1920 × 1080); 60Hz: 30fps (1920 × 1080)
Unattended Baggage Detection

Objects left over in the pre-de_x001F_ned region such as the baggage

,

purse

,

dangerous materials
Video Bit Rate

32 Kbps – 16 Mbps
Video Compression

H.264/MPEG4/MJPEG
Video Output

1Vp-p composite output (75 _x001E_/BNC)
WDR

120dB
Weight

2000 g (4.41 lbs)

Datasheet

Related Firmware

FirmwareDescriptionFileDownload
NC512-VBA12/32-LPRIPC_R3_EN_NEU_5.4.83_180817Download
