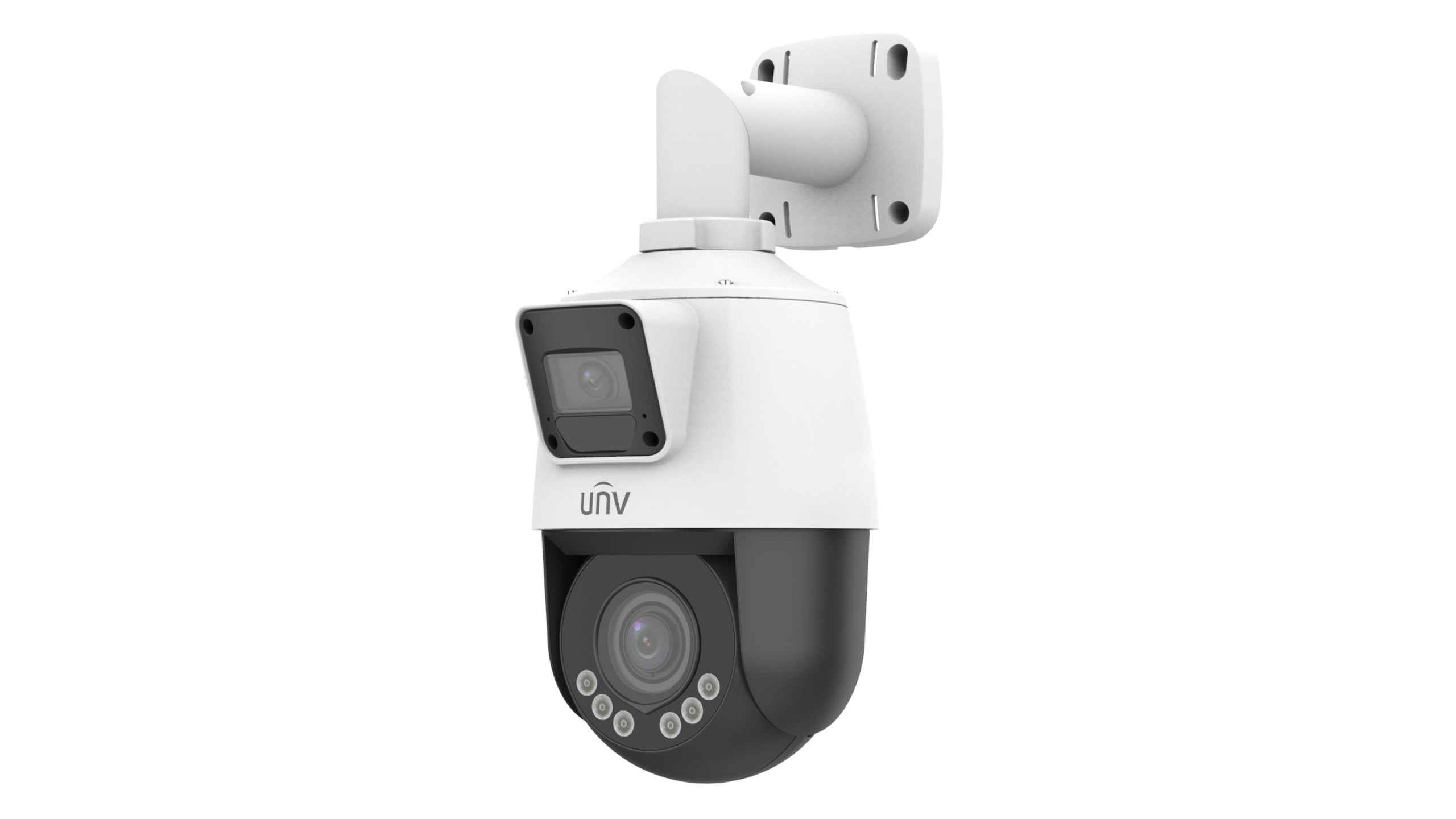

2MP+2MP 4X ColorHunter MultiView Dual-light Network PTZ Camera

SKU: IPC9312LFW-AF28-2X4 Category: Easy series

Fixed camera and PTZ camera integration, dual-channel with one IP, provides overall view and detailed view at the same time
High quality image with 1080P, 1/2.8″ CMOS sensor
1920 × 1080@25 fps in the main stream
Ultra 265, H.265, H.264, MJPEG
4X optical zoom of PTZ channel allows for closer viewing of subjects
Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule
LightHunter technology ensures ultra-high image quality in low illumination environment
Up to 120 dB optical WDR (wide dynamic range)
Built-in dual-mic and high-power speaker, supports two-way audio, has better sound performance
Supports ceiling mount and wall mount
IR and warm light illumination to deal with different scenes and achieve full-color illumination
DC 12 V, PoE+ (IEEE 802.3at) power supply

Camera Resolutions	2 MP
WDR	120 dB
Sensor	1/2.8" CMOS
Wavelength	850 nm
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual , 1 to 1/100000 s
Light On/Off Control	Auto/Manual
S/N	>52 dB
Defog	Digital defog
White Balance	Auto , Outdoor , Fine tune , Sodium lamp , Locked , Auto2
Digital Noise Reduction	2D/3D DNR
Video Bit Rate	128 Kbps to 16 Mbps
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Edge Storage	MicroSD , up to 512 GB
Network Storage	ANR , NAS (NFS)
Audio	Built-in Microphone
Interface Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Power	DC 12 V , PoE+ (IEEE 802.3at)
Power Consumption	Max. 16 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Wall Mount: 192 mm × 134 mm × 302 mm (7.6" × 5.3" × 11.9") (L × W × H) Ceiling Mount: 154 mm × 134 mm × 363 mm (6.1" × 5.3" × 14.3") (L × W × H)
Weight	1.03 kg (2.27 lb.)
Reset Button	Support
Surge Protection	2 KV
Camera Style	Dome
