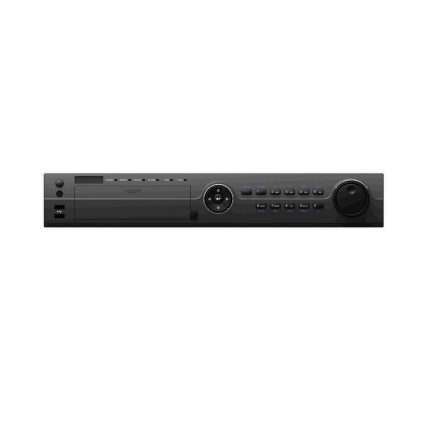

32 Channel H.265+ 4MP Lite 1.5U 4HDD TVI Tribrid DVR
32 Channel H.265+ 4MP Lite 1.5U 4HDD TVI Tribrid DVR
- Typical chassis design to guarantee the low noise and environmental protection of the device
- Front slot for insertion of DVD-R/W with bracket to make it more convenient to install and maintain
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Up to 6 MP IP cameras input
- Long distance transmission over UTP and coaxial cable
- H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
- Connectable to H.265+/H.265/H.264+/H.264 IP cameras
- H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
- Supports 4 MP lite
- Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
- Supports POS triggered recording and POS information overlay
- Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
- Separate CVBS output
- Four SATA interfaces (up to 8 TB capacity per HDD) and 1 eSATA interface
- 16-ch synchronous playback
- Smart search for efficient playback
- Supports playback by main stream, or sub-stream for IP cameras
- Supports third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
- Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
- Supports 4-ch line crossing detection and intrusion detection, and 1-ch sudden scene change detection
- VQD (Video Quality Diagnostics)
- Supports PTZ control via Omnicast VMS of Genetec protocol
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- One RJ45 10M/100M/1000M Ethernet network interface
- Output bandwidth limit configurable
| AHD input |
4 MP ,1080p25 ,1080p30 ,720p25 ,720p30 |
|---|---|
| Analog Video Input |
32-ch BNC interface (1.0 Vp-p ,75 Ω) ,supporting coaxitron connection |
| Audio Bit Rate |
64 Kbps |
| Audio Compression |
G.711u |
| Audio Input |
4-ch ,RCA (2.0 Vp-p ,1 KΩ) |
| Audio Output |
1-ch ,RCA (Linear ,1 KΩ) |
| Capacity |
Up to 8 TB capacity for each disk |
| Consumption (without hard disks) |
≤ 45 W |
| CVBS input |
PAL/NTSC |
| CVBS Output |
1-ch ,BNC (1.0 Vp-p ,75 Ω) ,resolution: PAL: 704 × 576 ,NTSC: 704 × 480 |
| Dimensions |
440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch) |
| Dual Stream |
Support |
| Encoding Resolution |
When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
| eSATA (optional) |
Support |
| Frame Rate |
Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p/720p@15fps; 720p |
| HDCVI input |
1080p25 ,1080p30 ,720p25 ,720p30 |
| HDMI/VGA Output |
HDMI1/VGA:1-ch ,1920 × 1080/60Hz ,1280 × 1024/60Hz ,1280 × 720/60Hz ,1024 × 768/60Hz HDMI2: 1-ch ,4K (3840 × 2160)/30Hz ,2K (2560 × 1440)/60Hz ,1920 × 1080/60Hz ,1280 × 1024/60Hz ,1280 × 720/60Hz ,1024 × 768/60Hz |
| HDTVI input |
4 MP ,3 MP ,1080p25 ,1080p30 ,720p25 ,720p30 ,720p50 ,720p60 Note: The 3 MP signal input is only available for channel 1/2/3/4. |
| IP Video Input |
8-ch (up to 40-ch) Up to 6 MP resolution Supports H.265+/H.265/H.264+/H.264 IP cameras |
| Network Interface |
1 ,RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Network Protocols |
TCP/IP ,PPPoE ,DHCP ,Hik-Connect ,DNS ,DDNS ,NTP ,SADP ,NFS ,iSCSI ,UPnP™ ,HTTPS ,ONVIF |
| Power Supply |
100 to 240 VAC |
| Remote Connections |
128 |
| SATA |
4 SATA interfaces |
| Serial Interface |
RS-232 ,RS-485 (full-duplex) ,Keyboard |
| Stream Type |
Video ,Video & Audio |
| Synchronous Playback |
16-ch |
| Two-way audio input |
1-ch ,RCA (2.0 Vp-p ,1 KΩ) (independent) |
| USB Interface |
Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
| Video Bit Rate |
32 Kbps to 6 Mbps |
| Video Compression |
H.265+/H.265/H.264+/H.264 |
| Weight |
≤ 7 kg (15.4 lb) |
| Working humidity (video recorder) |
10% to 90% |
