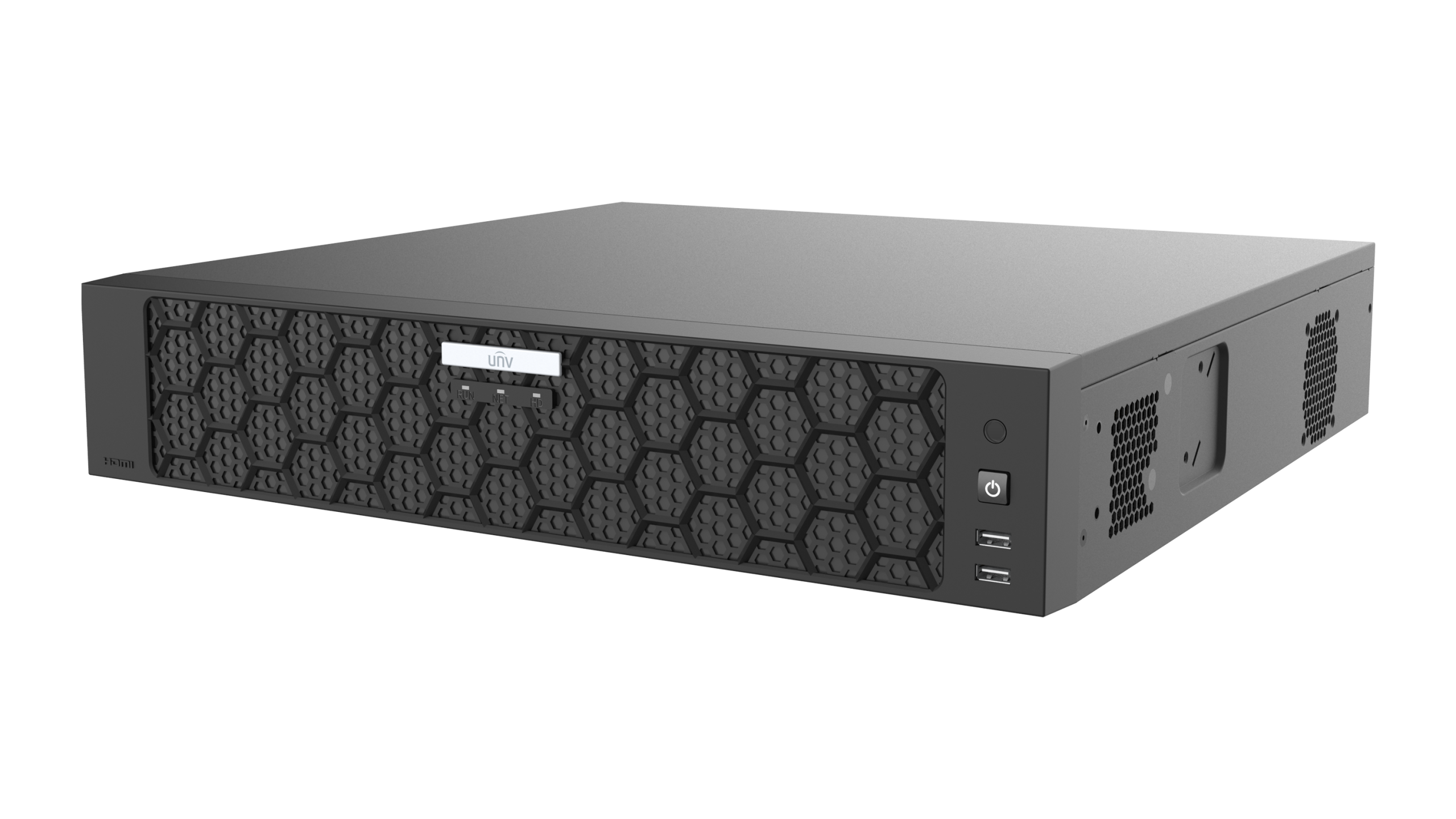

4 HDDs 16-ch 16 PoE 2U Network Video Recorder

SKU: NVR504-16E-P16-IQ Category: 4 SATA Series

Support Ultra 265/H.265/H.264 video formats
16/32/64-channel input
Plug & Play with 16/24 independent PoE network interfaces
Support 2-ch HDMI, 2-ch VGA. HDMI up to 4K (3840×2160) resolution
VGA and HDMI independent output
Up to 32 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Channels	16 Channel
SATA	4 SATA Interfaces
PoE	16
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	Smart Off: 2 x 32MP@30 , 4 x 16MP@30 , 5 x 12MP@30 , 8 x 4K@30 , 10 x 6MP@30 , 12 x 5MP@30 , 16 x 4MP@30 Smart On: 1 x 32MP@30 , 3 x 16MP@30 , 4 x 12MP@30 , 6 x 4K@30 , 8 x 6MP@30 , 9 x 5MP@30 , 12 x 4MP@30 , 16 x 3MP@30
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length or width
Incoming Bandwidth	Smart Off: 384 Mbps , Smart On: 200 Mbps
Outgoing Bandwidth	Smart Off: 384 Mbps , Smart On: 200 Mbps
Remote Users	128
Recording Resolution	32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)
Network Interface	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 2 × USB2.0 , Rear panel: 2 × USB3.0
Power Supply	AC 100 to 240 V
PoE Interface	16 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power	Max 30 W for single port , Max 150 W in total
Supported Standard	IEEE 802.3at , IEEE 802.3af
Power Consumption (without HDD)	≤50W
Weight (without HDD)	≤5.5KG
Dimensions	442mm × 432.9mm × 88.6mm (17.4" ×17" ×3.5" )
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
