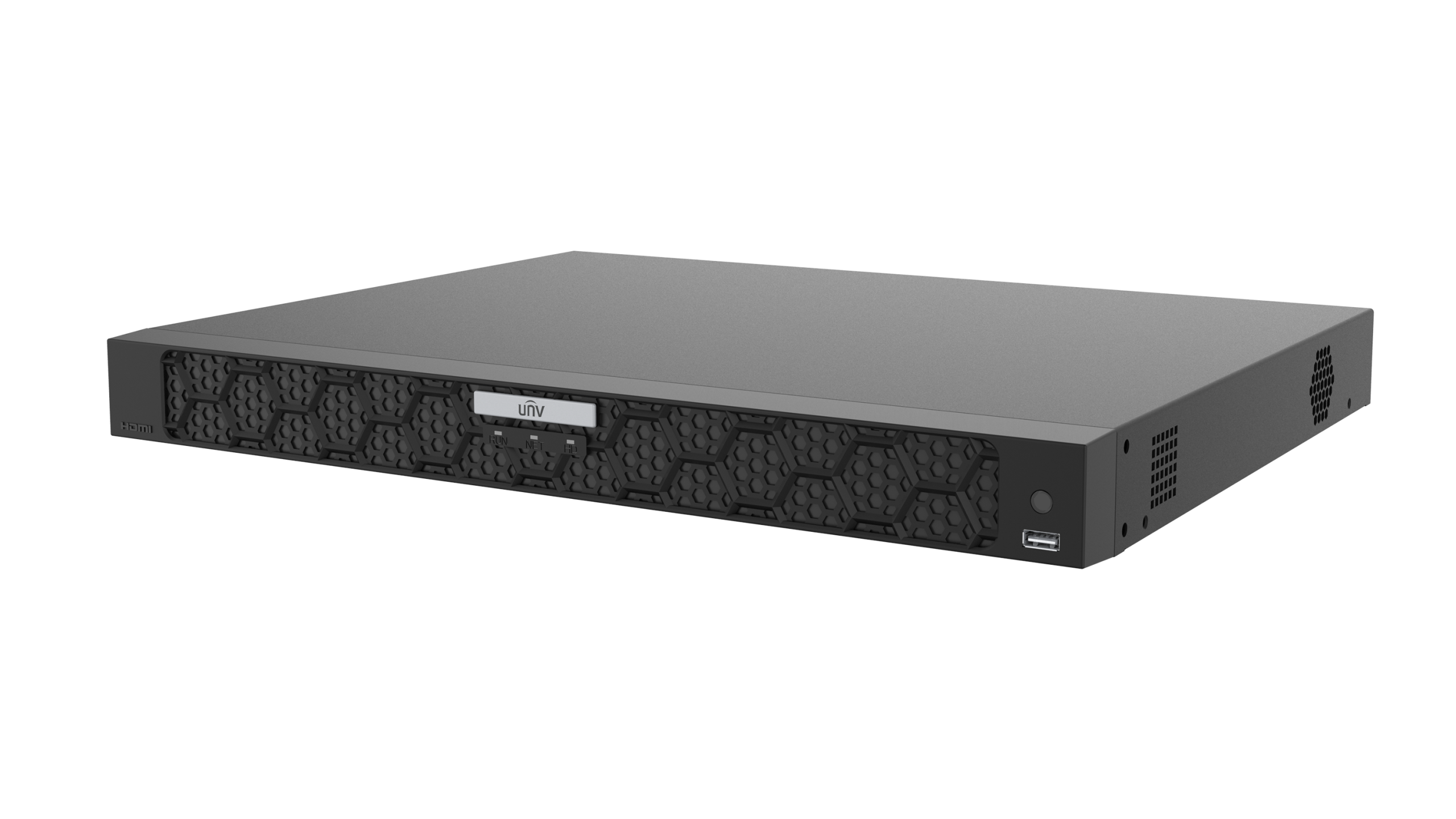

4 HDDs 32-ch 1U Network Video Recorder

SKU: NVR504-32B-IQ Category: 4 SATA Series

Support Ultra 265/H.265/H.264 video formats
16/32-channel input
Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840×2160) resolution
VGA and HDMI independent output
Up to 16 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Channels	32 Channel
SATA	4 SATA Interfaces
PoE	N/A
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	Smart Off：2 x 16MP@30 , 2 x 12MP@30 , 4 x 4K@30 , 8 x 4MP@30 , 10 x 3MP@30 , 16 x 1080P@30 , 32 x 720P@30 Smart On：2 x 12MP@30 , 2 x 4K@30 , 6 x 4MP@30 , 8 x 3MP@30 , 12 x 1080P@30 , 24 x 720P@30 , 32 x D1
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width , For VGA/HDMI independent output , the VGA live video is output by default. To output the highest resolution video from the HDMI port , please clear the VGA video on the preview page.
Incoming Bandwidth	Smart Off：320Mbps Smart On：160Mbps
Outgoing Bandwidth	160 Mbps
Remote Users	128
Recording Resolution	16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 1 × USB2.0 , Rear panel: 1 × USB2.0 , 1 × USB3.0
Power Supply	DC 12 V/5 A
Power Switch	Support
RS485	1
RS232	N/A
Power Consumption (without HDD)	≤ 12W
Weight (without HDD)	≤ 3.4Kg (7.5lb)
Dimensions	440mm × 344mm × 48mm (17.3"×13.5"×1.9")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
