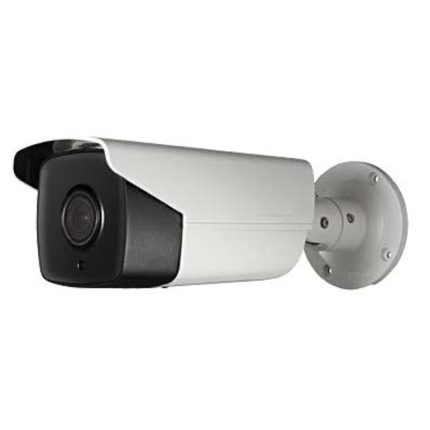

4 MP IR VF Bullet Network Camera

SKU: NC324-VBZ Categories: NETWORK CAMERAS, WINIC

1/3″ Progressive Scan CMOS
2560 × 1440@30fps
2.8 to 12 mm Varifocal lens
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
H.265+, H.265, H.264+, H.264
Three streams
120dB WDR
2 behavior analyses, and face detection
BLC/3D DNR/ROI
IP67, IK10
Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
3-Axis adjustment

3‐Axis Adjustment	Pan: 0° to 360° , tilt: 0° to 90° , rotate: 0° to 360°
Alarm Interface	1 input , 1 output (up to 12 VDC , 30 mA) , terminal block
Alarm Trigger	Motion detection , video tampering , network disconnected , IP address conflict , illegal login , HDD full , HDD error
API	ONVIF (PROFILE S , PROFILE G) , ISAPI
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32‐192Kbps(MP2L2)
Audio Interface	1 input (line in/mic.in , 3.5 mm) , 1 output (line out , 3.5 mm) , mono sound
Audio Sampling Rate	16 kHz/32 kHz/44.1 kHz/48 kHz
Auto iris	No
Behavior Analysis	Line crossing detection , intrusion detection
Client	iVMS‐4200 , Hik‐Connect , iVMS‐5200
Communication Interface	1 RJ45 10M/100M self‐adaptive Ethernet port
Compression (audio)	G.711/G.722.1/G.726/MP2L2/PCM
Day & Night	IR Cut Filter
Day/night Switch	Auto/Schedule/Triggered by alarm in
Digital Noise Reduction	3D DNR
Dimensions	Φ 144.13 × 332.73 mm (Φ 5.7" × 13.1")
Electronic Shutter Speed	1/3 s to 1/100 , 000 s
Environment Noise Filtering	Yes
Face Detection	Yes
Focal Length	2.8 to 12 mm
Focus Control	Auto
FOV	horizontal FOV: 98° to 28° vertical FOV: 51° to 16° diagonal FOV: 115° to 32°
General Function	One‐key reset , anti‐flicker , three streams , heartbeat , mirror , password protection , privacy mask , watermark , IP address filter
H.264 Type	Main Profile/High Profile
H.264+	Main stream and sub‐stream support
H.265 Type	Main Profile
H.265+	Main stream and sub‐stream support
Image Enhancement	BLC/3D DNR
Image Sensor	1/3" Progressive Scan CMOS
Image Settings	Rotate mode , saturation , brightness , contrast , sharpness adjustable by client software or web browser
IR Range	Up to 50 m
Lens Mount	Φ14
Main Stream	50Hz:25fps (2560 × 1440 , 2304 × 1296 , 1920 × 1080) 60Hz: 30fps (2560 × 1440 , 2304 × 1296 , 1920 × 1080)
Material	Metal
Max Aperture	F1.6
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.01 Lux @ (F1.2 , AGC ON) , 0.018 Lux @ (F1.6 , AGC ON) , 0 Lux with IR
Network Protocols	TCP/IP , ICMP , HTTP , HTTPS , FTP , DHCP , DNS , DDNS , RTP , RTSP , RTCP , PPPoE , NTP , UPnP™ , SMTP , SNMP , IGMP , 802.1X , QoS , IPv6 , Bonjour
Network Storage	Support Micro SD/SDHC/SDXC card (128G) , local storage and NAS (NFS , SMB/CIFS) , ANR
On-Board Storage	Built‐in Micro SD/SDHC/SDXC slot , up to 128 GB
Operating Conditions	‐30 °C to +60 °C (‐22 °F to +140 °F) , Humidity 95% or less (non‐condensing)
Power Consumption	12 VDC , 1.2A , max. 14.5W PoE (802.3at , 42.5V to 57V) , 0.43A to 0.3A , max. 18W
Power Supply	12 VDC ± 25% , terminal block PoE (802.3at , class 4)
Protection	IP67 , IK10 TVS 2000V Lightning Protection , Surge Protection and Voltage Transient Protection
Region of Interest	1 fixed region for main stream and sub‐stream
Reset Button	Yes
Simultaneous Live View	Up to 6 channels
Slow Shutter	Yes
Sub‐Stream	50Hz: 25fps (640 × 480 , 640 × 360 , 320 × 240) 60Hz: 30fps (640 × 480 , 640 × 360 , 320 × 240)
SVC	H.264 and H.265 encoding
Target Cropping	No
Third Stream	50Hz: 25fps (1280 × 720 , 640 × 360 , 352 × 288) 60Hz: 30fps (1280 × 720 , 640 × 360 , 352 × 240)
User/Host Level	Up to 32 users 3 levels: Administrator , Operator and User
Video Bit Rate	32 Kbps to 16 Mbps
Video Compression	Main stream: H.265/H.264 Sub‐stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Output	1Vp‐p Composite Output(75Ω/BNC)
Wavelength	850nm
Web Browser	IE8+ , Chrome 31.0‐44 , Firefox 30.0‐51 , Safari 8.0+
Weight	Camera: Approx. 1740 g (3.8 lb.) With Package: Approx. 2610 g (5.8 lb.)
Wide Dynamic Range	120dB
Camera Style	Bullet
