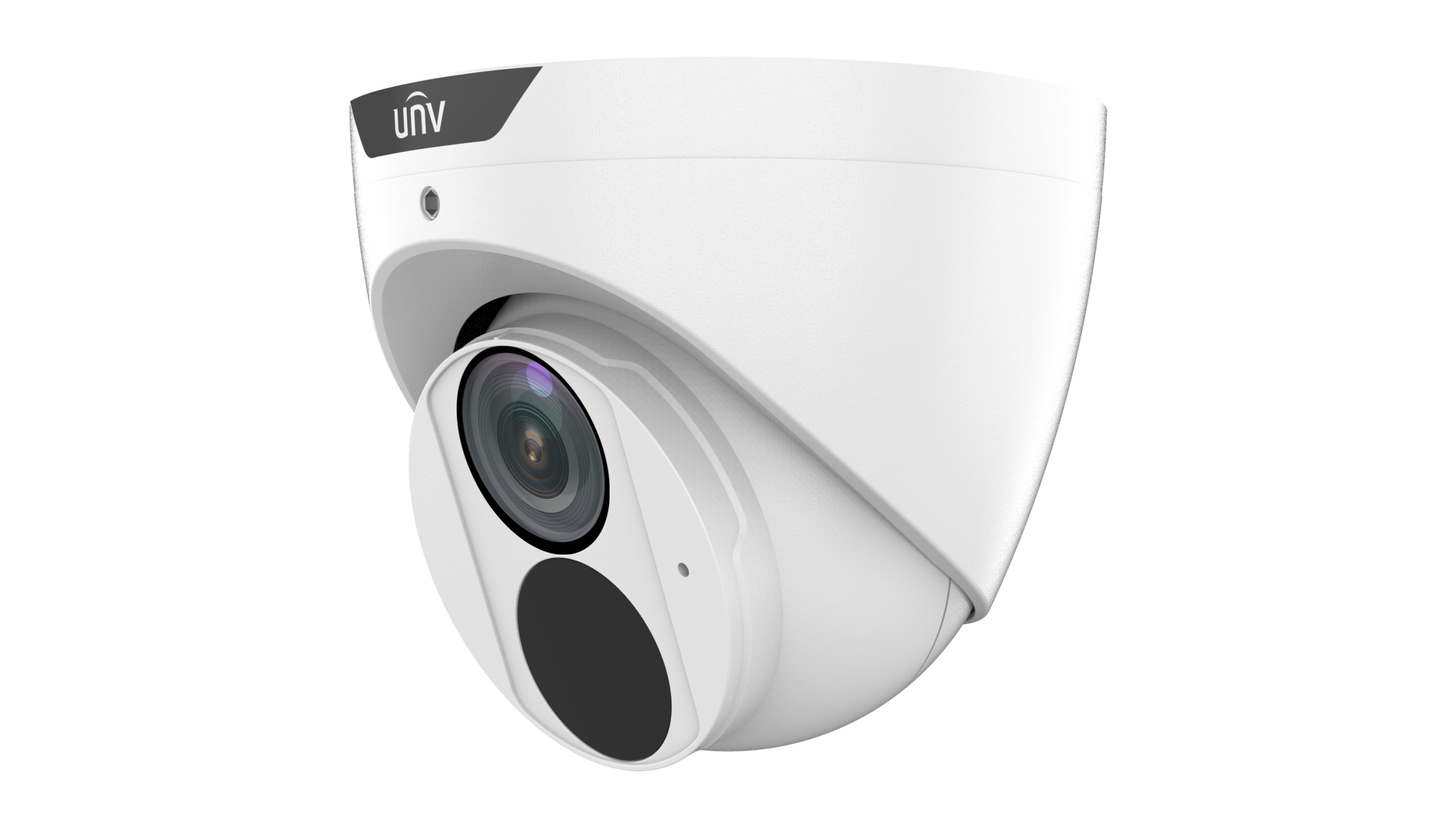

4MP LightHunter Fixed IR Turret Network Camera

SKU: IPC3614SB-ADF40KM-I0 Category: SB-I0

High quality image with 4 MP, 1/3.0″ CMOS sensor
4 MP (2688 × 1520)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
Intelligent people flow counting and crowd density monitoring
LightHunter technology ensures ultra-high image quality in low illumination environment
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic
Smart IR, up to 30 m (98.4 ft) IR distance
MicroSD, up to 512 GB
IP67 protection

Lens Size	4mm
Lens Type	Fixed Lens
WDR	120 dB
Protection	IP67
Camera Resolutions	4 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.002 Lux (F1.6 , AGC ON) , 0 Lux with light
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual , 1 ~ 1/100000s
Adjustment Angle	Pan: 0° to 360° , Tilt: 0° to 80° , Rotate: 0° to 360°
S/N	>52 dB
Iris	F1.6
Illumination Distance (IR)	30 m (98.4 ft)
Wavelength	850nm
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	MicroSD , up to 512 GB
Network Storage	ANR , NAS (NFS)
Interface Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Power	DC 12 V±25% , PoE (IEEE 802.3af)
Power Consumption	Max. 4.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø110.5 mm × 94.1 mm (Ø4.4" × 3.7") (Ø × H)
Weight	0.42 kg (0.93 lb)
Material	Metal
Surge Protection	4 KV
