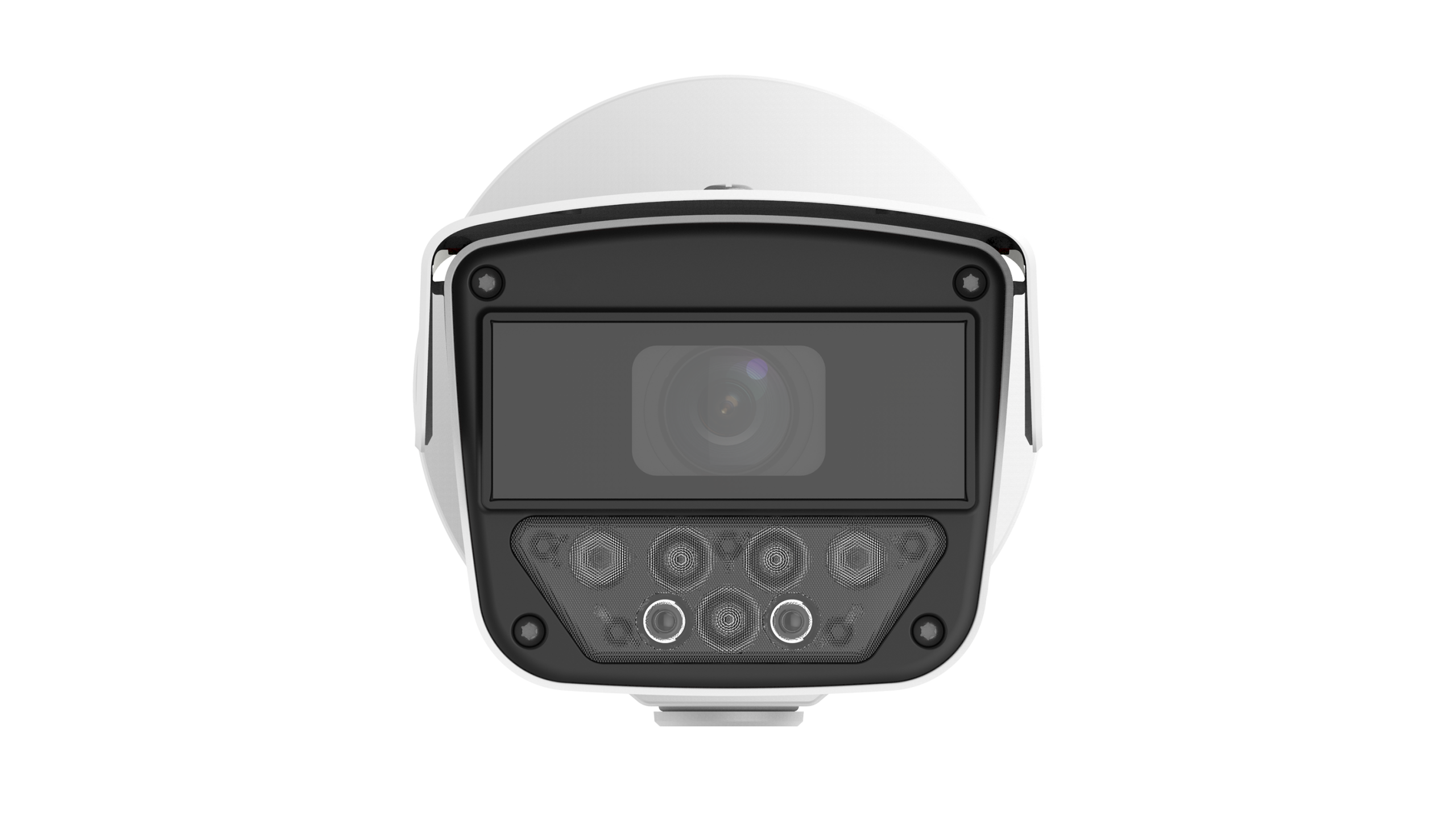

4MP Overseas Recognition Of Vehicle License Plate Bullet IP Camera
4MP Overseas Recognition Of Vehicle License Plate Bullet IP Camera
- 1/1.8″ CMOS, ICR,
- 2688*1520@30, Ultra 265/H.264/MJPEG,
- Triple streams, DC12V, POE, Micro SD card slot,
- -40-60℃, IP67, IK10, 4x optical zoom( 2.8-12mm),
- LED range: up to 50m
| Lens Size |
2.8-12mm |
|---|---|
| Sensor |
1/1.8-inch 4MP CMOS |
| IR Range |
Up to 50 m |
| Protection |
IK10 ,IP67 |
| Camera Resolutions |
4 MP |
| Minimum illumination |
0.001lux (F1.4) |
| Image collection format |
2688*1520@30 (default) ,2688*1520@25 |
| Frame rate |
30 (default) ,25 ,22 ,20 ,18 ,16 ,15 ,12.5 ,10 ,8 ,6 ,5 ,4 ,3 ,2 ,1 |
| Shutter |
Auto/Manual ,range: 1/30 to 1/100000s |
| ROI |
Supports up to 8 regions |
| BNC |
PAL ,NTSC |
| Video OSD |
Supports 8 overlay areas and allows contents including date ,time ,date&time ,zoom ratio ,custom contents |
| Application scenario |
≤ 30km/h for entrances and exits ,≤ 80km/h for regular roads; Supports simultaneous application to road and entry/exit scenes without switching |
| Video Compression |
H.264 (default) ,H.265 |
| Illumination |
Built-in integrated illumination module ,including 4 warm light LEDs ,50m illumination distance ,automatic on/off control |
| Compatible Integration |
ONVIF (Profile S ,Profile G ,Profile T) ,SDK ,API |
| Edge Storage |
Supports ANR with a Micro SD card ,up to 256GB |
| Weight |
2.1kg |
| Power supply |
DC12V + 25% – 10% Max. power consumption: 20W Supports PoE (802.3at ,class 4) |
| Dimensions (L×W×H) |
406mm x 126mm x 130mm |
| Operating environment |
-40℃ to 60℃ ,≤90% RH |
| Heater |
N/A |
| EMC |
CE-EMC (EN 55032:2015+A11:2020+A1:2020 ,EN 61000-3-3:2013+A1:2019+A2:2021 ,EN IEC 61000-3-2:2019+A1:2021 ,EN 50130-4:2011+A1:2014) FCC(FCC CFR 47 part15 B ,ANSI C63.4 2014) |
| Safety |
EN IEC 62368-1:2020+A11:2020 UL (UL 62368-1 ,2nd Ed. ,Issue Date: 2014-12-01) |
| Environment |
CE-RoHS (2011/65/EU;(EU)2015/863);WEEE (2012/19/EU) |
| Camera Style |
Bullet |
