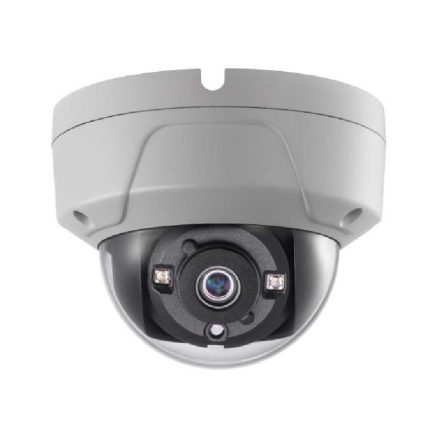

5 MP Audio Camera
5 MP Audio Camera
- 5 MP, 2560 × 1944 resolution
- Digital WDR
- 2.8 mm fixed focal lens
- Smart IR, up to 40 m IR distance
- Audio over coaxial cable, built-in mic
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
| AGC |
Yes |
|---|---|
| Angle Adjustment |
Pan: 0 to 360° ,Tilt: 0 to 75° ,Rotation: 0 to 360° |
| Audio |
Built-in mic |
| Day & Night |
Auto/Color/BW (Black and White) |
| Dimensions |
Φ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6") |
| Exposure Mode |
DWDR/BLC/HLC/Global |
| Frame Rate |
TVI: 5MP@20fps ,4MP@30fps ,4MP@25fps ,1080P@30fps ,1080P@25fps CVI: 4MP@30fps ,4MP@25fps AHD: 5MP@20fps ,4MP@30fps ,4MP@25fps CVBS: PAL/NTSC |
| Functions |
Brightness ,Sharpness ,Mirror ,Smart IR |
| Horizontal Field of View |
2.8 mm ,horizontal FOV: 85.5° ,vertical FOV: 63.7° ,diagonal FOV: 110.7° |
| Horizontal Resolution |
2560 (H) × 1944 (V) |
| Image Sensor |
5 MP CMOS |
| IR Range |
Up to 40 m |
| Lens Size |
2.8mm |
| Lens Mount |
M12 |
| Material |
Enclosure: Plastic Main Body: Metal |
| Min. Illumination |
0.01 Lux@(F1.2 ,AGC ON) ,0 Lux with IR |
| Noise Reduction |
2D DNR |
| Operating Temperature |
-40 °C to 60 °C (-40 °F to 140 °F) ,humidity 90% or less (non-condensing) |
| Power Consumption |
Max. 3.7 W |
| Power Supply |
12 VDC ± 25% *You are recommended to use one power adapter to supply the power for onecamera. |
| Protection |
IP67 |
| Shutter Time |
PAL: 1/25 s to 1/50 ,000 s NTSC: 1/30 s to 1/50 ,000 s |
| Signal System |
PAL/NTSC |
| Video Output |
Switchable TVI/AHD/CVI/CVBS |
| WDR |
Digital WDR |
| Weight |
Approx. 300 g (0.66 lb.) |
| White Balance |
Auto/Manual |
