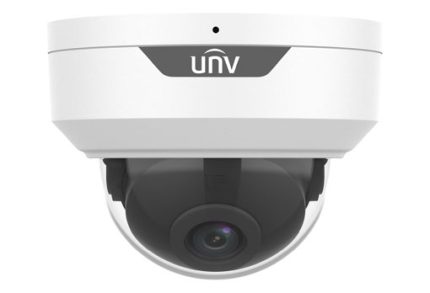

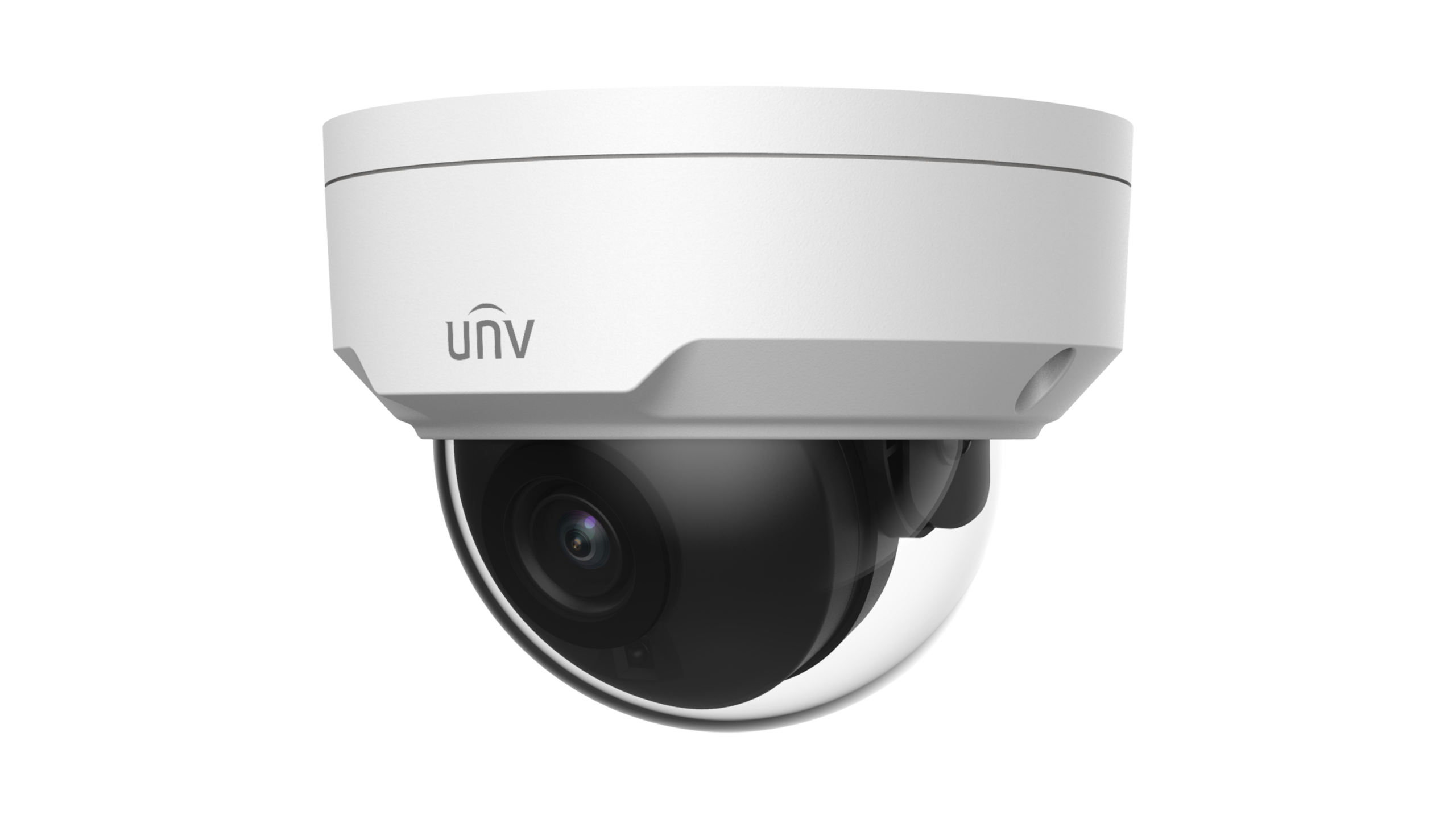

5MP LightHunter Fixed IR Dome Network Camera

5MP LightHunter Fixed IR Dome Network Camera

SKU: IPC325SB-DF40K-I0 Category:

• High quality image with 5 MP, 1/2.7″ CMOS sensor
• 5 MP (2880 × 1620)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
• Intelligent people flow counting and crowd density monitoring
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1
• Smart IR, up to 30 m (98.4 ft) IR distance
• MicroSD, up to 512 GB
• IK10 vandal resistant and IP67 protection

Lens Size

4mm

Lens Type

Fixed Lens

WDR

120 dB

Protection

IK10

,

IP67

Camera Resolutions

5 MP

Sensor

1/2.7" CMOS

Min. Illumination

Color: 0.002 Lux (F1.6

,

AGC ON)

,

0 Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual

,

1 ~ 1/100000s

Adjustment Angle

Pan: 3° to 360°

,

Tilt: 0° to 68°

,

Rotate: 3° to 360°

S/N

>52 dB

Iris

F1.6

Illumination Distance (IR)

30 m (98.5 ft)

Video Compression

Ultra 265

,

H.265

,

H.264

,

MJPEG

Video Bit Rate

128 Kbps to 16 Mbps

Digital Noise Reduction

2D/3D DNR

Edge Storage

MicroSD

,

up to 512 GB

Network Storage

ANR

,

NAS (NFS)

Interface Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

Power

DC 12 V±25%

,

PoE (IEEE 802.3af)

Power Consumption

Max. 4.5 W

Power Interface

Ø5.5 mm coaxial power plug

Dimensions

Ø108.7 mm × 81.1 mm (Ø4.3" × 3.2") (Ø × H)

Weight

0.42 kg (0.93 lb)

Material

Metal

Surge Protection

4 KV
