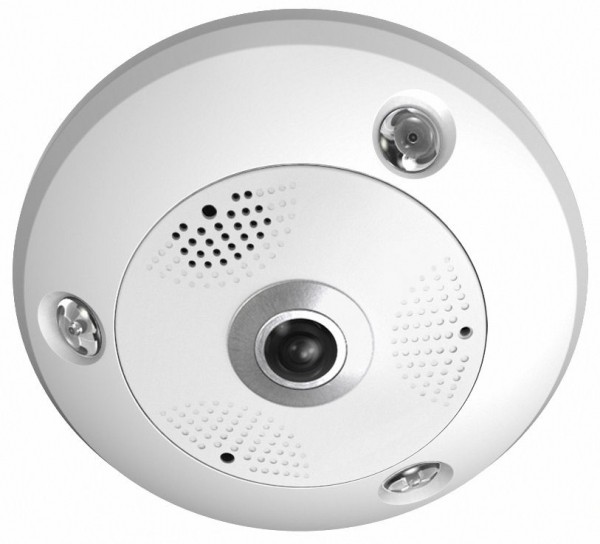

6 MP IR Network Fisheye Camera

SKU: NCA26-FEA Categories: NETWORK CAMERAS, WINIC

1/1.8” Progressive Scan CMOS
Max. 3072 x 2048 @30fps
Up to 18 live view display modes
120 dB WDR
Up to 15m IR range
Built-in microphone and speaker
Smart features
6 behavior analyses, and 3 exception detections
Heat map with deep learning algorithm
Intersection analysis by deep learning

Alarm Trigger	Motion detection , video tampering alarm , network disconnected , IP address conflicted , illegal login , HDD full , HDD error
API	ONVIF (PROFILE S , PROFILE G) , ISAPI
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32‐160Kbps(MP2L2)
Audio Interface	2 built‐in microphones , 1 built‐in speaker , mono sound 1 Audio input (line in , 3.5 mm) , 1 audio output (line out , 3.5 mm)
Audio Sampling Rate	8 kHz/16 kHz
Client	CMS , Guarding Vision
Communication Interface	1 RJ45 10M/100M/1000M self‐adaptive Ethernet port
Audio	Built-in Microphone , Built-in Speaker
Compression (audio)	G.711/G.722.1/G.726/MP2L2/PCM
Day & Night	Day/Night/Auto/Schedule/Triggered by Alarm In
Digital Noise Reduction	3D DNR
Dimensions	167.4 × 152.8 × 55 mm (6. 6" × 6" × 2.2")
Electronic Shutter Speed	1 s to 1/100 , 000 s
Environment Noise Filtering	Yes
Exception Detections	Audio exception detection
Focal Length	1.27 mm
FOV	Horizontal FOV 180° (wall mount) , 360°(ceiling mount) , 360°(table mount)
General Function	One‐key reset , anti‐flicker , heartbeat , mirror , password protection , privacy mask , watermark , IP address filter
Heat Map	A graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available , space heat map and time heat map line chart
Heater	Yes
Image Enhancement	BLC , HLC , defog , 3D DNR
Image Overlay	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Settings	Saturation , brightness , contrast , sharpness , AGC and white balance are adjustable by client software or web browser
Intersection Analysis	Detects and analyze flow in an intersection‐like scene , and generate reports Support one intersection of up to 10 ways
Lens Mount	M12
Material	Metal
Max Aperture	F2.6
Min. Illumination	Color: 0.047 Lux @ (F2.6 , AGC ON) , B/W: 0.0047 Lux @ (F2.6 , AGC ON) , 0 Lux with IR
Mount Type	Support table , wall , and ceiling mounting
Network Storage	Support microSD/SDHC/SDXC card (256 G) , local storage and NAS (NFS , SMB/CIFS) , ANR
On-Board Storage	Built‐in micro SD/SDHC/SDXC slot , up to 256 GB
Operating Conditions	‐40 °C to +60 °C (‐40 °F to +140 °F) , Humidity 95% or less (non‐condensing)
People Counting	Counts people entering , exiting and passing by separately Supports real‐time uploading and uploading by statistic cycle Sends email reports on daily , weekly , monthly or annually basis Supports target filtering by height
Power Consumption	12 VDC , 1 A , max. 12.5 W PoE (802.3at , 42.5 to 57 V) , 0.4 A to 0.3 A , max. 15 W
Power Supply	12 VDC±20% , PoE (802.3at , class 4) , two‐core terminal block
Protection	IK08 , IP67
Protocol	TCP/IP , ICMP , HTTP , HTTPS , FTP , DHCP , DNS , DDNS , RTP , RTSP , RTCP , PPPoE , NTP , UPnP , SMTP , SNMP , IGMP , 802.1X , QoS , IPv6 , UDP , Bonjour
Reset Button	Yes
Resolution	3072 × 2048
Security Measures	Password protection , HTTPS encryption , IEEE 802.1x port‐based network access control , IP address filter , basic and digest authentication for HTTP/HTTPS , WSSE and digest authentication for ONVIF
Simultaneous Live View	Up to 20 channels
Slow Shutter	Yes
SVC	H.265 and H.264 support
User/Host Level	Up to 32 users. 3 user levels , administrator , operator and user
Wavelength	850 nm
Web Browser	IE8+ , Chrome31.0‐44 , Firefox 30.0‐51 , Safari8.0+
Weight	Approx. 1400 g (3.09 lbs)
Wide Dynamic Range	Digital WDR
