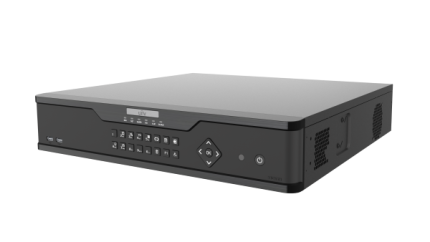

64-ch 8 SATA NVR

SKU: NVR308-64X Category: UNV

Support Ultra H.265/H.265/H.264 video formats
64-channel input
Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840×2160) resolution
HDMI1, HDMI2, VGA independent outputs provided
Up to 12 Megapixels resolution recording
Support RAID 0, 1, 5, 6, 10
8 SATA HDDs, Up to 10TB for each HDD
Various fisheye dewarping modes for live view and playback for both web interface and GUI
Support N+1 Hot spare
Support for 12V Power output
ANR technology to enhance the storage reliability when the network is disconnected

Channel	64 Channel
IP Video Input	64-ch
Two-way Audio Input	1-ch , RCA
Incoming/Outgoing Bandwidth	384Mbps /384Mbps
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback	16-ch
FTP/Schedule/Event Snapshot	64-ch snapshot, up to 4K resolution
Decoding format	Ultra 265, H.265, H.264
Capability	2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
SATA	8 SATA Interfaces
Capacity	up to 10TB for each HDD
eSATA	1 eSATA interface
Interface Network	2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Power	100 to 240 VAC
Dimensions	442mm ×426mm× 89mm (17.4" × 16.8"× 3.5")
Weight (without HDD)	≤ 5.7Kg (12.57lb)
Certification	UL; CE; FCC; RoHS; WEEE
