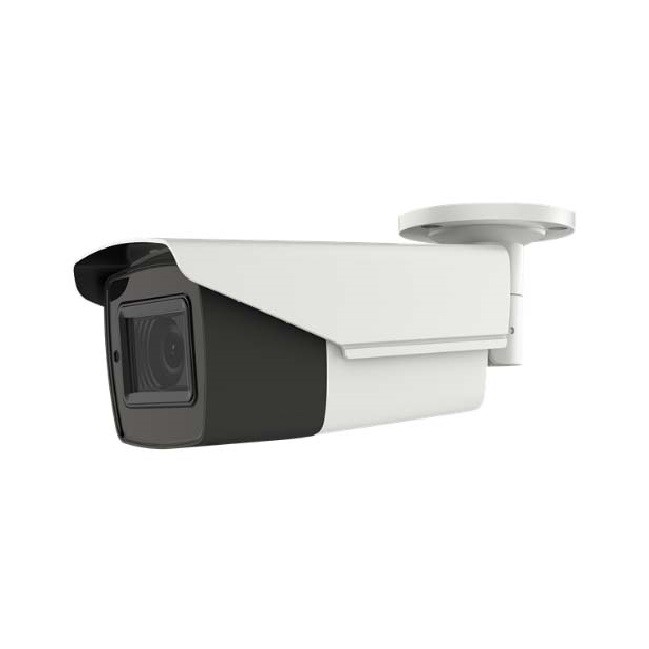

8 MP Bullet Camera

SKU: AC318D-VB4Z Categories: HD-TVI CAMERAS, WINIC

AGC	Yes
Angle Adjustment	Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
BLC	Yes
Communication	Up the coax , Protocol: UTC‐C (TVI output)
D/N Mode	Auto/Color/BW (Black and White)
Day & Night	IR cut filter
Dimensions	84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")
DWDR	105 dB
Frame Rate	TVI: 8MP@12.5fps , 8MP@15fps , 5MP@20fps , 4MP@25fps , 4MP@30fps , 2MP@25fps , 2MP@30fps CVI: 8MP@12.5fps , 8MP@15fps AHD: 5MP@20fps CVBS: 960H P/N
Functions	Yes
Horizontal Field of View	108.1° to 45.6°
Image Sensor	8.29 megapixel progressive scan CMOS
IR Range	Up to 80 m
Lens Size	2.7-13.5mm
Lens Mount	Φ14
Material	Front cover: Metal Main body: Plastic Bracket: Metal
Min. Illumination	Color: 0.01 Lux @ (F1.2 , AGC ON) , 0 Lux with IR
Operating Conditions	‐40 °C to 60 °C (‐40 °F to 140 °F) , humidity: 90% or less (non‐condensation)
Power Consumption	Max. 10.8 W
Power Supply	9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
Protection	IP67
Resolution	3840 (H) × 2160 (V)
Shutter Time	PAL: 1/12.5s to 1/50 , 000 s NTSC: 1/15 s to 1/50 , 000 s
Switch Button	TVI/AHD/CVI/CVBS
Synchronization	Internal synchronization
Video Output	1 HD analog output
Weight	Approx. 695 g (1.53 lb.)
Camera Resolutions	8 MP
Camera Style	Bullet
Lens Type	Motorized Lens
