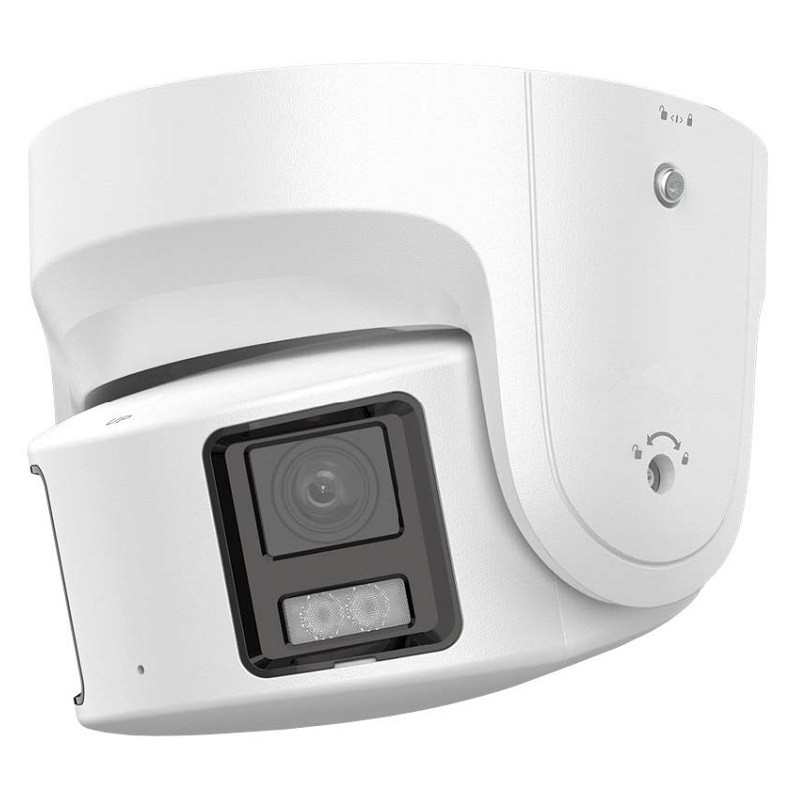

8 MP Panoramic Fixed Turret Network Camera

SKU: NC458G2-PDL/LU Categories: NETWORK CAMERAS, WINIC

High quality imaging with 8 MP resolution
One image that presents all the scenes covered by the camera
24/7 colorful imaging
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Water and dust resistant (IP67)

Angle Adjustment	Pan: -30° to 30° , tilt: -75° to 75°
API	Open Network Video Interface (Profile S , Profile G , Profile T) , ISAPI , SDK , ISUP
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Type	Mono sound
Auto iris	Fixed
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)) , alarm input and output , flashing alarm light output , audible alarm output , exception
Bit Rate Control	CBR , VBR
Built-in Microphone	Yes
Built-in Speaker	Max. power consumption: 1.2 W , max. sound pressure: 10 cm: 95 dB
Compression	Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Compression (audio)	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Day & Night	Day , Night , Auto , Schedule
Dimensions	Ø155 mm × 155.3 mm (Ø6.1" × 6.1")
DORI Distance	4 mm , D: 77 m , O: 30 m , R: 15 m , I: 7 m
EMC	FCC: 47 CFR Part 15 , Subpart B , CE-EMC: EN 55032: 2015 , EN 61000-3-2:2019 , EN 61000-3-3: 2013+A1:2019 , EN 50130-4: 2011 +A1: 2014 , RCM: AS/NZS CISPR 32: 2015 , IC: ICES-003: Issue 7
Environment	CE-RoHS: 2011/65/EU , WEEE: 2012/19/EU , Reach: Regulation (EC) No 1907/2006
Environment Noise Filtering	Yes
Focal Length	Horizontal FOV: 180° ± 10° Vertical FOV: 44°
H.264+	Baseline Profile , Main Profile , High Profile
H.265 Type	Main Profile
Image Enhancement	BLC , HLC , 3D DNR
Image Parameters Switch	Yes
Image Sensor	2 × 1/1.8" Progressive Scan CMOS
Image Settings	saturation , brightness , contrast , sharpness , gain , white balance , adjustable by client software or web browser
Lens Mount	M16
Main Stream	When WDR is On: 50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440) When WDR is Off: 50 Hz: 20 fps (5120 × 1440) 60 Hz: 20 fps (5120 × 1440)
Material	Base: metal , cover: metal
Max Aperture	F1.0
Max. Resolution	5120 × 1440
Min. Illumination	Color: 0.0005 Lux @ (F1.0 , AGC ON) , 0 Lux with light
On-Board Storage	Built-in memory card slot , support microSD/microSDHC/microSDXC/TF card , up to 256 GB
Power	12 VDC ± 25% , 0.79 A , max. 9.5 W , Ø5.5 mm coaxial power plug , PoE: 802.3af , Class 3 , 36 V to 57 V , 0.29 A to 0.18 A , max. 10.5 W
Premier Protection	Line crossing , intrusion , region entrance , region exiting (support alarm triggering by specified target types (human and vehicle))
Protection	IP67: IEC 60529-2013
Protocol	TCP/IP , ICMP , HTTP , HTTPS , FTP , DHCP , DNS , DDNS , RTP , RTSP , NTP , UPnP , SMTP , IGMP , 802.1X , QoS , IPv6 , UDP , Bonjour , SSL/TLS , PPPoE , SNMP
Region of Interest	1 fixed region(s) for main stream
Reset Button	Yes
Safety	UL: UL 62368-1 , CB: IEC 62368-1: 2014+A11 , CE-LVD: EN 62368-1: 2014/A11: 2017
Scalable Video Coding	H.264 and H.265 encoding
Shutter Time	1/3 s to 1/100 , 000 s
Simultaneous Live View	Up to 6 channels
Smart Supplement Light	Yes
Sub‐Stream	When WDR is On: 50 Hz: 12.5 fps (1920 × 536 , 960 × 272) 60 Hz: 15 fps (1920 × 536 , 960 × 272) When WDR is Off: 50 Hz: 20 fps (1920 × 536 , 960 × 272) 60 Hz: 20 fps (1920 × 536 , 960 × 272)
Supplement Light Range	Up to 30 m
Supplement Light Type	White Light
User/Host Level	Up to 32 users 3 user levels: administrator , operator , and user
Video Bit Rate	32 Kbps to 16 Mbps
Visual Alarm	1 input , 1 output (max. 24 VDC , 1 A)
Weight	Approx. 1110 g (2.4 lb.)
Wide Dynamic Range	130 dB
Camera Resolutions	8 MP
