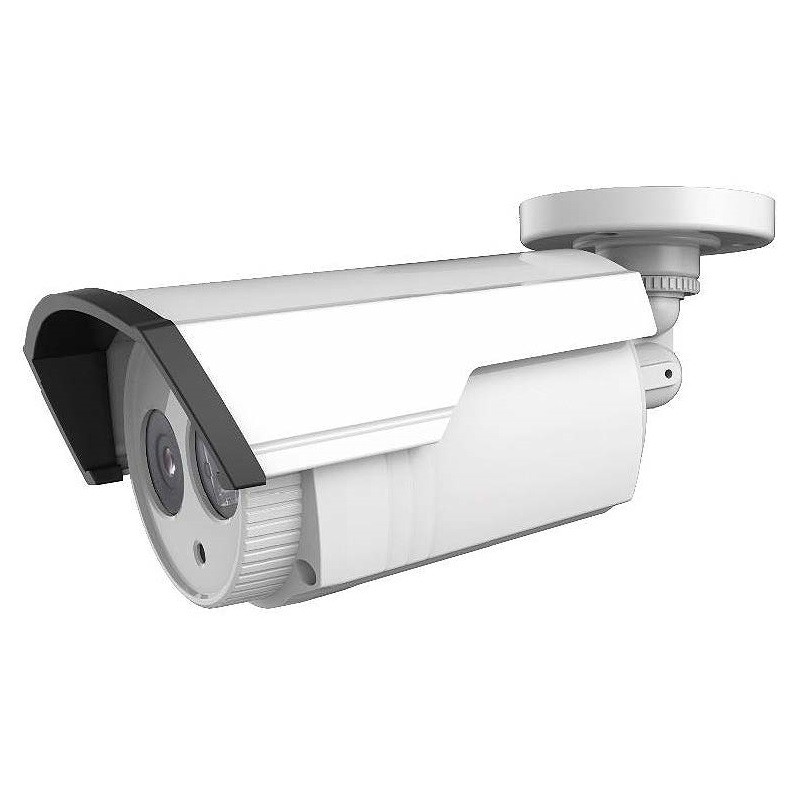

AC324-FB4 2MP 1080p HD EXIR Fixed Bullet Camera
2MP 1080p HD EXIR Fixed Bullet Camera
- Full HD 1080p video capture with 2 MP high-performance CMOS sensor.
- True Day/Night imaging for consistent color and clarity in all lighting conditions.
- Smart EXIR 2.0 night vision up to 40 m with evenly distributed IR illumination.
- Scene-adaptive DWDR ensures balanced exposure in high-contrast environments.
- IP66-rated weatherproof housing for reliable outdoor performance.
- Advanced image adjustments including brightness, sharpness, DNR, and mirror functions.
Description
Product Overview
The AC324-FB4 fixed bullet camera delivers reliable 2 MP full HD surveillance with superior image quality day and night. Equipped with a 2.8 mm or 3.6 mm fixed lens, it provides wide coverage and precise detail for standard security applications. Smart EXIR 2.0 technology ensures uniform IR illumination up to 40 meters, maintaining clarity in low-light environments. True Day/Night operation with IR cut filter allows accurate color reproduction in varied lighting conditions. The camera supports DWDR for optimized exposure in scenes with strong light contrast. Additional image enhancements—brightness, sharpness, DNR, and mirror—improve visual fidelity and detail. Flexible OSD menu controls simplify on-site configuration. Designed with IP66-rated metal housing, this camera ensures protection against dust and rain, making it ideal for outdoor installations. Internal synchronization and HD analog output provide stable, compatible integration with existing CCTV systems.
Key Features
- Full HD 1080p Imaging: Capture clear, detailed video for everyday surveillance needs.
- Smart EXIR Night Vision: Up to 40 m IR range with uniform illumination and minimal glare.
- DWDR Technology: Scene-adaptive wide dynamic range for balanced light and shadow reproduction.
- True Day/Night Operation: IR cut filter switches between color and black & white for accurate imaging.
- Advanced Image Control: Brightness, sharpness, DNR, and mirror adjustments enhance visual quality.
- Weather-Resistant Housing: IP66-rated metal construction withstands harsh outdoor conditions.
- Flexible System Integration: HD analog output compatible with standard CCTV setups.
Key Specifications
- 2 megapixel high-performance CMOS
- Analog HD output, up to 1080p resolution
- True Day/Night
- OSD menu
- EXIR2.0, smart IR, up to 40m IR distance
- IP66 weatherproof
Additional information
| Image Sensor |
2MP CMOS Image Sensor |
|---|---|
| Camera Resolutions | |
| Camera Style | |
| Lens Type | |
| Lens Size | , |
| AGC |
Low/middle/high |
| Angle Adjustment |
Pan: 0 to 360° ,Tilt: 0 to 180° ,Rotation: 0 to 360° |
| Backlight Compensation |
Yes |
| Day & Night |
Smart/color/BW(Black and White) |
| WDR |
DWDR |
| IR Range |
Up to 40 m |
| Lens Mount |
M12 |
| Min. Illumination |
0.01 Lux @(F1.2 ,AGC ON) ,0 Lux with IR |
| Resolution |
1920 (H) × 1080 (V) |
| Shutter Time |
1/25(1/30)s to 1/50 ,000s |
| Video Output |
1 HD analog output |
| Power Supply |
12 VDC ±15% |
| Power Consumption |
Max. 4 W |
| Dimensions |
86.22 mm × 82.05 mm × 220.13 mm(3.39" × 3.23" × 8.67") |
| Weight |
Approx. 430 g (0.95 lb.) |
| Material |
Metal |
| Protection |
IP66 |
