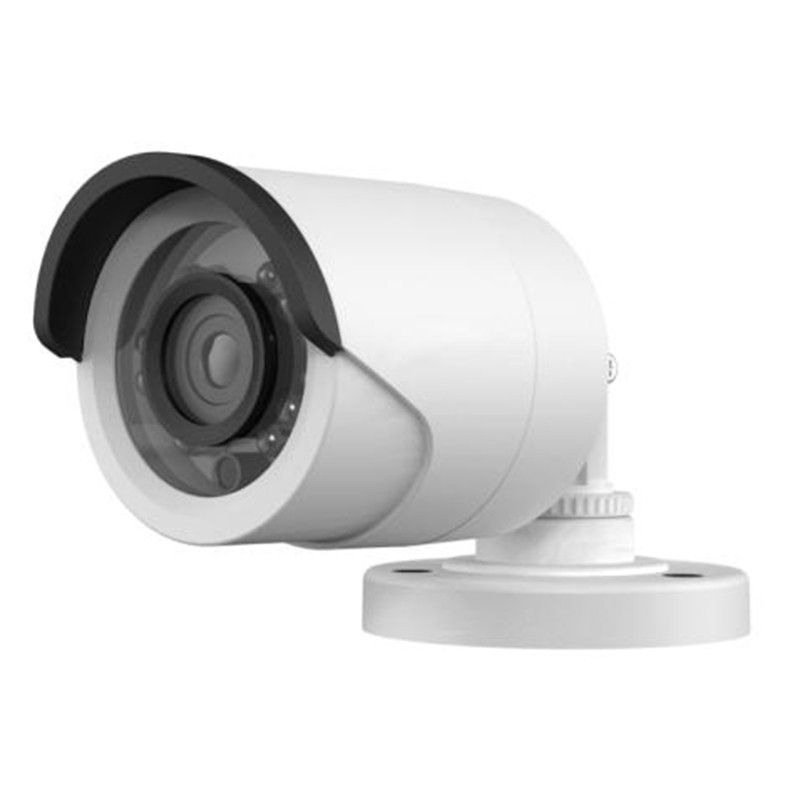

AC324F-MB 2MP 1080P HD IR Fixed Bullet Camera 2.8mm
2MP 1080P HD IR Fixed Bullet Camera
- 2 MP high-definition surveillance with 1080p resolution for clear, reliable video.
- True Day/Night functionality with ICR switch ensures optimal imaging in all lighting conditions.
- Smart IR technology provides night vision up to 20 meters for low-light environments.
- Switchable analog HD output supports TVI, AHD, CVI, and CVBS formats.
- IP66-rated housing offers durable weatherproof protection for outdoor use.
Description
Product Overview
The AC324F-MB fixed bullet camera delivers dependable 2 MP full HD monitoring with sharp, detailed imagery. It features a True Day/Night mode with ICR, allowing seamless transitions between color and black-and-white imaging. Smart IR illuminators extend night vision up to 20 meters, ensuring reliable surveillance in dark environments. Its DWDR and brightness/sharpness adjustment functions help maintain balanced and high-quality images in challenging lighting. The camera supports multiple HD analog formats (TVI, AHD, CVI, CVBS), offering flexible system integration. Internal synchronization provides stable video without flicker, and the robust IP66-rated metal housing guarantees weather resistance for outdoor deployment.
Key Features
- Full HD 1080p Imaging: Delivers detailed, clear 2 MP video for accurate surveillance.
- True Day/Night with ICR: Automatic switching between color and black-and-white for versatile performance.
- Smart IR Night Vision: Up to 20 meters of infrared coverage for low-light conditions.
- DWDR & Image Optimization: Maintains balanced exposure in high-contrast scenes.
- Multi-Format Compatibility: Switchable TVI, AHD, CVI, CVBS output ensures integration with various analog systems.
- Weatherproof Design: IP66-rated housing protects against dust and rain for reliable outdoor use.
Key Specifications
- 2 megapixel high performance CMOS
- Analog HD output, up to 1080p resolution
- Day/Night switch
- Smart IR, up to 20 m IR distance
- Switchable TVI/AHD/CVI/CVBS
- IP66
Additional information
| Image Sensor |
2MP CMOS Image Sensor |
|---|---|
| Camera Resolutions | |
| Camera Style | |
| Lens Type | |
| Lens Mount |
M12 |
| IR Range |
Up to 20 m |
| Angle Adjustment |
Pan: 0 – 360° ,Tilt: 0 – 180° ,Rotation: 0 – 360° |
| Day & Night |
ICR |
| Effective Pixels |
1920(H)*1080(V) |
| Frame Rate |
1080p@25fps/1080p@30fps |
| Min. Illumination |
0.01 Lux @ (F1.2 ,AGC ON) ,0 Lux with IR |
| Operating Conditions |
-40 °C – 60 °C (-40 °F – 140 °F) ,Humidity 90% or less (non-condensing) |
| S/N Ratio |
＞62dB |
| Shutter Time |
1/25(1/30)s to 1/50 ,000s |
| Signal System |
PAL/NTSC |
| Synchronization |
Internal synchronization |
| Video Output |
1 Analog HD output |
| Power Supply |
12 VDC±15% |
| Power Consumption |
Max. 4W |
| Weight |
400g |
| Dimensions |
Φ70×149.5mm (Φ2.76"×5.89") |
| Protection |
IP66 |
| Color |
White |
