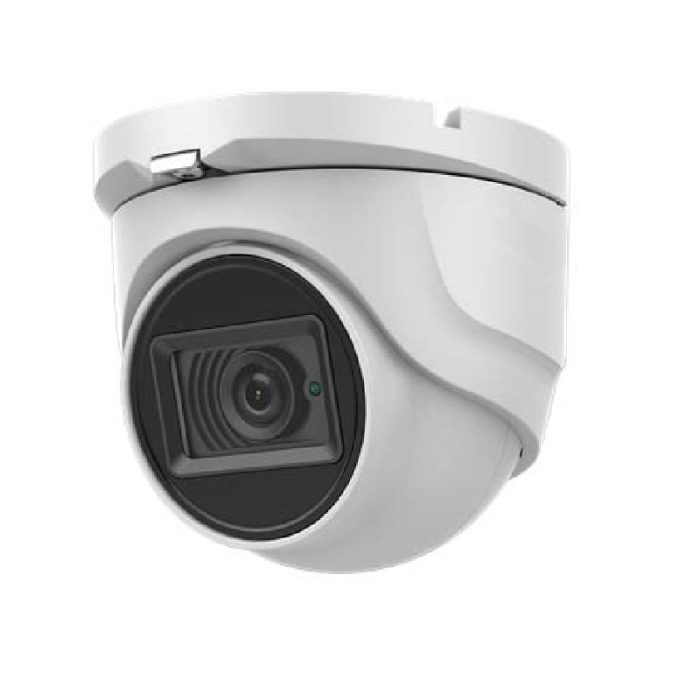

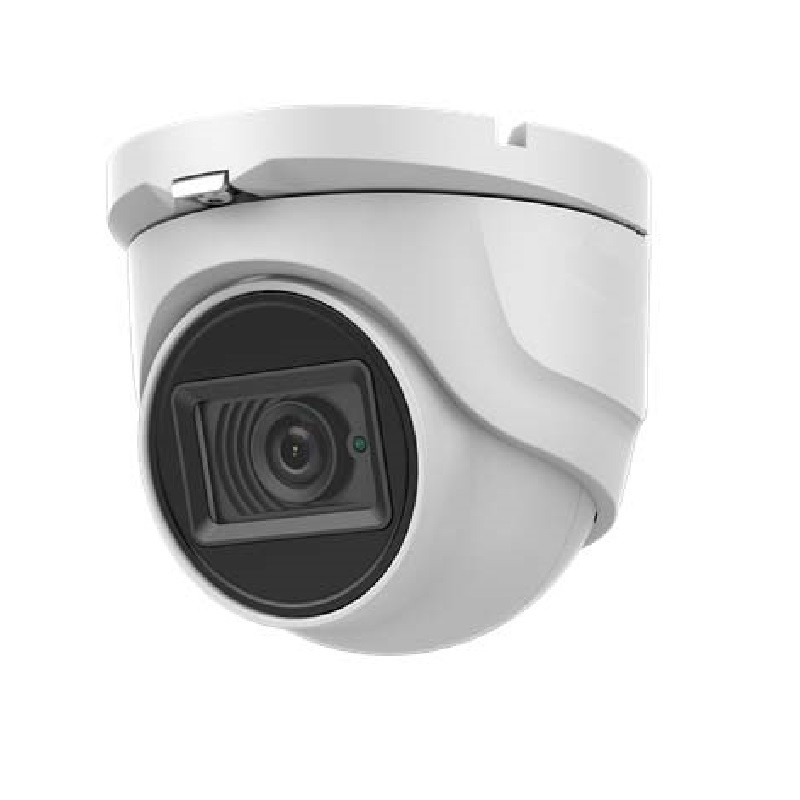

AC324F-MD 2MP 1080P HD IR Fixed Eyeball Camera

Product Overview

The AC324F-MD fixed eyeball camera provides reliable 2 MP Full HD surveillance with exceptional image quality. Its ICR-enabled Day/Night mode ensures optimal performance in varying light conditions, while Smart IR technology illuminates dark areas up to 20 meters. The camera supports adjustable angles (pan: 0–360°, tilt: 0–75°, rotation: 0–360°), allowing precise coverage of any monitoring area. Equipped with multiple lens options (2.8 mm and 3.6 mm), it provides adaptable horizontal fields of view for diverse installation scenarios. With analog HD output over TVI, the camera integrates easily into existing surveillance systems. The unit operates across a wide temperature range and maintains reliable imaging with low-light performance down to 0.01 Lux. Its IP66-rated housing protects against dust and water, making it suitable for both indoor and outdoor deployments.

Key Features

• Full HD 1080p Imaging: Captures detailed, high-quality 2 MP video for clear monitoring.
• Day/Night with ICR: Automatically switches between color and black-and-white imaging.
• Smart IR Illumination: Up to 20 meters of infrared coverage for low-light environments.
• Adjustable Viewing Angles: Pan, tilt, and rotation provide flexible positioning for comprehensive coverage.
• Lens Options: 2.8 mm or 3.6 mm fixed lenses to fit various surveillance needs.
• TVI Compatibility: Analog HD output ensures seamless integration with existing TVI systems.
• Weather-Resistant Housing: IP66-rated construction protects against dust and water ingress.

Key Specifications

• 2-megapixel high performance CMOS
• Analog HD output, up to 1080p resolution
• Day/Night switch
• Smart IR
• Up to 20 m IR distance
• TVI
• IP66
