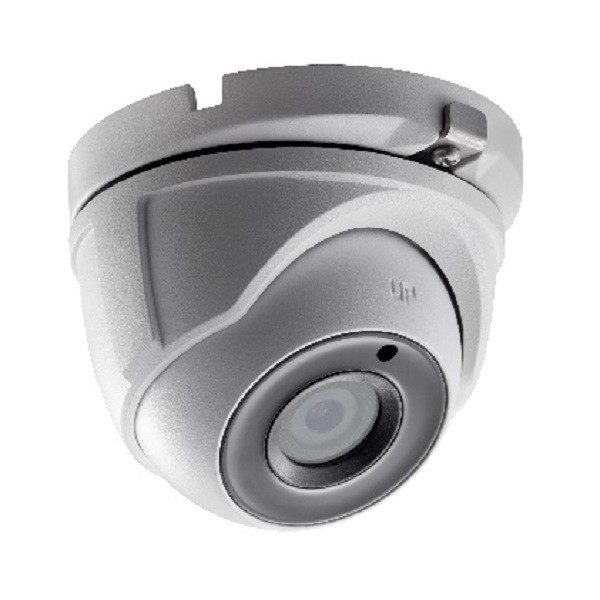

AC346-MD 5 MP Ultra-Low Light Fixed Camera
5 MP Ultra-Low Light Fixed Camera
- 5 MP surveillance camera delivering clear 2560 × 1944 high-definition video.
- Designed for ultra-low light environments with excellent sensitivity down to 0.003 Lux.
- EXIR 2.0 smart infrared technology provides stable night monitoring up to 30 meters.
- True Day/Night imaging with IR cut filter for reliable 24-hour security coverage.
- Advanced 3D DNR and 130 dB true WDR enhance clarity in challenging lighting scenes.
- Switchable 4-in-1 HD output ensures compatibility with multiple analog systems.
Description
Product Overview
The AC346-MD is a 5 MP ultra-low light surveillance camera built to deliver reliable imaging performance in both daytime and nighttime conditions. Featuring a high-performance progressive scan CMOS sensor, it produces detailed 2560 × 1944 resolution video for accurate monitoring. The camera integrates EXIR 2.0 infrared technology, providing consistent illumination and improved night imaging up to 30 meters. Its true Day/Night capability with an IR cut filter allows automatic adaptation to changing lighting environments. Advanced image processing technologies such as 3D digital noise reduction and 130 dB true WDR help maintain image clarity when strong backlighting or noise is present. Multiple fixed lens options allow the camera to adapt to different monitoring scenarios. With support for four switchable HD analog output formats, it integrates smoothly with various surveillance systems. The IP67-rated design ensures dependable operation in demanding outdoor environments.
Key Features
- High-Resolution 5 MP Imaging: Captures detailed 2560 × 1944 video for enhanced surveillance accuracy.
- Ultra-Low Light Sensitivity: Maintains image visibility in environments with extremely limited lighting.
- EXIR 2.0 Night Illumination: Provides balanced infrared lighting for clear monitoring up to 30 meters.
- True Day/Night Technology: IR cut filter enables automatic transition between color and night modes.
- Advanced Image Processing: 3D DNR and 130 dB WDR help maintain clear images in complex lighting conditions.
- Flexible System Integration: 4-in-1 switchable output supports TVI, AHD, CVI, and CVBS formats.
- Up-the-Coax Control: UTC-C communication enables remote configuration via coaxial cable.
Key Specifications
- 5 MP high performance CMOS
- 2560 × 1944 resolution
- 2.8 mm, 3.6 mm, 6 mm fixed lens
- EXIR 2.0, smart IR, up to 30 m IR distance
- OSD menu, 3D DNR, 130 dB true WDR
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP67
- Up the coax (UTC‐C)
Additional information
| Camera Resolutions | |
|---|---|
| Image Sensor |
5 megapixel progressive scan CMOS |
| Resolution |
2560(H)×1944(V) |
| Min.Illumination |
Color:0.003 Lux@ (F1.2 ,AGC ON) ,0 Lux with IR |
| Shutter Time |
PAL:1/25 s to 1/50 ,000 s NTSC:1/30 s to 1/50 ,000 s |
| Lens Size | , , |
| Lens Type | |
| Lens Mount |
M12 |
| Day & Night |
IR Cut Filter |
| Angle Adjustment |
Pan: 0°to 360° ,Tilt: 0°to 75° ,Rotate:0°to 360° |
| WDR |
≥130dB |
| Video Output |
1 HD analog output |
| Power Supply |
12V DC±25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption |
Max.5.8W |
| Protection |
IP67 |
| IR Range |
Up to 30 m |
| Communication |
Up the coax ,Protocol: UTC‐C(TVI output) |
| Dimensions |
90mm×79.37mm(3.54"×3.12") |
| Weight |
Approx.300g(0.66lb.) |
