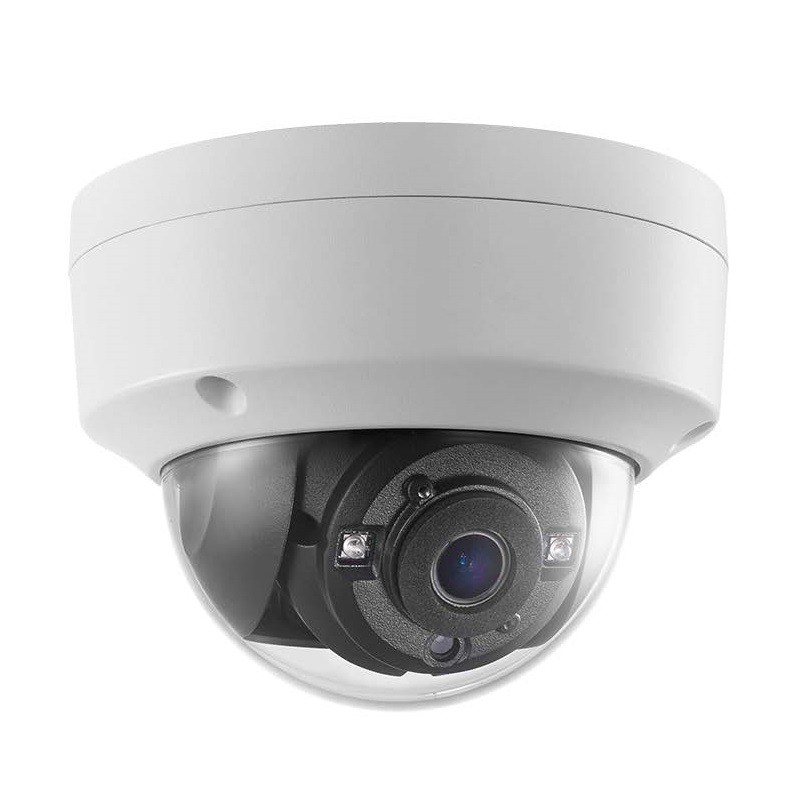

AC346-OD 5 MP Ultra-Low Light Fixed Camera

Product Overview

The AC346-OD is a professional 5 MP ultra-low light surveillance camera designed for stable performance in demanding security environments. Equipped with a high-performance progressive scan CMOS sensor, it delivers crisp 2560 × 1944 resolution video for accurate monitoring and evidence recording. EXIR 2.0 infrared technology provides consistent and efficient illumination up to 30 meters, allowing clear observation even in complete darkness. The camera integrates advanced imaging technologies such as 3D digital noise reduction and 130 dB true WDR, ensuring balanced images in scenes with strong backlighting or uneven illumination. With a fixed 2.8 mm lens, it offers wide-area coverage for common surveillance scenarios. Its switchable 4-in-1 HD analog output allows flexible integration with multiple video systems. Up-the-coax control using the UTC-C protocol simplifies configuration and installation. Built as part of the Pro Series, the camera features a rugged IP67 and IK10-rated housing designed for long-term outdoor security applications.

Key Features

• 5 MP High-Definition Imaging: Captures detailed 2560 × 1944 video for precise monitoring.
• Enhanced Low-Light Performance: Maintains image clarity in extremely dim environments down to 0.003 Lux.
• EXIR 2.0 Night Vision: Provides efficient and evenly distributed infrared lighting up to 30 meters.
• Wide Dynamic Range Processing: 130 dB WDR helps preserve image detail in high-contrast scenes.
• Advanced Noise Suppression: 3D DNR reduces visual noise and improves image stability in low light.
• Flexible Analog Compatibility: 4-signal switchable output supports TVI, AHD, CVI, and CVBS formats.
• Reinforced Outdoor Protection: IP67 weather resistance with IK10 vandal-resistant construction.

Key Specifications

• 5 MP high performance CMOS
• 2560 × 1944 resolution
• 2.8 mm fixed lens
• EXIR 2.0, smart IR, up to 30 m IR distance
• OSD menu, 3D DNR, 130 dB true WDR
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67, IK10
• Up the coax (UTC‐C)
