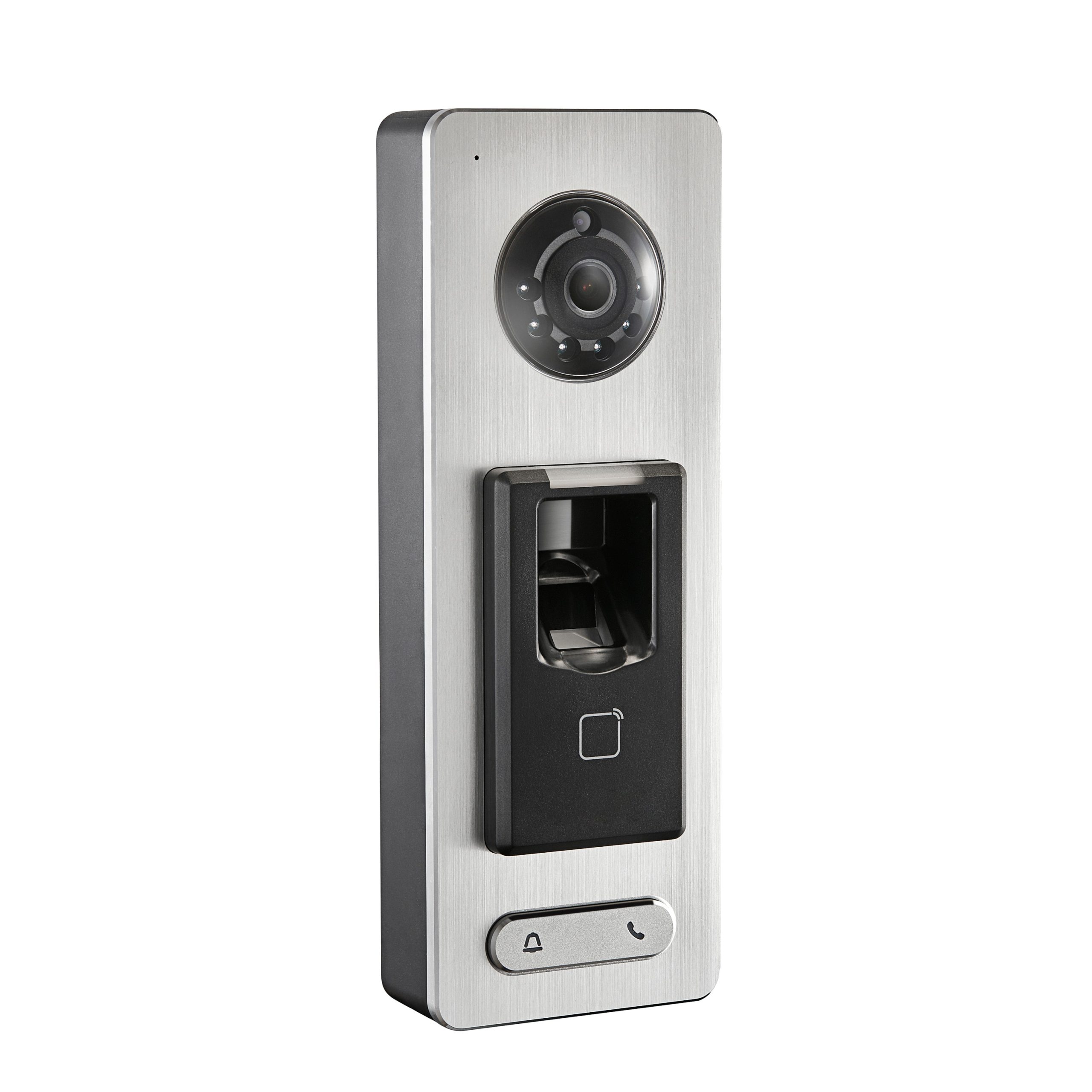

AC602-FDS Video Access Control Terminal

Product Overview

The AC602-FDS is a high-performance video access control terminal designed for advanced security environments. Equipped with a built-in 1080P/2MP camera and IR illumination, it supports real-time face detection and picture capture. The terminal features multi-modal authentication options, including QR code, Mifare card, fingerprint, and combinations with passwords, allowing flexible access management. It provides local storage via Micro SD card (up to 128 GB) and can interface with external controllers using RS-485 or Wiegand protocols. With the capacity to manage up to 50,000 cardholders and 5,000 fingerprints, it delivers reliable access control and event recording for medium to large-scale deployments. Its IP65-rated brushed metal design ensures durability in challenging environments, while two-way audio enhances user interaction and remote access management.

Key Features

• Brushed metal surface
• Communication via TCP/IP and Wi-Fi
• Supports EHome protocol for public network communication
• Face detection and picture capturing function implemented by built-in camera (1080P/2MP and IR light, optional)
• Built-in Micro SD card slot; Supports inserting Micro SD card (Max. 128G) and saving captured pictures and recorded videos to the memory card
• QR code authentication; Generates QR code via iVMS-4200 client software or other systems
• Two way-audio
• Opens door remotely via iVMS-4200 client software or other systems
• Max. 50,000 cards No., Max. 200,000 access control event records and Max. 5000 fingerprints storage
• Supports Mifare card reading
• Multiple authentication modes: QR code, card, fingerprint, card + fingerprint, card + password, fingerprint + password, card + fingerprint + password, and so on
• Working as a card reader, and supports Wiegand interface and RS-485 interface for accessing the controller
• RS-485 communication for connecting external card reader
• Connects the external secure door control unit via RS-485 to avoid the door opening when the terminal is destroyed
• Protection level: IP65
