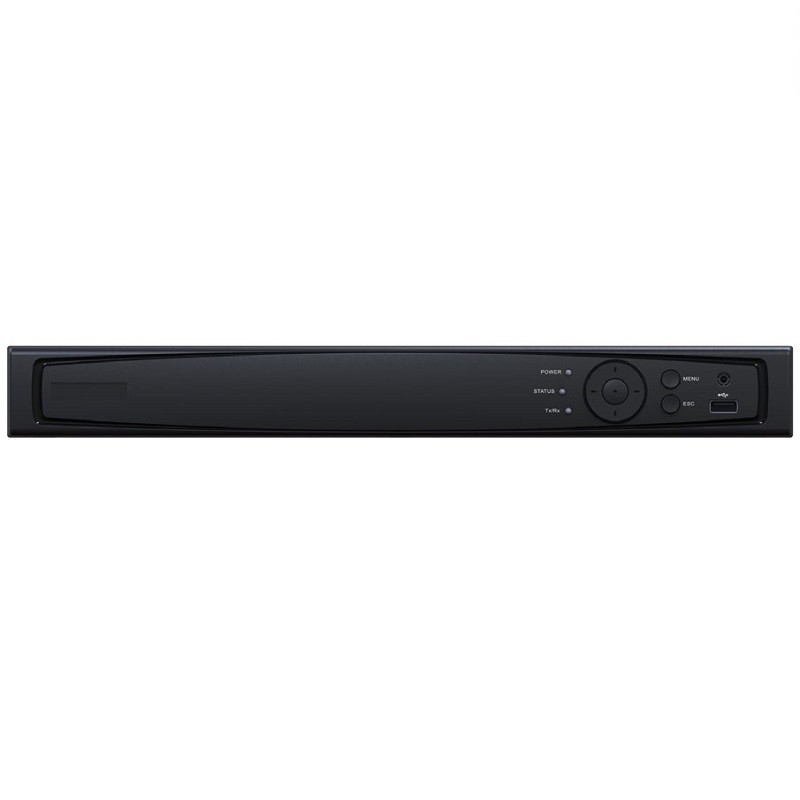

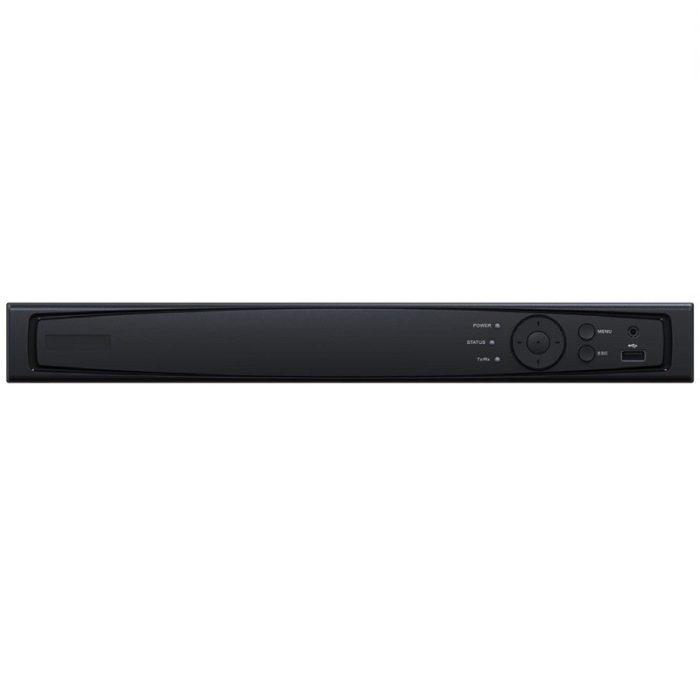

AR334-16/A 16 Channel 1080P H.265 2HDD Bay TURBO ACUSENSE DVR

16 Channel 1080P H.265 2HDD Bay TURBO ACUSENSE DVR

  • Deep learning-based motion detection 2.0 for all analog channels
  • Deep learning-based perimeter protection
  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Audio via coaxial cable
  • Up to 24-ch IP camera inputs (up to 6 MP)
  • Up to 10 TB capacity per HDD
Add to wishlist
SKU: AR334-16/A Categories: ,
Description

Product Overview

The AR334-16/A DVR is a professional 16-channel hybrid surveillance recorder supporting HDTVI, HDCVI, AHD, CVBS, and IP cameras, with enhanced IP mode enabling up to 24 IP channels. It features deep learning-based motion detection 2.0 and perimeter protection for accurate human and vehicle identification, reducing false alarms. Equipped with H.265 Pro+/H.265 Pro/H.265/H.264+ compression, it optimizes storage use and supports simultaneous HDMI and VGA outputs. The system allows 16-channel synchronous playback, audio via coaxial cable, and flexible storage with two hot-swappable HDD bays up to 10 TB each.

Key Features

  • Deep Learning Motion Detection: Advanced algorithms detect humans and vehicles for accurate event alerts.
  • Hybrid Camera Support: Works with analog HDTVI/AHD/CVI/CVBS and IP cameras, up to 24 IP channels.
  • H.265 Pro+ Compression: Reduces storage requirements while maintaining high-quality video.
  • 1080P HDMI/VGA Output: Simultaneous output for live monitoring and playback at full HD resolution.
  • Two-Way Audio Support: Audio via coaxial cable with input and output for communication and evidence capture.
  • Hot-Swappable HDD: Easy installation and maintenance with support for two HDDs up to 10 TB each.



Key Specifications

  • Analog Channels: 16 BNC inputs
  • IP Channels: Up to 24 (enhanced IP mode)
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+
  • Max Resolution: 1080P for analog, up to 6 MP for IP
  • Storage: 2 × SATA HDD, 10 TB per disk
  • Playback: 16-channel synchronous
Additional information
Channel

Human/Vehicle Analysis

Up to 4-ch
Video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Video bitrate

32 Kbps to 6 Mbps
Stream type

Video

,

Video & Audio
IP video input

2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch)

,

each up to 4 Mbps
Analog video input

16-ch BNC interface (1.0 Vp-p

,

75 Ω)

,

supporting coaxitron connection
AHD input

5 MP@20 fps

,

4 MP

,

1080p@30 fps

,

1080p@30 fps

,

720p@25 fps

,

720p@30 fps
HDCVI input

5 MP@20 fps

,

4 MP

,

1080p@30 fps

,

1080p@30 fps

,

720p@25 fps

,

720p@30 fps
CVBS input

PAL/NTSC
CVBS output

1-ch

,

BNC (1.0 Vp-p

,

75 Ω)

,

resolution: PAL: 704 × 576

,

NTSC: 704 × 480
HDMI/VGA output

1-ch

,

1920 × 1080/60Hz

,

1280 × 1024/60Hz

,

1280 × 720/60Hz

,

1024 × 768/60Hz

,

HDMI/VGA simultaneous output
Audio input

1-ch

,

RCA (2.0 Vp-p

,

1 KΩ) 16-ch via coaxial cable
Audio output

1-ch

,

RCA (Linear

,

1 KΩ)
Two-way audio

1-ch

,

RCA (2.0 Vp-p

,

1 KΩ) (using the first audio input)
Synchronous playback

16-ch
Remote connection

128
Network interface

1

,

RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
HDD Support

SATA

2 SATA interfaces

,

up to 10 TB capacity for each disk
Serial interface

RS-485 (half-duplex)
USB interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Power supply

12 VDC

,

3.3 A
Consumption (without HDD)

≤ 40 W
Dimension (W × D × H)

380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight (without HDD)

≤ 2 kg (4.4 lb)
