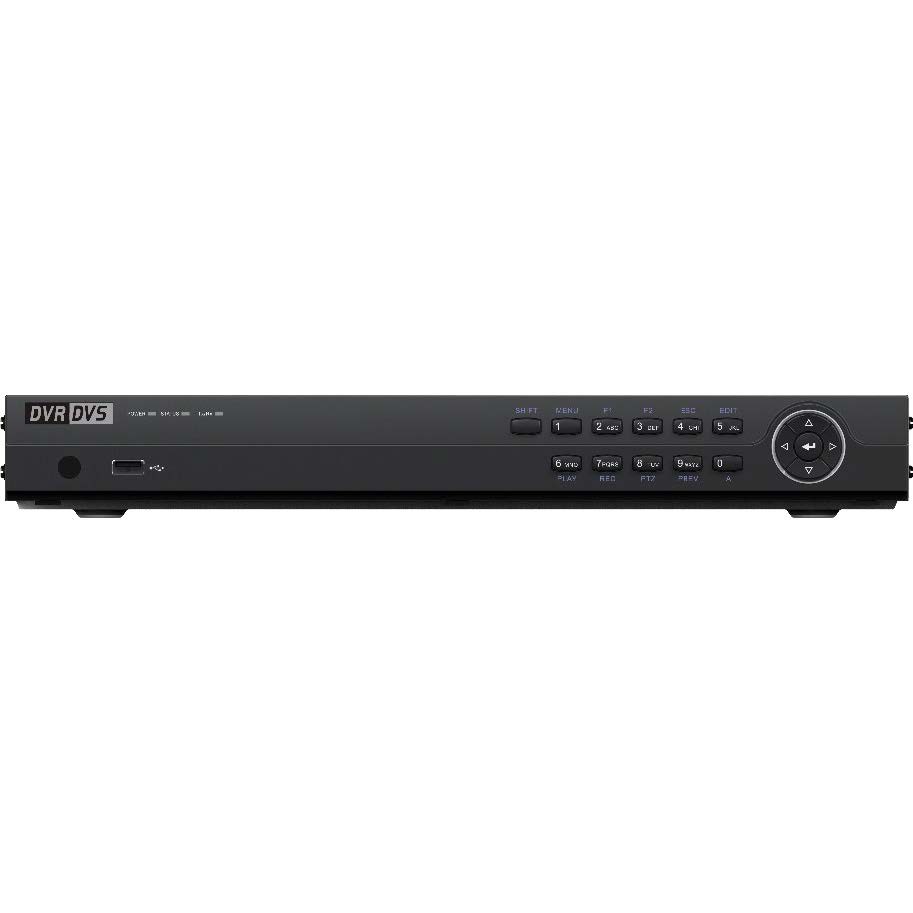

AR336-4/A 4CH 1 HDD TURBO ACUSENSE DVR
4CH 1 HDD TURBO ACUSENSE DVR
- Deep learning-based motion detection 2.0 for all analog channels
- Deep learning-based perimeter protection
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 8-ch IP camera inputs (up to 8 MP)
- Up to 10 TB capacity per HDD
Description
Product Overview
The AR336-4/A DVR is a compact hybrid recorder supporting HDTVI, HDCVI, AHD, CVBS, and IP cameras, with enhanced IP mode enabling up to 8 IP channels. It features deep learning-based motion detection 2.0 and perimeter protection for accurate human and vehicle recognition, reducing false alarms. H.265 Pro+/H.265 Pro/H.265/H.264+ compression optimizes storage while maintaining high-quality video. The system supports simultaneous HDMI/VGA output, audio via coaxial cable, and hot-swappable HDD storage of up to 10 TB.
Key Features
Compression and Recording
- H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
- Recording at up to 8 MP resolution
Storage and Playback
- 2 SATA interfaces
- Smart search for efficient playback
- Support the third party cloud storage
Smart Function
- Deep learning-based motion detection, and perimeter protection (line crossing and intrusion detection)
- Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
Network & Ethernet Access
- Compatible with major Wi-Fi dongle products in the market
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Output bandwidth limit configurable
Additional information
| Human/Vehicle Analysis |
Up to 4-ch |
|---|---|
| Video compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video bit rate |
32 Kbps to 10 Mbps |
| Dual stream |
Support |
| Stream type |
Video ,Video & Audio |
| HDCVI input |
5 MP@20 fps ,4 MP@25 fps ,4 MP@30 fps ,1080p@25 fps ,1080p@30 fps ,720p@25 fps ,720p@30 fps |
| CVBS input |
PAL/NTSC |
| VGA output |
1-ch ,1920 × 1080/60Hz ,1280 × 1024/60Hz ,1280 × 720/60Hz ,1024 × 768/60Hz |
| HDD Support | |
| Capacity |
Up to 10 TB capacity for each disk |
| USB interface |
Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
| Power supply |
12 VDC ,1.5A |
| Consumption (without HDD) |
≤ 10W |
| Dimension (W × D × H) |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight (without HDD) |
≤ 1.16 kg (2.6 lb) |
