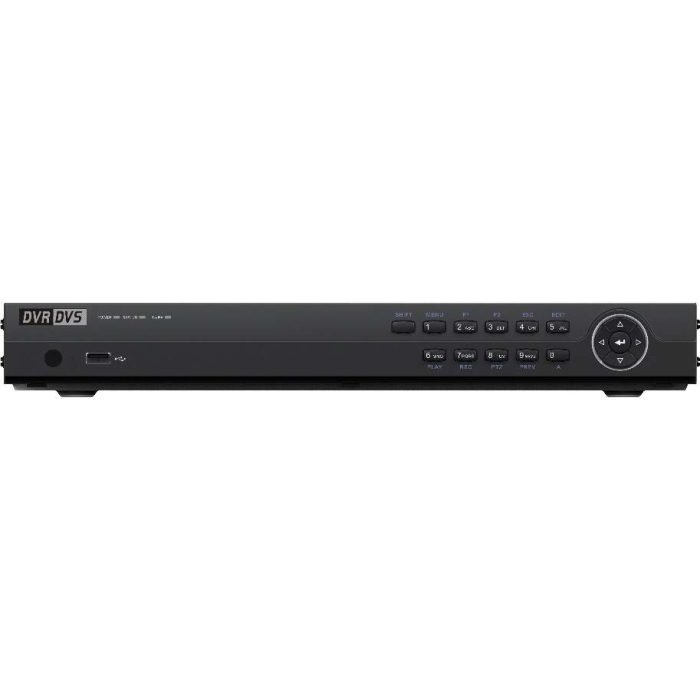

AR336-4/A 4CH 1 HDD TURBO ACUSENSE DVR
Click to enlarge
WINIC

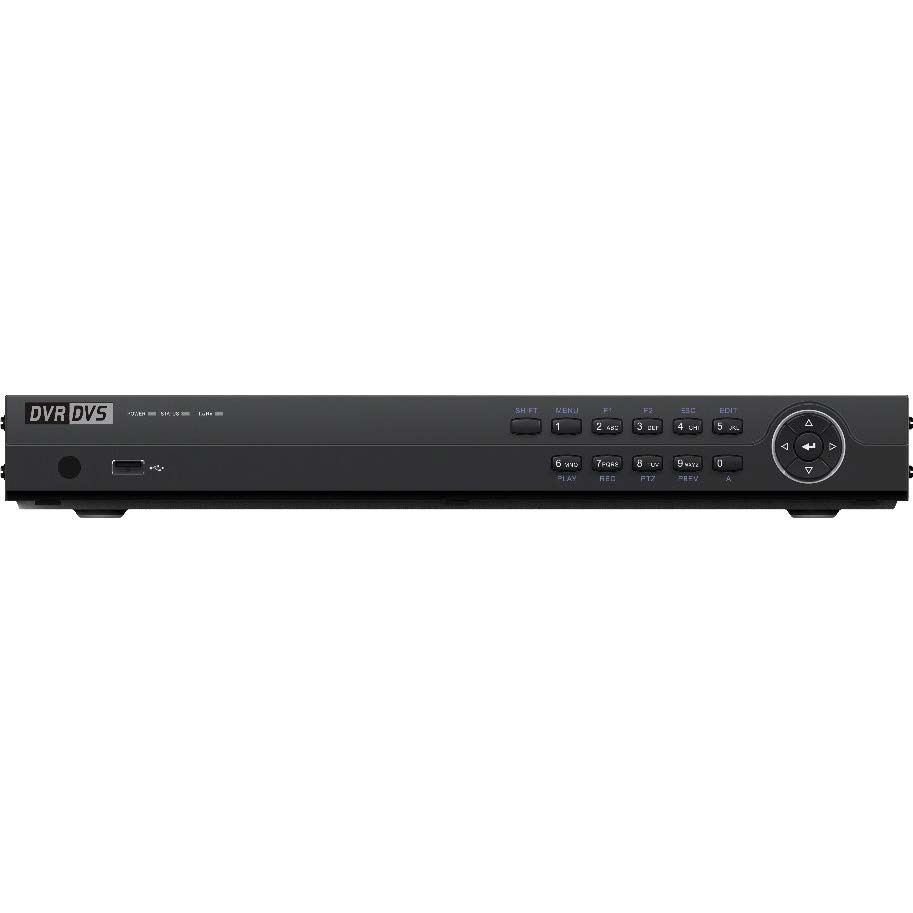

AR346-16/A 16 Channel H.265 8 MP 1U 2HDD BAY TVI xDVR

AR346-16/A 16 Channel H.265 8 MP 1U 2HDD BAY TVI xDVR

  • 16 channels and 2 HDD 1U AcuSense DVR
  • Support 4-ch Facial Recognition or 16-ch advanced model Perimeter Protection based on Deep Learning algorithm
  • Support 16-ch AcuSearch Technology
  • Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
  • Up to 32 channels IP camera inputs, each channel up to 8MP
  • Up to 24*1080P@30fps decoding ability
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Support All channels Motion Detection Technology
  • Support All channels HDTVI Two-Way Audio Technology
Add to wishlist
SKU: AR346-16/A Categories: ,
Description

Product Overview

The AR346-16/A is a professional-grade hybrid DVR supporting HDTVI, AHD, CVI, CVBS, and IP cameras. It features deep learning-based motion detection and perimeter protection across all channels, with up to 4-ch facial recognition for video streams. The system supports AcuSearch technology for rapid event retrieval and intelligent video analysis. With H.265 compression and high-resolution recording up to 8 MP, the DVR maximizes storage efficiency while delivering detailed video. Dual hot-swappable HDD bays allow secure and scalable storage, while HDMI/VGA outputs and two-way audio provide comprehensive monitoring and communication capabilities.

Key Features

Compression and Recording

  • H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
  • Recording at up to 8 MP resolution



Smart Function

  • Up to 16 channels (analog channel) Motion Detection 2.0
  • Up to 8 channels (advanced model, analog channel) Perimeter Protection
  • Up to 4 channels (advanced model, analog channel) human face recognition
  • Support smart playback to enhance playback efficiency



Network & Ethernet Access

  • Support Guarding Vision & DDNS (Dynamic Domain Name System)
  • Output bandwidth limit configurable
Additional information
IP Video Input

16-ch (up to 32-ch), each up to 8MP
Analog Video Input

16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
CVBS Input

PAL/NTSC
CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback

16-ch
HDTVI Input

8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328×1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
AHD Input

5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30fps
HDCVI Input

8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
Audio Output

1-ch, RCA (Linear, 1 KΩ)
Audio Input

1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ) 16-ch via coaxial cable
Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Recording Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution

8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate

Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate

32 Kbps to 10 Mbps
Dual-stream

Support main stream or sub stream
Audio Compression

G.711u Audio Bitrate 64 Kbps
Decoding Capability

up to 24-ch 1080P@30fps
Network Total Bandwidth

256 Mbps
Network Protocol

TCP/IP, PPPoE, DHCP, Guarding Vision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
Remote Connection

128
Network Interface

1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
SATA / Capacity

2 SATA interfaces Up to 12 TB capacity for each disk Serial Interface RS-485 (half-duplex)
USB Interface

Front panel: 1 × USB 2.0 Rear panel: 2 × USB 3.0
Power Supply

12 VDC, 5 A Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
Dimension (W × D × H)

385 × 315 × 52 mm (15.2 × 12.4 × 2.0 inch)
Weight

≤ 2.1 kg (4.6 lb)
