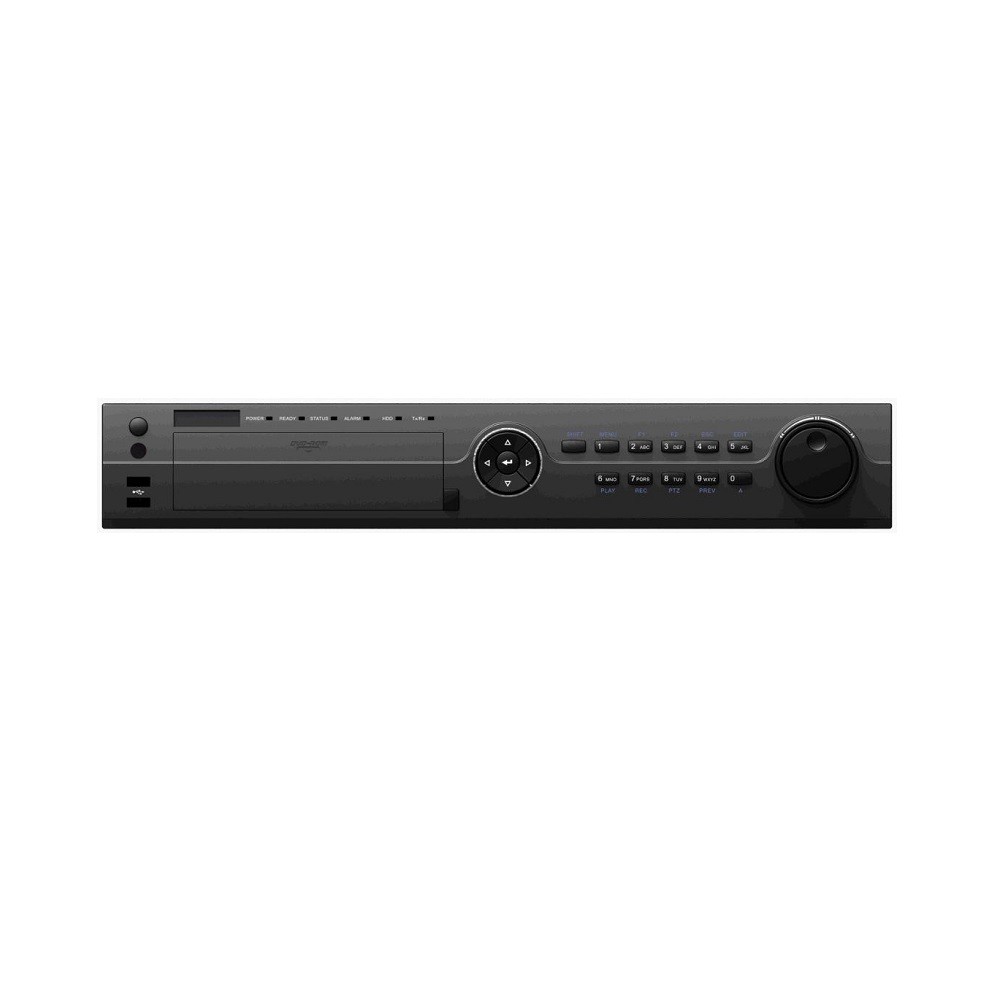

AR536-32 32CH 8 MP 4 SATA TURBO HD DVR
32CH 8 MP 4 SATA TURBO HD DVR
- Up to 32-ch analog camera inputs and 4 SATA interfaces
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 8 MP@8 fps/5 MP@12 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 64-ch network camera inputs
- POS triggered recording and POS information overlay
- RAID 0, 1, 5, 6, 10 for even more reliable data storage, effectively avoids data loss risks
Description
Product Overview
The AR536-32 is a high-performance 32-channel TURBO HD DVR designed for professional hybrid surveillance. It supports multiple analog formats (HDTVI/AHD/HDCVI/CVBS) and up to 64 IP cameras, providing flexible deployment for large-scale monitoring. H.265 Pro+/H.265/H.264+ compression ensures efficient storage without compromising video quality, supporting up to 8 MP resolution at 8 fps or 5 MP at 12 fps. Four hot-swappable SATA HDDs plus one eSATA interface and configurable RAID 0/1/5/6/10 provide secure, reliable storage. POS-triggered recording and overlay enhance retail applications, while dual 1 Gbps Ethernet interfaces with GuardingVision & DDNS simplify network management. With 32-channel 1080p@30 fps decoding, smart playback, and advanced VCA compatibility, this DVR delivers robust, reliable surveillance performance.
Key Features
Compression and Recording
- H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
- Full channel recording at up to 8 MP resolution
Storage and Playback
- 4SATAinterfaces and 1 eSATA interface
- 32-ch 1080p@30 fps decoding capability
- RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
Network & Ethernet Access
- 2self-adaptive 10/100/1000 Mbps Ethernet interfaces
- Guarding vision & DDNS (Dynamic Domain Name System) for easy network management
- Output bandwidth limit configurable
Additional information
| Video Compression |
H.265Pro+/H.265Pro/H.265/H.264+/H.264 |
|---|---|
| Encoding Resolution |
8MP/3K/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Video Bitrate |
32 Kbps to 10 Mbps |
| IP Video Input |
32-ch(up to 64-ch); Up to 12MP resolution; SupportH.265+/H.265/H.264+/H.264IP cameras |
| Analog Video Input |
32-ch; BNC interface(1.0Vp-p ,75Ω) ,supporting coaxitron connection |
| Incoming Bandwidth |
320 Mbps |
| Outgoing Bandwidth |
256 Mbps |
| HDTVI Input |
8MP ,3K ,5MP ,4MP ,3MP ,1080p25 ,1080p30 ,720p25 ,720p30 ,720p50 ,720p60 |
| CVBS Output |
1-ch ,BNC(1.0Vp-p ,75Ω) ,resolution:PAL:704×576 ,NTSC:704×480 |
| VGA Output |
1-ch ,1920×1080/60Hz ,1280×1024/60Hz ,1280×720/60Hz ,1024×768/60Hz |
| Video Output Mode |
HDMI1/VGA simultaneous output ,HDMI2/VGA independent output |
| Audio Input |
4-ch ,RCA(2.0Vp-p ,1KΩ) |
| Synchronous Playback |
16-ch |
| HDD Support | |
| Capacity |
Up to 12TB capacity for each disk |
| Serial Interface |
RS-232 ,RS-485(full-duplex) ,Keyboard |
| USB Interface |
Front panel:2×USB2.0 ,Rearpanel:1×USB3.0 |
| Power Supply |
100 to 240VAC ,50 to 60Hz |
| Consumption |
≤55W(without HDD) |
| Dimension(W×D×H) |
445×400×71mm(17.5×15.7×2.8inch) |
| Weight |
≤7kg(without HDD ,15.4lb.) |
