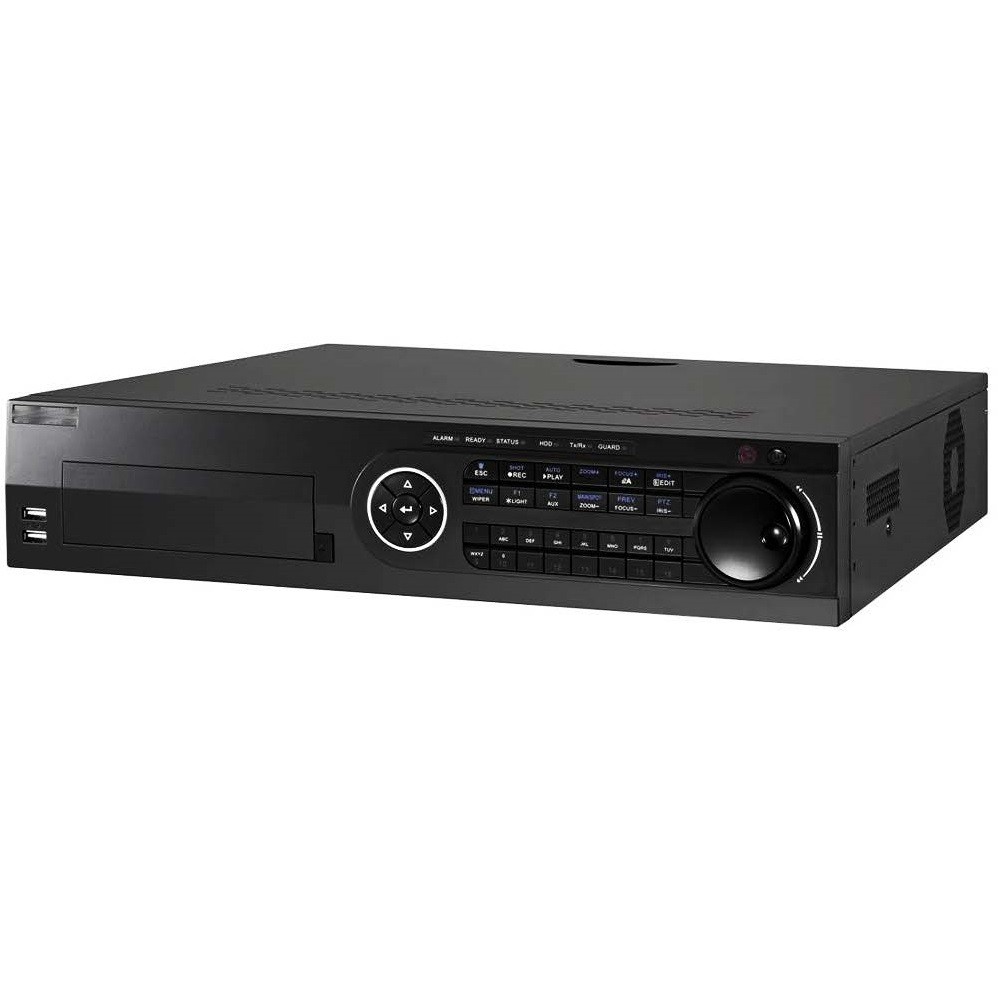

AR715-16 16 Channel Full 3MP 2U 8HDD TVI Tribrid DVR

Product Overview

The AR715-16 is a professional 2U TVI Tribrid DVR designed for mid-to-large surveillance systems. It supports HD-TVI, AHD, analog, and IP cameras with adaptive integration. Full-channel 3MP recording ensures high-quality video capture, and H.264+ compression reduces storage requirements. The device features simultaneous HDMI1 and VGA output at 1080P, with HDMI2 supporting 4K resolution. Eight hot-swappable SATA HDD bays with RAID support secure your data, while smart VCA, POS integration, people counting, and heat map analytics provide advanced monitoring. Two gigabit Ethernet interfaces and cloud access ensure easy network management.

Key Features

Appearance Design

• Typical chassis design to guarantee the low noise and environmental protection of the device
• Front slot of DVD-R/W for more convenient installation and maintenance

Video Input and Transmission

• Connectable to HDTVI, AHD and analog cameras
• Up to 18-ch 8 MP IP cameras input for AR-715-16
• Long distance transmission over UTP and coaxial cable

Compression and Recording

• One-key enable H.264+ compression improves encoding efficiency by up to 50% and reduces data storage costs
• Full channel recording at up to 3 MP resolution
• Supports POS triggered recording and POS information overlay

Video Output

• Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 × 2160) resolution
• Independent CVBS output improves compatibility at the most possibility and serves as the aux output or live view output only

Storage and Playback

• Eight SATA interfaces (up to 6 TB capacity per HDD)
• Hot-swappable HDD supporting RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
• 16-ch synchronous playback
• Smart search for efficient playback
• Supports playback by mainstream, or sub-stream for IP cameras
• Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Supports line crossing detection and intrusion detection of all channels
• Supports people counting and heat map functions for 1-ch analog camera
• VQD (Video Quality Diagnostics)
• Unlock pattern for device login for the admin and clear-text password available
• GUID file can be exported for password resetting and imported for finding the forgotten password
• Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

• Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
• 2 gigabit Ethernet network interfaces
• Output bandwidth limit configurable
