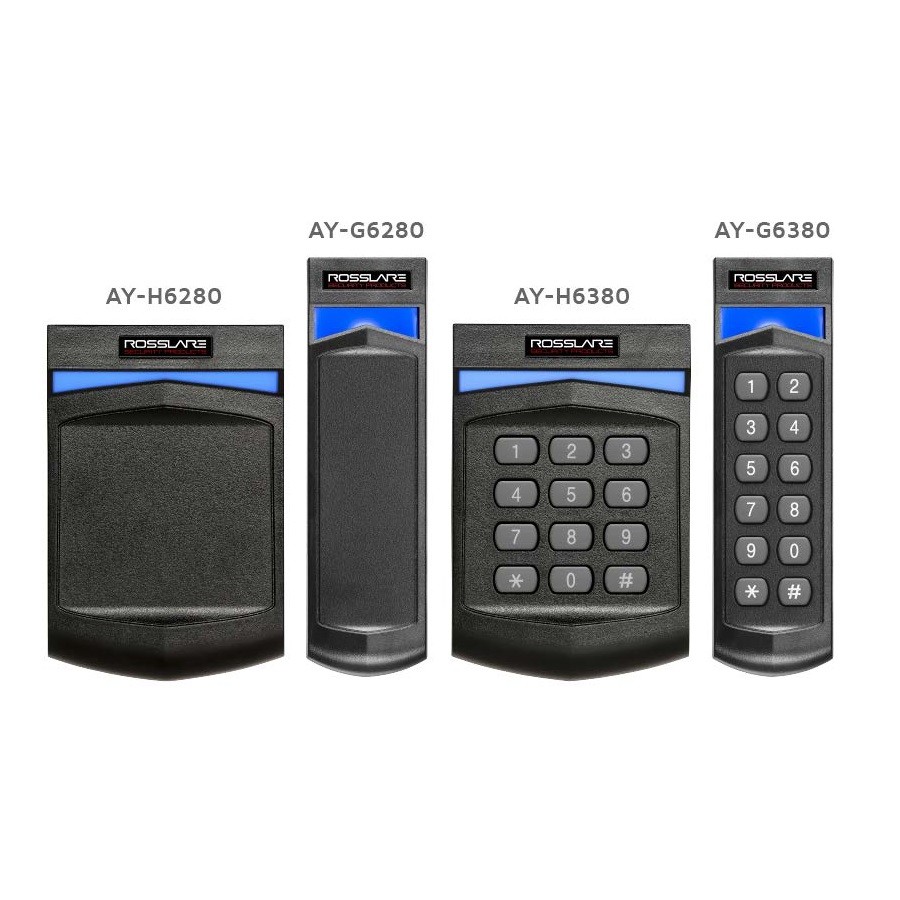

AY-H6380B+P00 O2S-MIFARE DESFire EV1 Smart Card Reader

O2S – MIFARE DESFire EV1 Smart Card Reader & 3×4 Matrix Keypad with 18″ (46-cm) Pigtail

SKU: AY-H6380B+P00 Category: Open to Secure® (O2S®)

Description

Contactless smart card reader (13.56 MHz)
Meets ISO14443 Type A Standard
AES 128-bit encryption during transmission
Uses NXP SAM AV2 for identity and communication cryptography
Supports OSDP V2 including secure channel using AES 128 bit encryption for improved security
Reads O2S ID data from O2S credentials
Reads CSN of non-O2S credentials
Output formats:
Wiegand (per format on O2S credential)
OSDP via RS-485 (selected models)
RGB multicolor light indicator
Blue backlit tact switch keypad
IP68 water and dust resistant for AY-x6280 pigtail models
IP65 water and dust resistant for AY-x6280 terminal block models and AY-x6380 models
IK08 vandal resistant for all AY-x6x80 models
Optical back tamper sensor
Two LED control and buzzer control inputs
Pigtail or terminal block connectivity
Antimicrobial technology reduces level of microbes on reader by up to 99.99%.
