CPE3-P 5 GHz CPE with 13 dBi Built-in Antenna

5 GHz wireless bridge CPE with maximum wireless rate of 867 Mbps
Equipped with a 13 dBi high-gain directional antenna for stable long-distance transmission
Supports point-to-multipoint deployment with TDMA and up to 5 CPE clients
Up to 3 km (1.86 miles) wireless transmission distance
Three 10/100 Mbps Ethernet ports for flexible connectivity
IP55 weatherproof enclosure designed for outdoor deployment
Managed through eWeb and Lysora Cloud for remote monitoring and configuration
Includes 24 V DC power adapter and PoE injector for easy installation

Description

Product Overview

The CPE3-P is a high-performance 5 GHz Wireless Bridge CPE engineered for stable, long-distance data transmission in outdoor environments. Featuring a built-in 13 dBi high-gain directional antenna, it supports point-to-point and point-to-multipoint deployments at distances of up to 3 km (1.86 miles). The device is designed for flexibility, offering three Ethernet ports and a unique PoE pass-through capability that allows it to power downstream devices. With an IP55 weatherproof rating and advanced TDMA support to prevent channel contention, the CPE3-P is a robust solution for extending network coverage, wireless video surveillance backhaul, and building-to-building connectivity.

Key Features

High-Gain Directional Transmission: Integrated 13 dBi antenna with a 30° beamwidth ensures focused signal strength for stable links up to 3 km.
High-Speed Wi-Fi 5 AC867: Delivers a maximum wireless data rate of 867 Mbps on the 5 GHz band, providing ample bandwidth for high-definition video and data-heavy applications.
Intelligent TDMA Support: Utilizes Time Division Multiple Access (TDMA) to optimize point-to-multipoint communication, reducing latency and preventing “hidden node” collisions for up to 5 CPE clients.
Flexible PoE Pass-Through: When powered via 24V Passive PoE or 802.3at, the device provides a 15.4W PoE budget to power external hardware like IP cameras directly from its LAN ports.

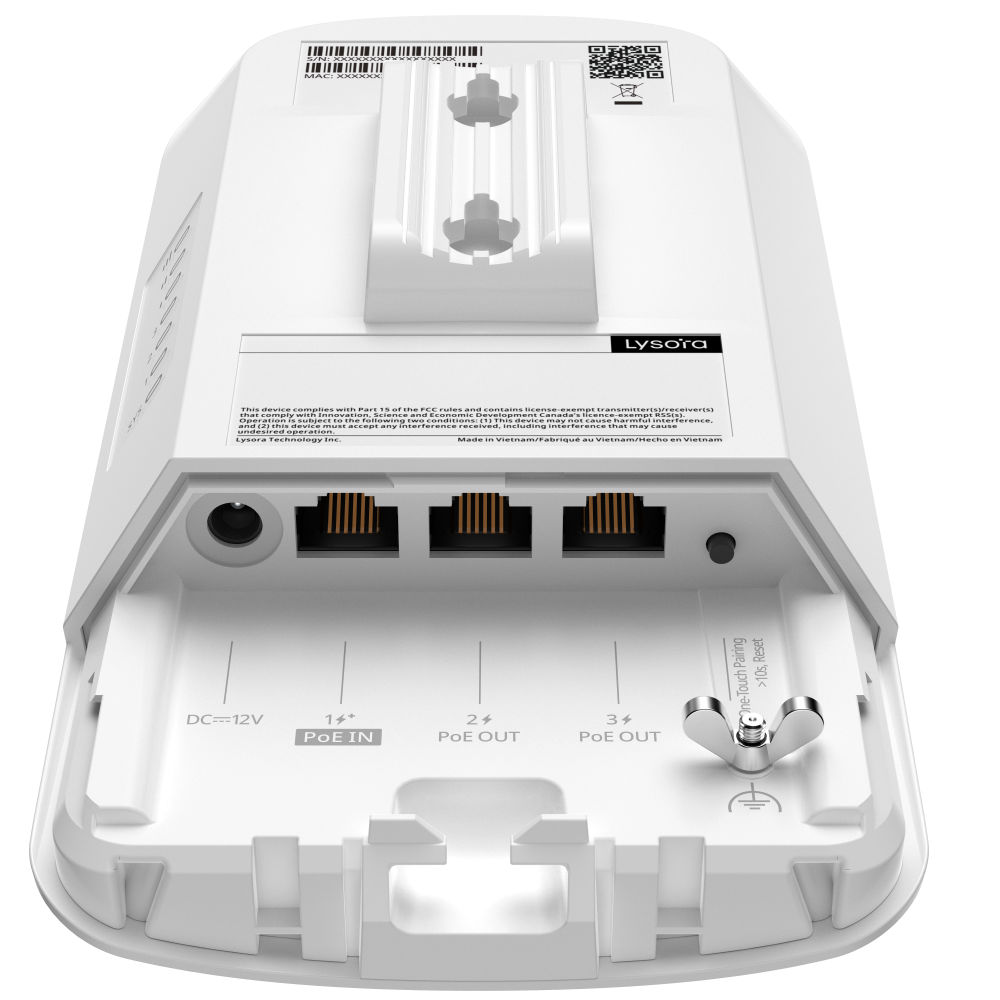

Triple Ethernet Connectivity: Equipped with three 10/100 Mbps ports, allowing for multiple local wired connections at the installation site.
Outdoor Industrial Design: IP55-rated weatherproof enclosure and ±4 kV surge protection ensure reliable operation in temperatures ranging from –30°C to +55°C.

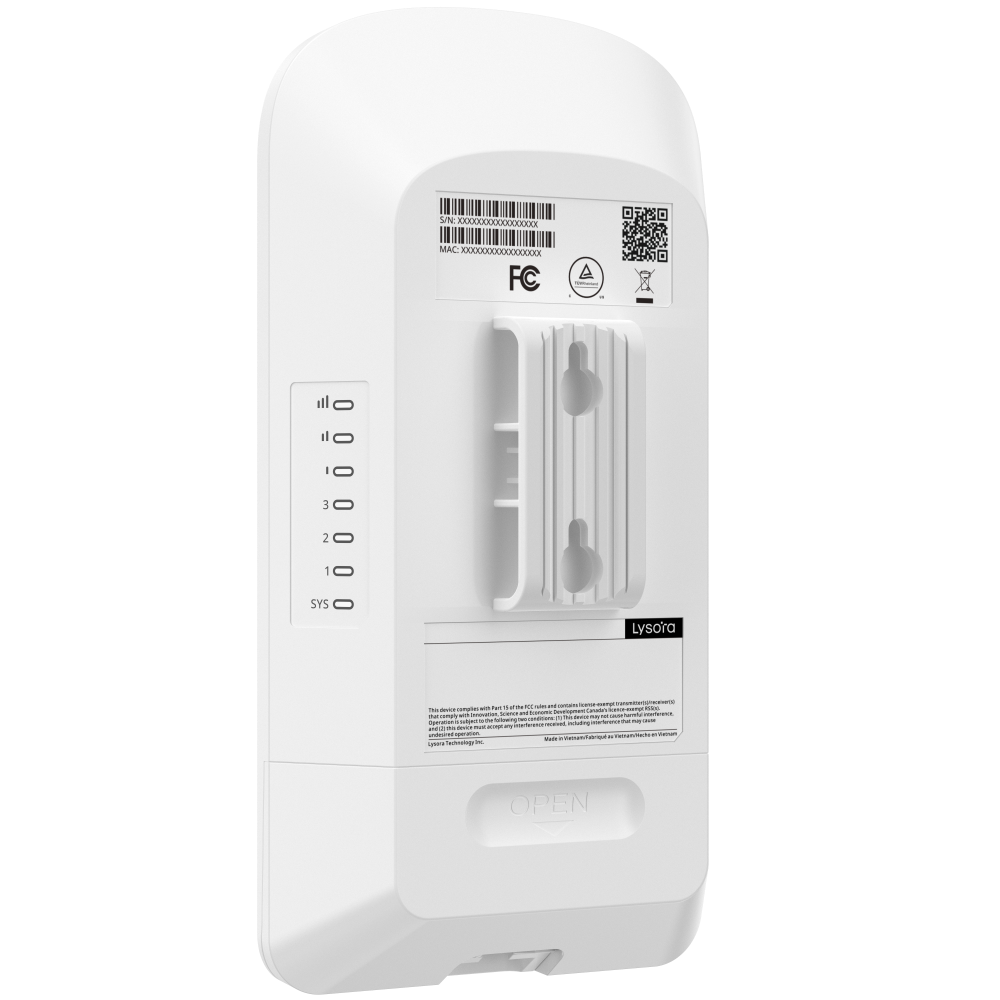

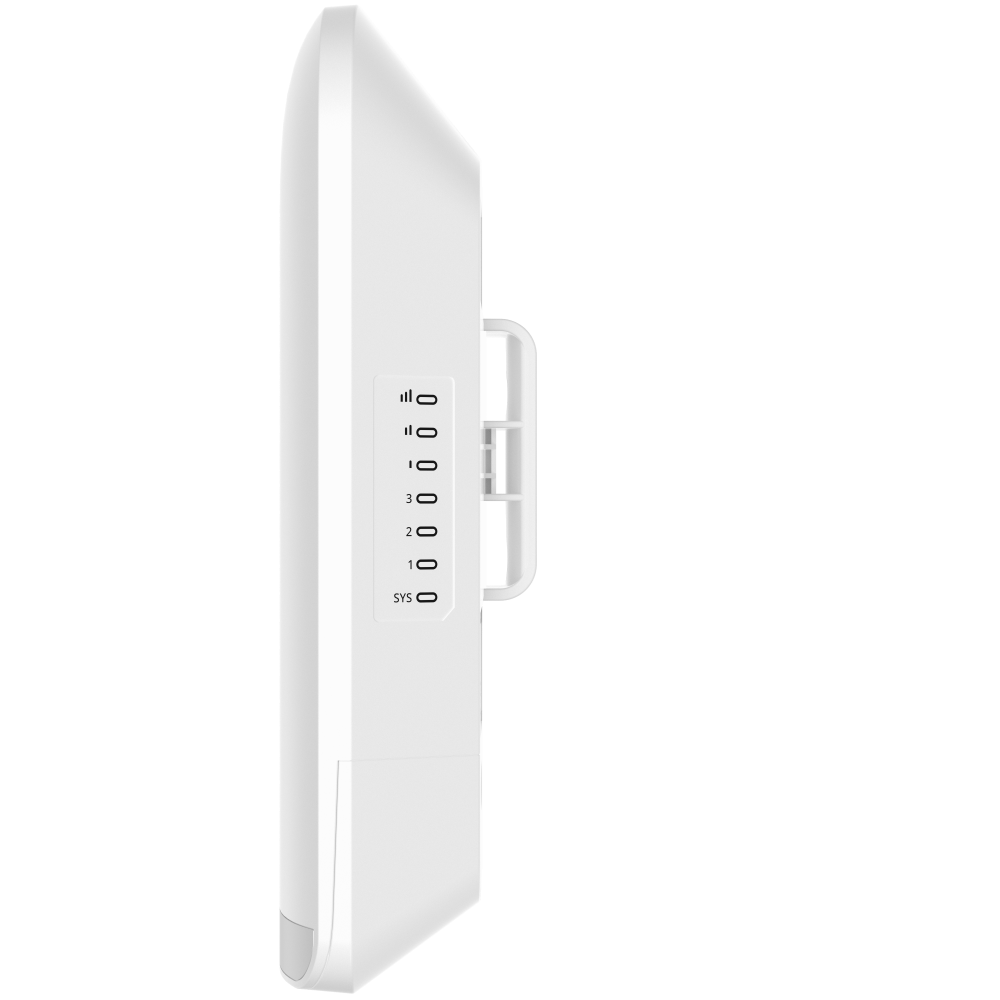

Simplified Deployment: Features dedicated signal status LEDs for easy antenna alignment and supports remote management via Lysora Cloud or eWeb.

Additional information

Wi-Fi Standards	IEEE 802.11 a/b/g/n/ac
Spatial Streams	3
CPU	Single-core processor , 575/580 MHz clock frequency
Flash Memory	16 MB
RAM	64 MB
Networking Interface	3 x 10/100BASE-T ports
Wi-Fi Protocols	2.4 GHz: IEEE 802.11 b/g/n 5 GHz: IEEE 802.11 a/n/ac
Channel bandwidth	2.4 GHz: 20/40 MHz 5 GHz: 20/40/80 MHz
Max. Transmit Power	2.4 GHz: 20 dBm 5 GHz: 29 dBm
Power Consumption	9 W (Without PoE Out) 24.4 W (With PoE Out)
Power Method	DC power connector (12 V , 1 A)(connector included) Passive PoE injector (24 V , 0.6 A DC power adapter) (injector included): PoE/PoE+
PoE-out	Supports PoE-out
PoE power pins	1-2 (+) , 3-6 (-);4-5 (+) , 7-8 (-)
PoE Budget	15.4 W (PoE budget for two ports)
Weather Resistance	IP Rating: IP55
NDAA Complain	Yes
Ethernet Speed	100Mbps
Scenario Type	PTMP (Point-to-Multipoint)

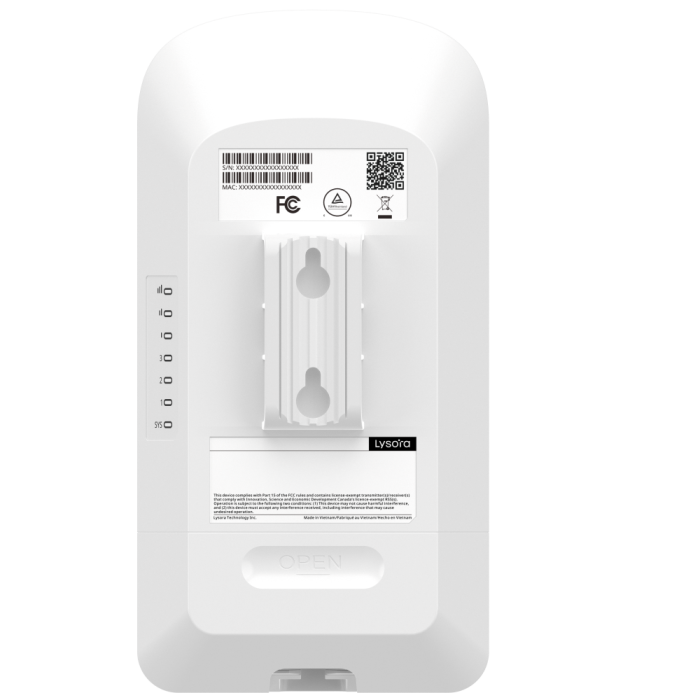

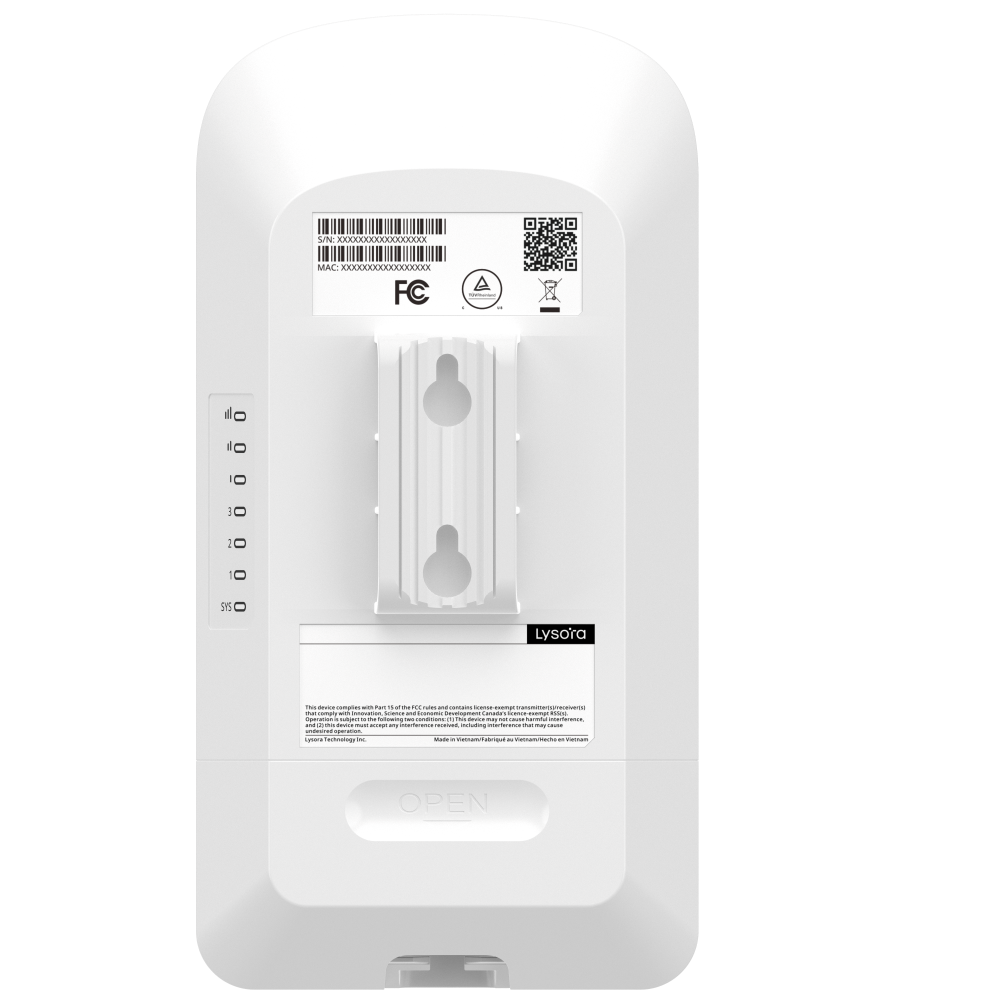

Mounting	Wall/Pole
Dimensions	103mm x 53.4 mm x 199 mm (4.06 in. x 2.1 in. x 7.83 in.) (excluding mounting bracket)
Weight	0.37 kg (0.82 lbs) (without packaging materials) 0.91 kg (2.01 lbs) (with packaging materials)

Download

Datasheet

No associated firmware documentation found.
