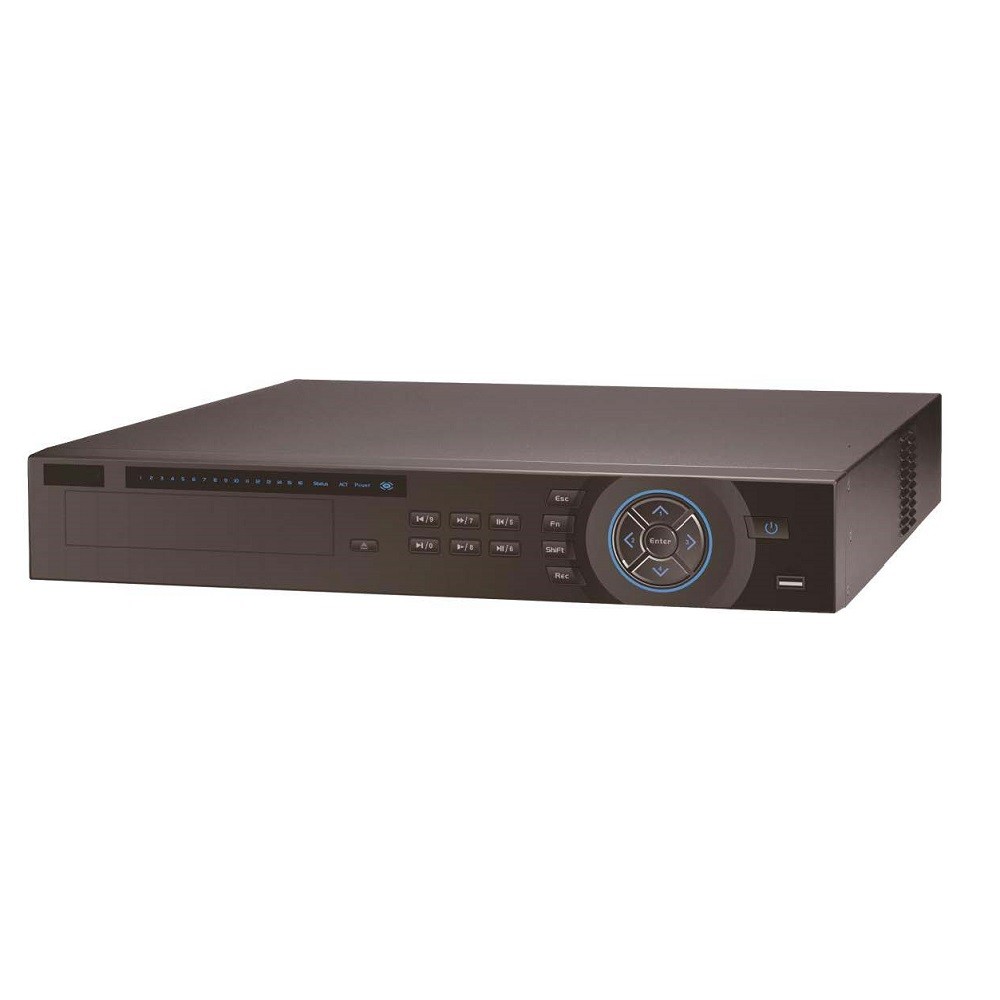

CVR704L-16 16 Channel 1080P 4HDD 1.5U HD-CVI DVR
Click to enlarge
WINIC

CVR704L-16 16 Channel 1080P 4HDD 1.5U HD-CVI DVR

16 Channel 1080P 4HDD 1.5U HD-CVI DVR

  • Supports HDCVI, Analog, and IP video inputs on all channels
  • Max 1080P Realtime live view and dual-stream H.264 compression
  • 4/8 channel synchronous playback with smart search and GRID interface
  • Multi-brand network camera compatibility, including Dahua, Axis, Bosch, Sony, and more
  • 1 HDMI/VGA/TV simultaneous output, 1 HDMI dedicated output
Add to wishlist
SKU: CVR704L-16 Categories: ,
Description

Product Overview

The CVR704L-16 is a 16-channel 1.5U HD-CVI Tribrid DVR designed for versatile surveillance applications. It supports HDCVI, Analog, and IP video input on all channels, enabling flexible deployment. The DVR provides 1080P real-time live view with dual-stream H.264 compression for smooth recording and efficient bandwidth use. Playback is enhanced with 4/8-channel synchronous view and a GRID interface with smart search. Storage is robust, with 4 SATA HDDs and 1 eSATA interface, expandable up to 16 TB each, and USB backup support. Advanced network and event management features include web viewer, CMS, DMSS mobile apps, motion detection, PTZ control, two-way audio, and trigger-based actions.

Key Features

  • Tribrid Video Input: Supports HDCVI, Analog, and IP on all 16 channels for flexible deployments
  • Full HD 1080P Monitoring: Realtime live view with dual-stream H.264 compression for smooth recording and bandwidth efficiency
  • Multi-Brand IP Compatibility: Works with Dahua, Axis, Bosch, Sony, Honeywell, Panasonic, and other third-party cameras
  • Synchronous Playback & Smart Search: 4/8 channel simultaneous playback with GRID interface, motion search, and time/date search
  • Robust Storage: 4 SATA HDDs up to 16TB each plus 1 eSATA for expanded storage, USB backup support
  • Advanced Network Features: Web viewer, CMS (DSS/PSS), DMSS mobile apps, HTTP/IPv4/IPv6, TCP/IP, RTSP, FTP, DDNS, and more
  • Comprehensive Event & Control: Motion detection, video loss alerts, PTZ control, two-way audio, privacy masking, and trigger-based actions



Key Specifications

  • Tribrid: Each channel supports HDCVI/Analog/IP Video input
  • 1HDMI/VGA/TV simultaneous video output,1 HDMI separate output
  • CVR704L-16:All channel Max 1080P
  • Up to 1080p realtime live view
  • H.264 dual-stream video compression
  • 4/8 channel synchronous realtime playback, GRID interface & smart search
  • Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech , and etc.
  • 3D intelligent positioning with Dahua PTZ dome camera
  • Support 4 SATA HDDs up to 16TB, 1 eSATA up to 16TB,3 USB2.0
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Additional information
Channel

Alarm Input

16 channel
Audio Input

4 channel

,

BNC
Audio Output

1 channel

,

BNC
Backup Mode

USB Device/eSATA Device/Internal SATA burner/Network
Display Interface

2 HDMI

,

1 VGA

,

1 TV
Display Resolution

1920× 1080

,

1280× 1024

,

1280× 720

,

1024× 768

,

800× 600
Ethernet

RJ-45 port (10/100M/1000M)
HDD Support

Main Processor

Embedded processor
Max. User Access

128 users
Multi-screen Display

1/4/8/9/16
Network Function

HTTP

,

IPv4/IPv6

,

TCP/IP

,

UPNP

,

RTSP

,

UDP

,

SMTP

,

NTP

,

DHCP

,

DNS

,

PPPOE

,

DDNS

,

FTP

,

IP Filter
Playback Function

Play

,

Pause

,

Stop

,

Rewind

,

Fast play

,

Slow play

,

Next file

,

Previous file

,

Next camera

,

Previous camera

,

Full screen

,

Repeat

,

Shuffle

,

Backup selection

,

Digital zoom
Record Rate

Main Stream: 1080P/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) Extra Stream CIF/QCIF(1~25/30fps)
Recording Bit Rate

48~8192Kb/s
Recording Compression

H.264/G.711
Recording Resolution

1080P(1920× 1080)/720P(1280× 720)/960H(960× 576/960× 480)/D1/4CIF( 704× 576/704× 480)/CIF(352× 288/352× 240)/QCIF(176× 144/176× 120)
Search Mode

Time/Date

,

MD & Exact search (accurate to second)
Two-way audio

1 channel input

,

1channel output

,

BNC
Video Detection

Motion Detection

,

MD Zones: 396(22× 18)

,

Video Loss & Camera Blank
Video Interface

16 channel
Power Supply

AC 100~240 V

,

50/60 Hz
Power Consumption

40W(without HDD)
Weight

6KG(without HDD)
Working Environment

-10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimensions

1.5U

,

440mm× 410mm×70mm
