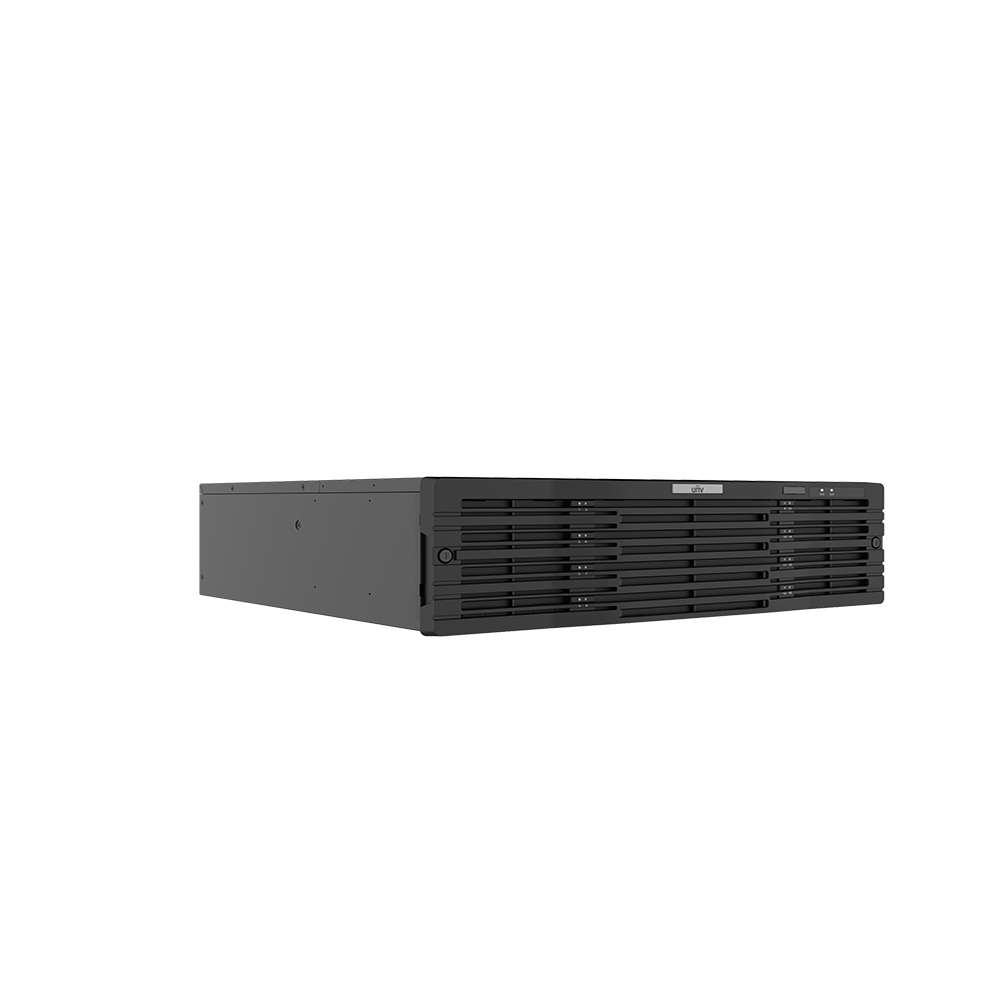

DEU1016-B 16 HDDs 3U Disk Enclosure Angle2

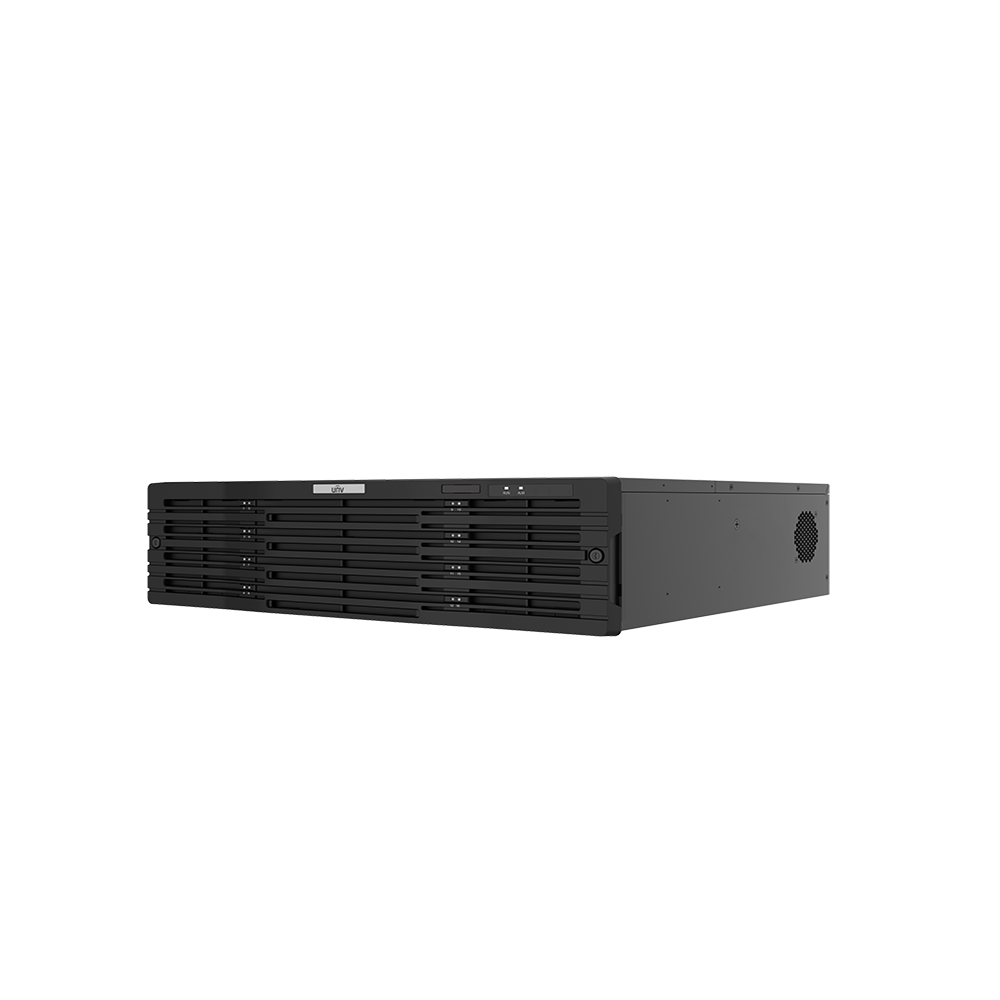

DEU1016-B 16 HDDs 3U Disk Enclosure Angle1

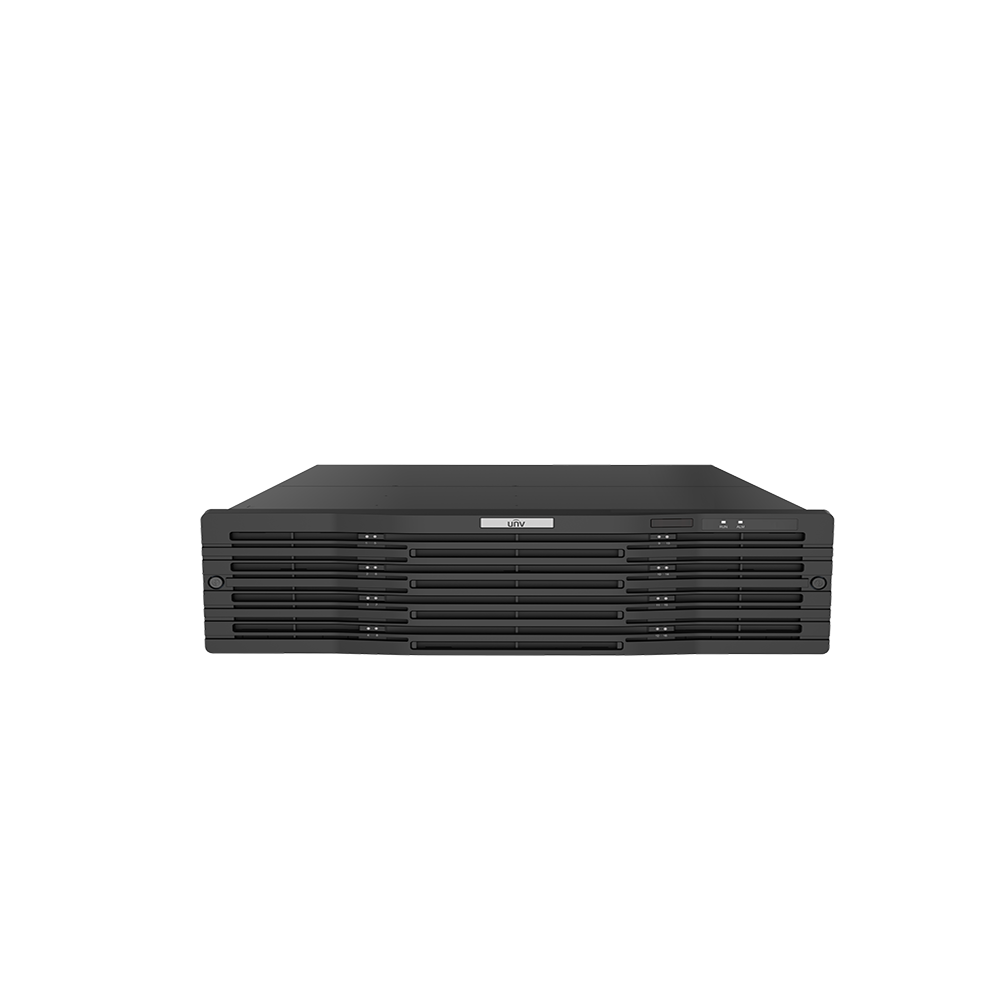

DEU1016-B 16 HDDs 3U Disk Enclosure
Click to enlarge
DEU1016-B 16 HDDs 3U Disk Enclosure Angle2
DEU1016-B 16 HDDs 3U Disk Enclosure Angle1
DEU1016-B 16 HDDs 3U Disk Enclosure
UNV

DEU1016-B 16 HDDs 3U Disk Enclosure

16 HDDs 3U Disk Enclosure

Add to wishlist
SKU: DEU1016-B Category:
Description
  • High density.
  • The innovative enclosure with 477mm depth and 3U height that holds up to 16 disks, is space-saving and applicable to the standard rack-mounted scenarios.
  • Power protection. Disk powered on sequentially during system startup, protection from impulse current.
Additional information
PoE

N/A
HDD Support

Capacity

Up to 16TB for each disk
miniSAS

1
RS232

1
Power Supply

AC 100～240V
Working Temperature

-10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉)
Working Humidity

5%~95% RH (non-condensing)
Power Consumption (With HDD)

< 160W(With 16 HDDs)
Weight (Without HDD)

< 10Kg (22lb)
Dimensions

482mm × 477mm× 131mm (19.0"×18.8"×5.1")
Height

3U
Download

Datasheet

No associated firmware documentation found.
