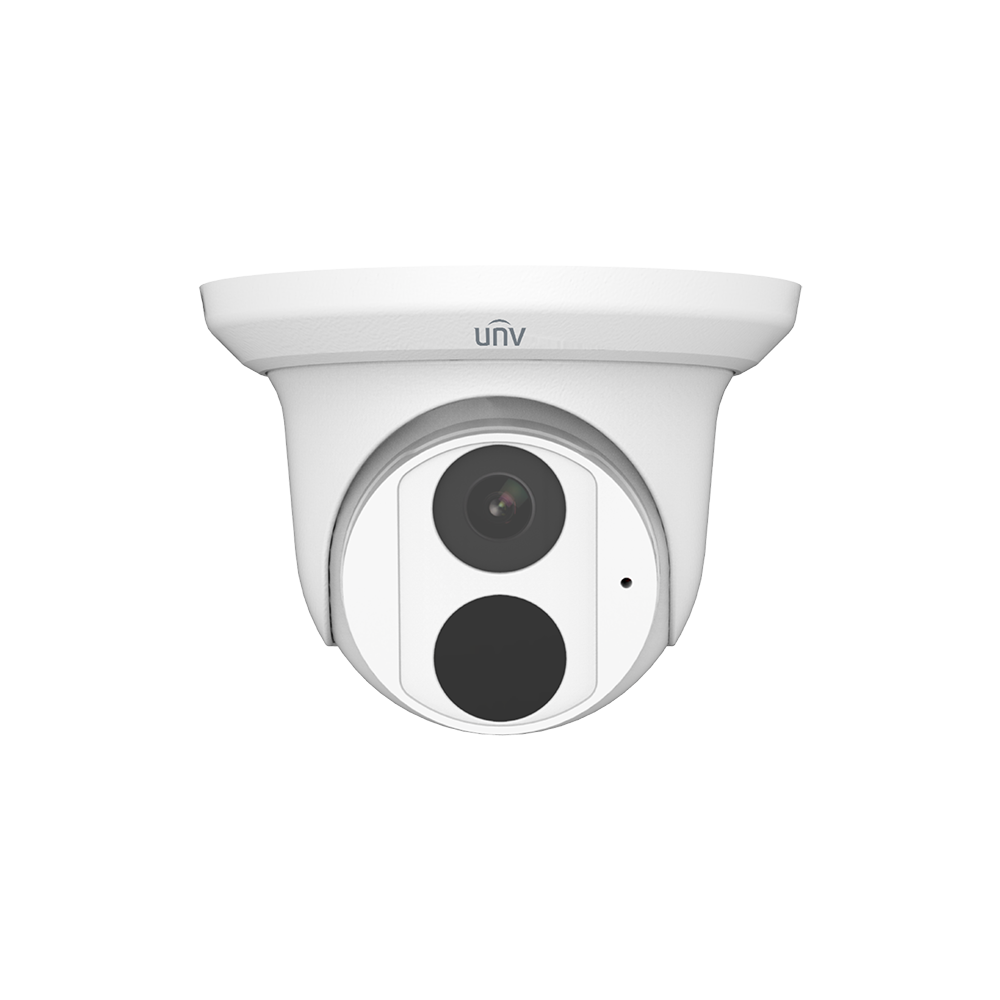

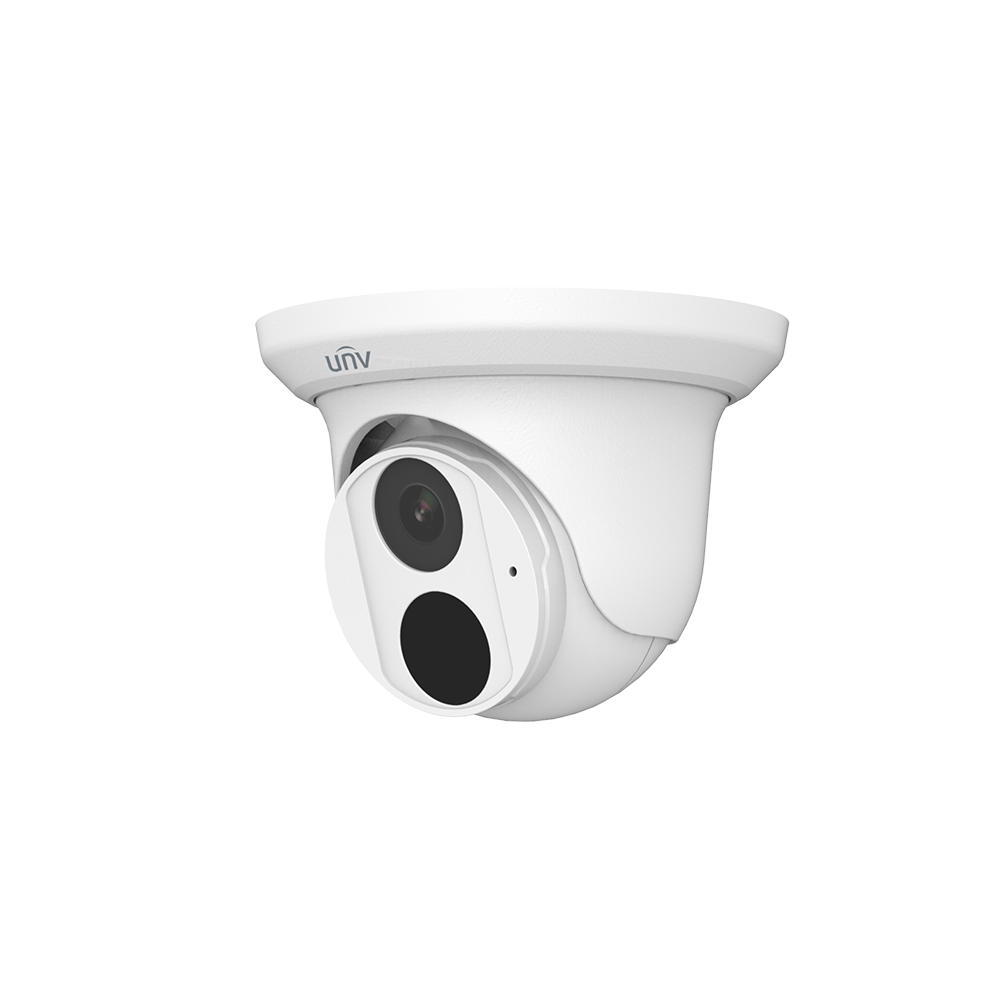

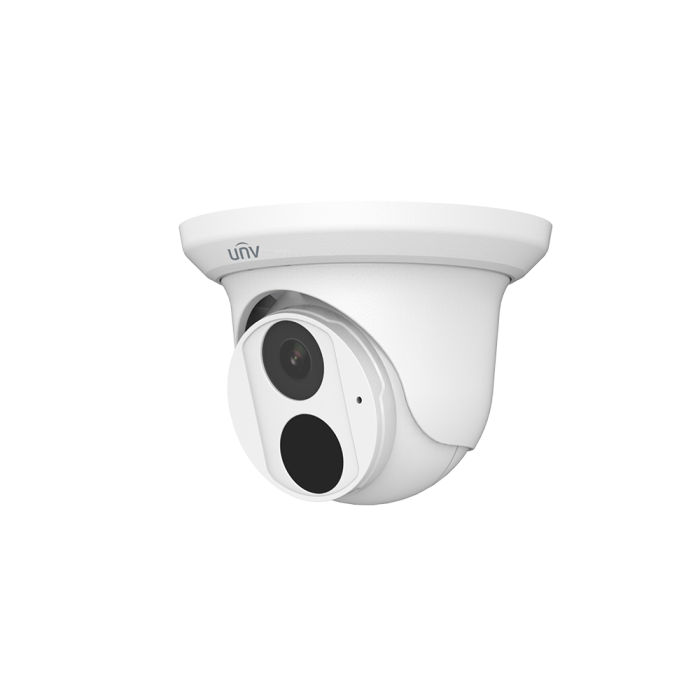

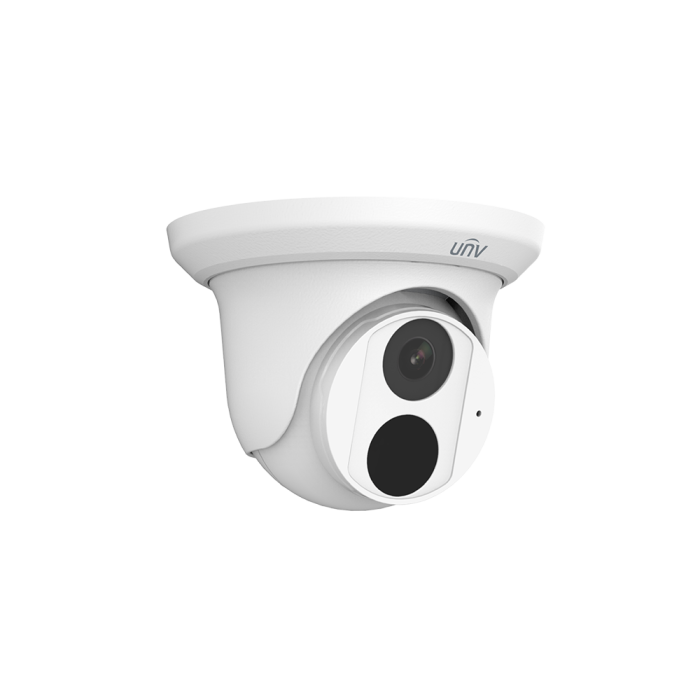

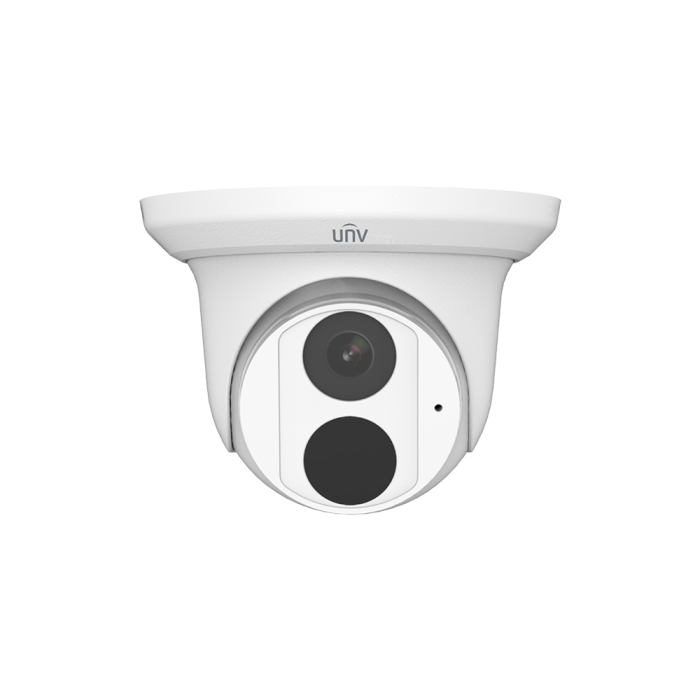

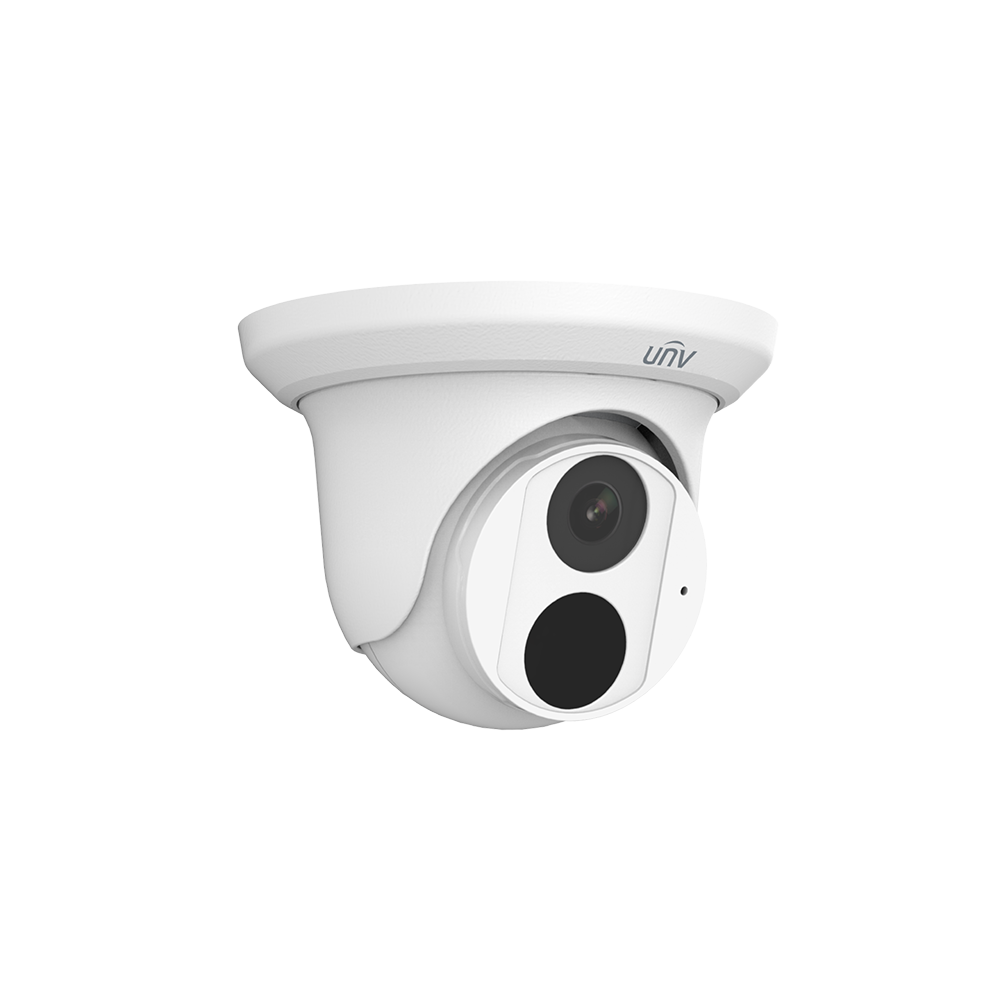

EC-T8F28M 8MP HD Fixed Eyeball Network Camera

8MP HD Fixed Eyeball Network Camera

SKU: EC-T8F28M Category: Lite Series

Description

High quality image with 8MP, 1/2.7″ CMOS sensor
8MP (3840 × 2160)@15 fps; 5MP (2880 × 1620)@25/20 fps; 4MP (2560 × 1440)@25/20 fps; 3MP (2304 × 1296)@30/25 fps; 2MP (1920 ×
1080)@30/25 fps
H.265, H.264, MJPEG
Built-in Mic
Smart IR, up to 30 m (98 ft) IR distance
Supports up to 512 GB Micro SD Card
IP67 protection
Support PoE power supply
3-Axis

Additional information

Camera Resolutions	8 MP
Sensor	1/2.7" CMOS
Lens Size	2.8mm
Lens Type	Fixed Lens
Camera Style	Eyeball
WDR	120 dB
Min. Illumination	Colour: 0.01 lux (F1.6 , AGC ON) 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual , 1 ~ 1/100000s
Adjustment Angle	Pan: 0° ~ 360° , Tilt: 0° ~ 75° , Rotate: 0° ~ 360°
S/N	>52 dB
IR On/Off Control	Auto/Manual
Iris	F2.0
Illumination Distance (IR)	30 m (98.4 ft)
Wavelength	850nm
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Video Bit Rate	128 Kbps to 6144 Kbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	Micro SD , up to 512GB
Network Storage	ANR , NAS (NFS)
Network Interface	1 × RJ45 10 M/100 M Base-TX Ethernet
Audio	Built-in Microphone
Power	DC 12V±25% , PoE (IEEE 802.3af) Power consumption: Max 7.0W
Power Interface	Ø5.5 mm coaxial power plug
Protection	IP67
Dimensions	Φ126 x 94mm (Φ5.0" x 3.7")
Weight	0.30kg (0.66lb)
Material	Metal + Plastic
Surge Protection	4 KV
